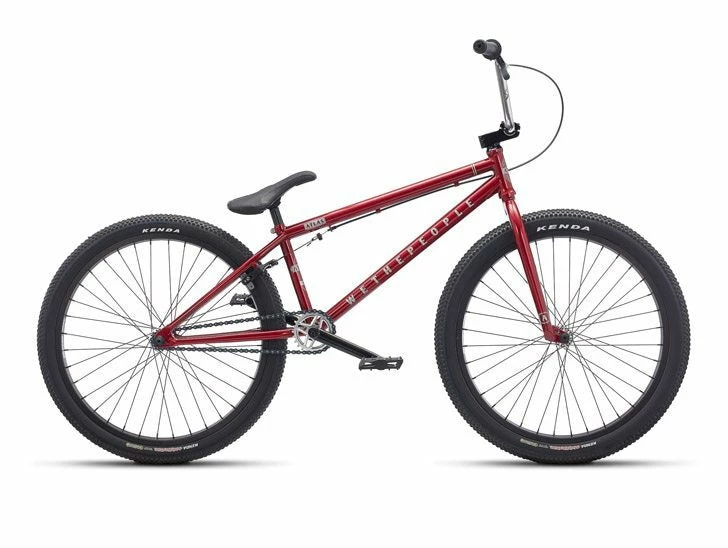

We The People Atlas 24″ BMX Bike 21.75″ TT – Matte Translucent Red

The Atlas is the perfect bike for those times when bigger is better. Our 24” wheeled BMX has been slowly refining year by year like a fine wine, and for 2018 the Atlas features a throwback to our racing ancestry. The Translucent Matt Red finish is completed with a racing inspired geometry, a V-brake and even a (Patrol) stem and 33t sprocket, allowing you to really put your foot down and get your sprint on. Weather you’re down the trails, at the pump track or just heading into the city, the Atlas is so much fun to ride, you’ll have hard time putting it down. GEOMETRY

• Top Tube Length:  21.75”
• Chain Stay Length: 15”
• Head Tube Angle: 74°
• Seat Tube Angle: 72.25°
• Bottom Bracket Height:12.25”
• Stand Over Height: 9.5”
• Bar Rise: 7“
• Bar Width: 28”
• Bar Back Sweep: 12°
• Bar Up Sweep: 3°

SPECIFICATIONS

• Frame: 4130 full crmo race inspired frame, tapered CS and SS
• Fork: WETHEPEOPLE “Atlas” fork, butted sanko tubing, cnc steerer
• Bars: WETHEPEOPLE “Atlas” bar, full 4130 crmo
• Grips: SALT “EX” grips
• Stem: WETHEPEOPLE “Patrol” cnc alloy top loading stem, 28mm rise, 53mm reach
• Headset: SALT “PRO” int. headset, sealed bearing
• Gyro: –
• Lever: SALT “Atlas” alloy v-brake lever
• Brakes: SALT “Atlas” alloy v-brake
• Cranks: SALTPLUS “PRO48” tubular 3pc crank crmo 175mm, 48 spline
• BB: SALTPLUS “EURO” 19mm, euro threaded, sealed bearing
• Pedals: ÉCLAT “Slash” nylon/fiberglass pedals
• Chain: SALT “AM” chain, 510h type
• Sprocket  WETHEPEOPLE “Patrol” 6061-T6 alloy, 33t cnc sprocket
• Driver: 14t cog, cassette driver, sealed bearing
• Front Hub: SALTPLUS “PRO” hub, sb, M6 female bolts, 36h
• Rear Hub:  SALTPLUS “PRO” cassette hub, sb, M6 female bolts, 36h
• Hubguards: –
• Front Rim: SALTPLUS “DB32” aero double wall rim, 36h
• Rear Rim: SALTPLUS “DB32” aero double wall rim, 36h
• Seat: WETHEPEOPLE “Atlas” slim padded pivotal seat
• Seat Post: SALT “AM” 27.2mm pivotal seat post, alloy
• Seat Clamp: SALT “AM” alloy seat clamp
• Tires: KENDA “Konversion” tires 1.95″ front & rear
• Pegs: –
• Weight: 11.86kg / 26.16lbs
