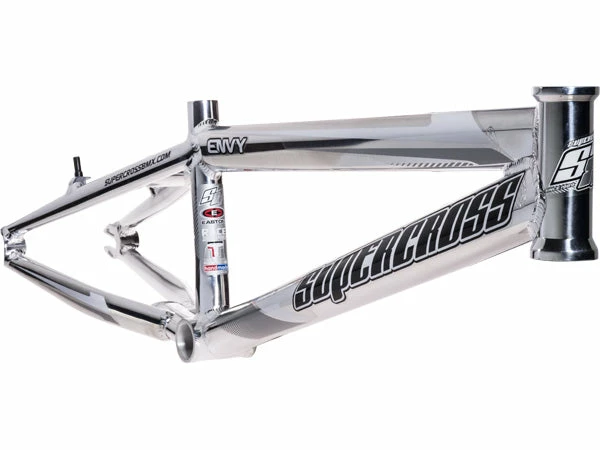

The Supercross Envy V3 Frame – New colors and decals for 2013 season. These frames are handbuilt from custom spaced Easton ULTRA LIGHT RACE 7005 Taperwall tubeset with race-proven geometry. The Supercross ENVY Pro frames start at only 2.75 lbs….that’s light!

NEW FEATURES FOR 2013:

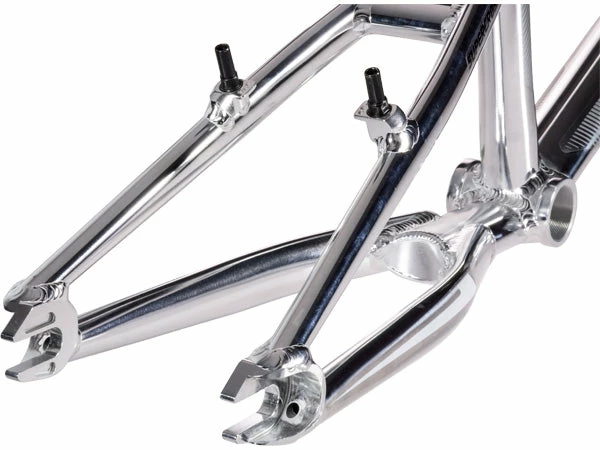

*New 15mm rear dropout with 10mm adapters included
*New butted and tapered chainstay and seatstays for improved power transfer and stiffness
*New Bulge butted seatmast for improved bottom bracket stiffness

NOTE: Mini thru Expert frames now come with 1 1/8″ headtube. Use a “step-done” headset for use with 1″ forks

CARRYOVER FEATURES:
*Integrated Campy style 45/45 headtube – requires Integrated headset with 45/45 angle
*CNC Machined Euro bottom bracket shell
*Backside CBC’d 3D shaped dropouts
*Exclusive custom-butted and shaped taperwall downtube
*Flipped teardrop taperwall toptube
*Tapered chain and seat stays

SEAT POST / SEAT CLAMP SPECS:

Mini – Expert: 22.2mm post, 1″ clamp (25.4mm)
Expert XL – Expert XXL: 25.4mm post, 1 1/8″ clamp (28.6mm)

All Pro Frames: 27.2mm, 1 1/4″ clamp (31.8mm)

USE: Race

MATERIAL: 7005 aluminum

HEADSET STYLE: 45°/45° Integrated

BRAKE MOUNTS: V-Brake

BB SHELL: Euro

TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle

GEOMETRY SPECS:

SIZE	TT	CS	HEADSET	HA	SA	BB HEIGHT	WEIGHT
MINI	17.5″	12.25″	1″- 1 1/8″	72°	—	10.5″	2lbs 1oz
JUNIOR	18.5″	13.2″	1″- 1 1/8″	73.5°	—	10.75″	2lbs 2oz
JUNIOR PLUS	19″	13.2″	1″- 1 1/8″	73.5°	—	10.75″	2lbs 3oz
EXPERT	19.5″	13.75″	1″- 1 1/8″	74.5°	—	10.8″	2lbs 5oz
EXPERT XL	20″	14″	1 1/8″	74.5°	—	11.35″	2lbs 6.5oz
EXPERT XXL	21″	14″	1 1/8″	74.5°	—	11.7″	2lbs 8.8oz
PRO	20.5″	15″	1 1/8″	74.5°	—	11.65″	2lbs 12oz
PRO PLUS	20.75″	15″	1 1/8″	74.5°	—	11.65″	2lbs 13oz
PRO XL	21.25″	15.25″	1 1/8″	74.5°	—	11.65″	2lbs 14.8oz
PRO XXL	21.75″	15.25″	1 1/8″	74.5°	—	11.65″	2lbs 15.8oz
JUNIOR 24	19.5″	14.4″	1″	73.5°	—	11.25″	2lbs 2oz
EXPERT 24	20.5″	15″	1″	73.5°	—	11.5″	2lbs 8.8oz
PRO SHORT 24	20.5″	14.75″	1 1/8″	73.5°	—	11.65″	2lbs 13oz
PRO 24	21.5″	15.35″	1 1/8″	73.5°	—	11.65″	2lbs 15.8oz
PRO XL 24	22″	15.35	1 1/8″	73.5°	—	11.65″	3lbs 1.2oz

Frame Size	Mini, Junior, Junior 24", Junior Plus, Expert, Expert 24", Expert XL, Expert XXL, Pro, Pro 24", Pro Plus, Pro Short 24", Pro XL, Pro XL 24", Pro XXL
