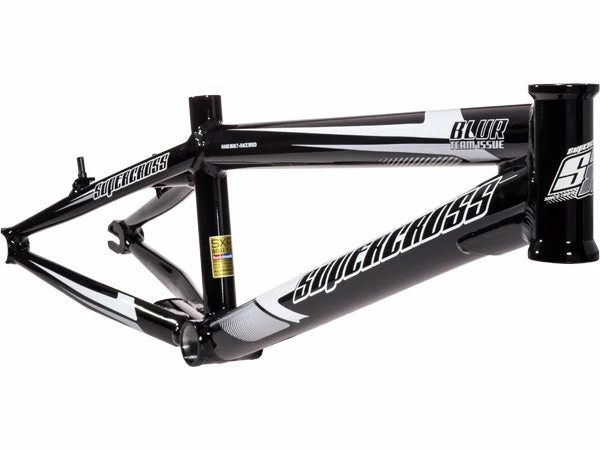

Supercross 2013 Blur BMX Race Frame-Gloss Black

The Supercross BLUR Race Frame is a full seamless 6061 T-6 Aluminum race frame that is welded in fixture, aligned and then aged to a T-4, checked for alignment and then continue aged to a T-6 hardness. The BLUR uses the same World Championship Winning Geometry found on all of their race frames including the Supercross ENVY, just at a more affordable price.

NEW FEATURES FOR 2013 MODEL

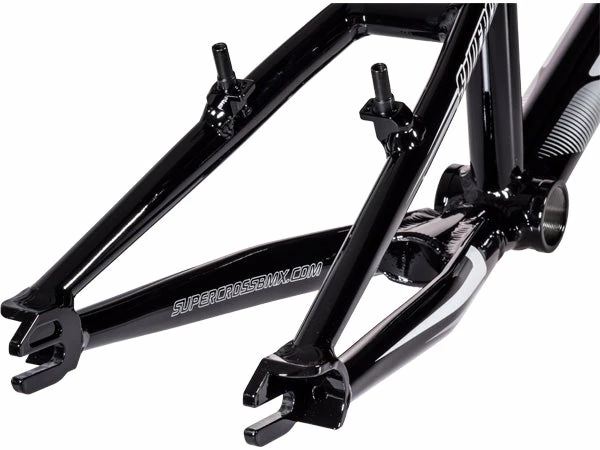

• New Custom Butted and Shaped Seat Stays and Chain Stays
• New Smaller and lighter dropouts
• Enhanced custom top and down tube shaping
• Same Supercross Geometry as the Supercross ENVY
• New Graphics and Colors for the 2013 Models
• All frames now feature the Campy Integrated 45/45 headtube

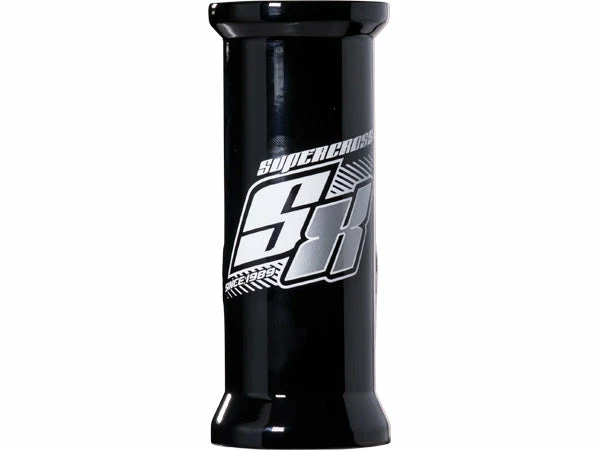

NOTE: All frame sizes have a 1 1/8″ integrated headtube. If you are using a 1″ fork and stem for your Mini, Junior, Expert or Expert XL then you will need to use an Integrated “step-down” headset. “Step-Down” integrated headsets feature 1 1/8″ bearings but use a 1″ sleeve so that you can use a 1″ fork. SINZ, ACS and Speedline offer them and they are available under our headset section.

GEOMETRY

Supercross 2013 Blur BMX Race Frame-Gloss Black Geometry Chart

SIZE	TT	REAR CS	BB	HA	PS	CLAMP	HEADSET	WEIGHT
SIZE: Mini	TT: 17.5	REAR CS: 12.25″	BB: 10.5″	HA: 72º	PS: 22.2	CLAMP: 25.4	HEADSET: 1″ – 1 1/8″ Int	WEIGHT: 2lbs 7oz
SIZE: Junior	TT: 18.5	REAR CS: 13.2″	BB: 10.75″	HA: 73.5º	PS: 22.2	CLAMP: 25.4	HEADSET: 1″ – 1 1/8″ Int	WEIGHT: 2lbs 9oz
SIZE: Expert	TT: 19.5	REAR CS: 13.75″	BB: 10.8″	HA: 74.5º	PS: 22.2	CLAMP: 25.4	HEADSET: 1″ – 1 1/8″ Int	WEIGHT: 2lbs 10oz
SIZE: Expert XL	TT: 20.0	REAR CS: 14″	BB: 11.35″	HA: 74.5º	PS: 22.2	CLAMP: 25.4	HEADSET: 1″ – 1 1/8″ Int	WEIGHT: 2lbs 12oz
SIZE: Pro	TT: 20.5	REAR CS: 15″	BB: 11.65″	HA: 74.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 4oz
SIZE: Pro Plus	TT: 20.75	REAR CS: 15″	BB: 11.65″	HA: 74.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 5oz
SIZE: Pro XL	TT: 21.25	REAR CS: 15.25″	BB: 11.65″	HA: 74.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 6oz
SIZE: Pro XXL	TT: 21.75	REAR CS: 15.25″	BB: 11.65″	HA: 74.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 7oz
SIZE: 24″ Pro	TT: 21.5	REAR CS: 15.35″	BB: 11.65″	HA: 73.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 6oz
SIZE: 24″ Pro XL	TT: 22.0	REAR CS: 15.35″	BB: 11.65″	HA: 73.5º	PS: 27.2	CLAMP: 31.9	HEADSET: 1 1/8″ Int	WEIGHT: 3lbs 7oz
