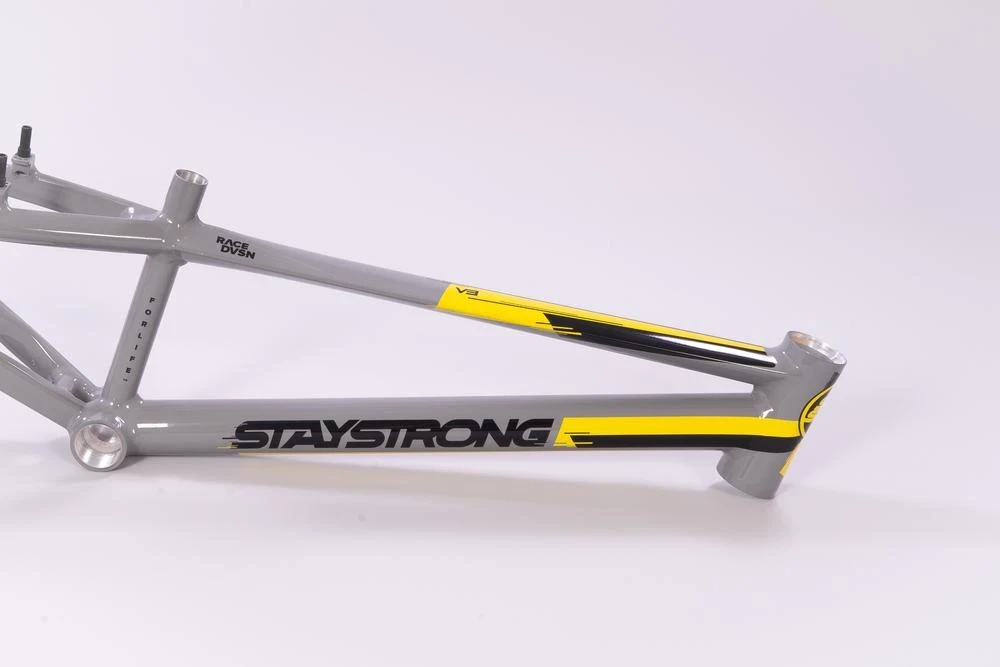

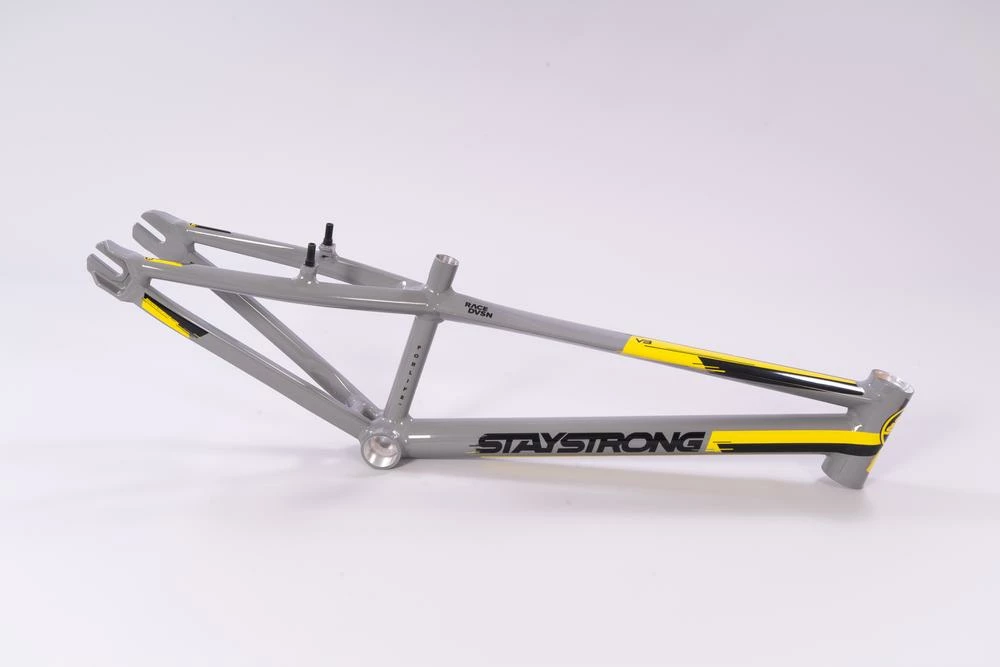

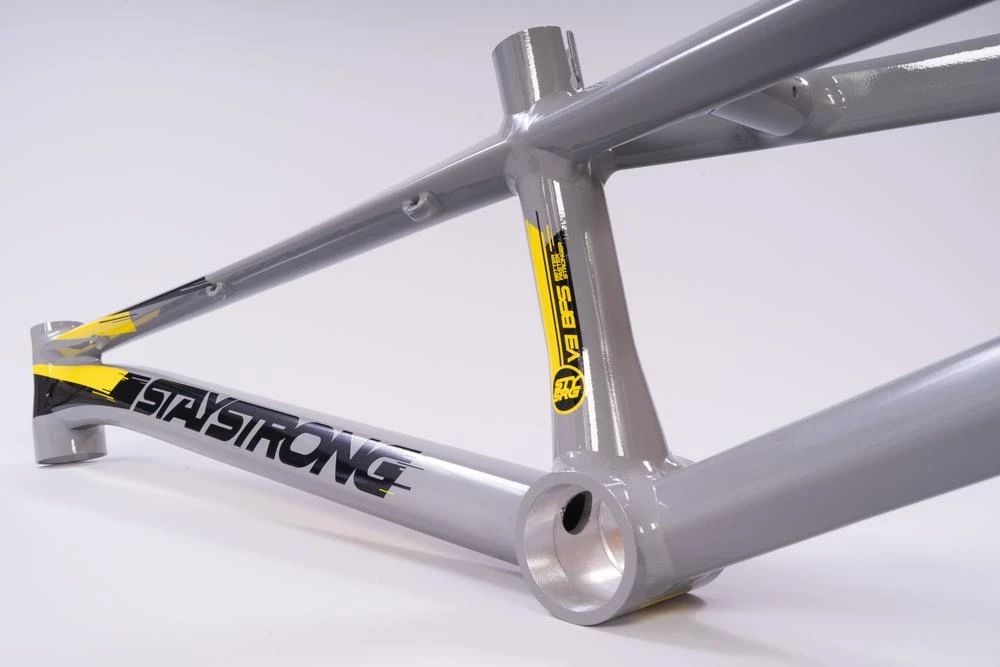

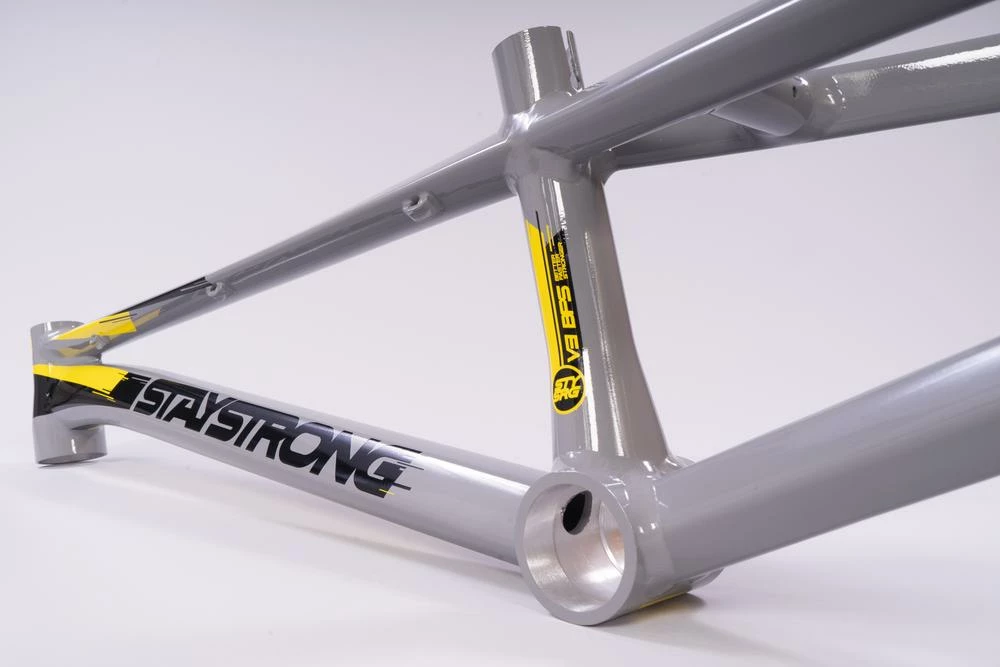

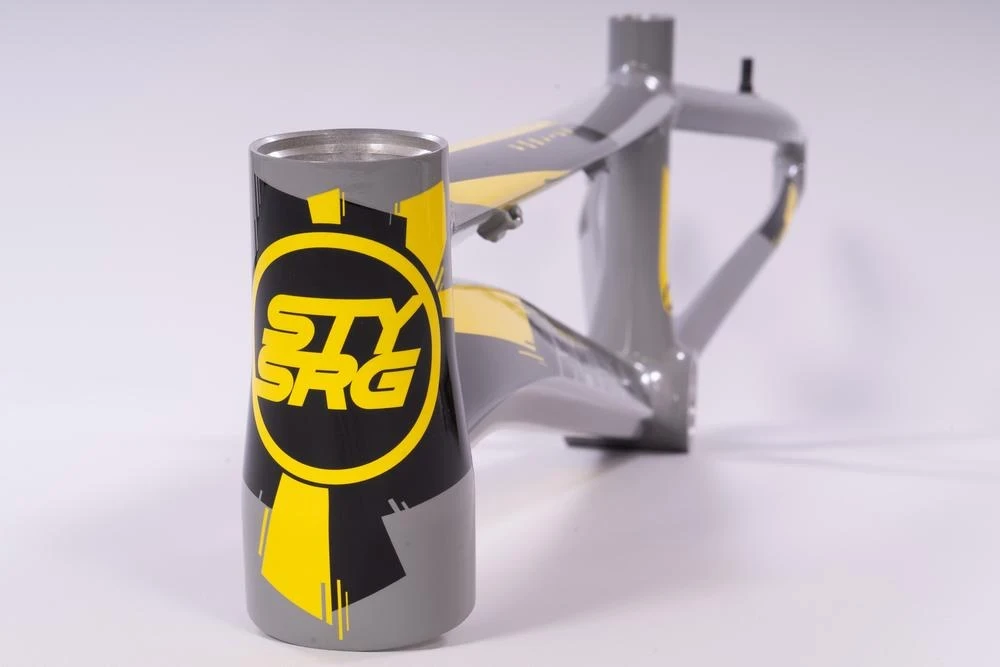

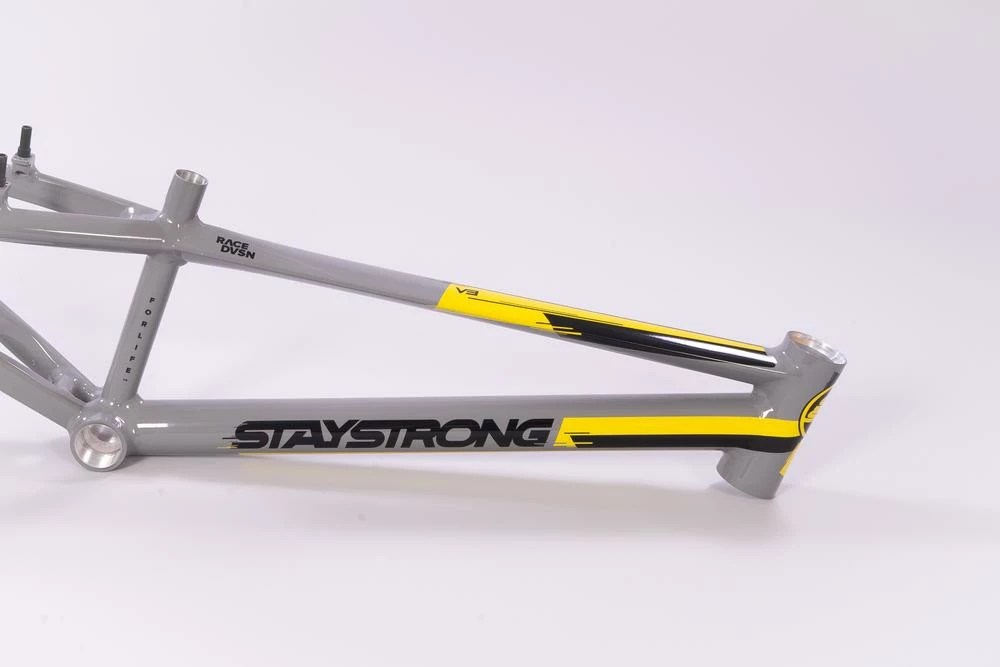

Stay Strong For Life V3 BMX Race Frame-Grey

Stay Strong For Life V3 BMX Race Frame-Grey

$93.99

SKU: stay-strong-4473586876488 Categories: CLOSEOUT ZONE, FRAMES, Race Frames Tags: 26380828744in-stock, BMX Parts, Bmx-frames, Bmx-frames-race, Bmx-race-frames, Frame-size-mini, Frame-size-pro-xxxxl, Location_Main Warehouse

Shop with Zero Worries
Online assistance, always just a message away.
Quick responses, top-notch service.
Shop with ease, buy with confidence.

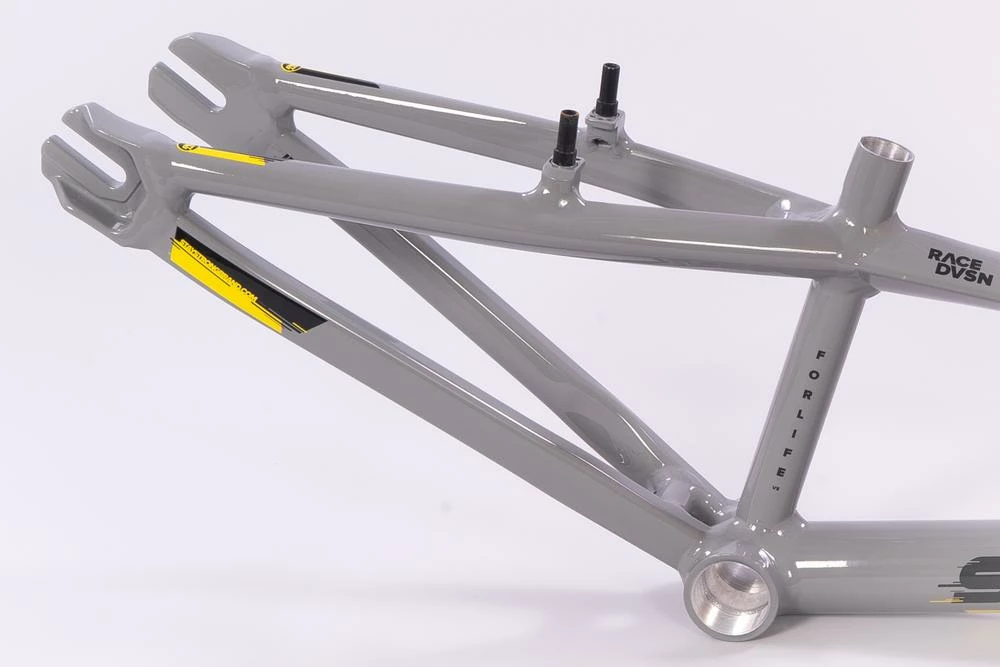

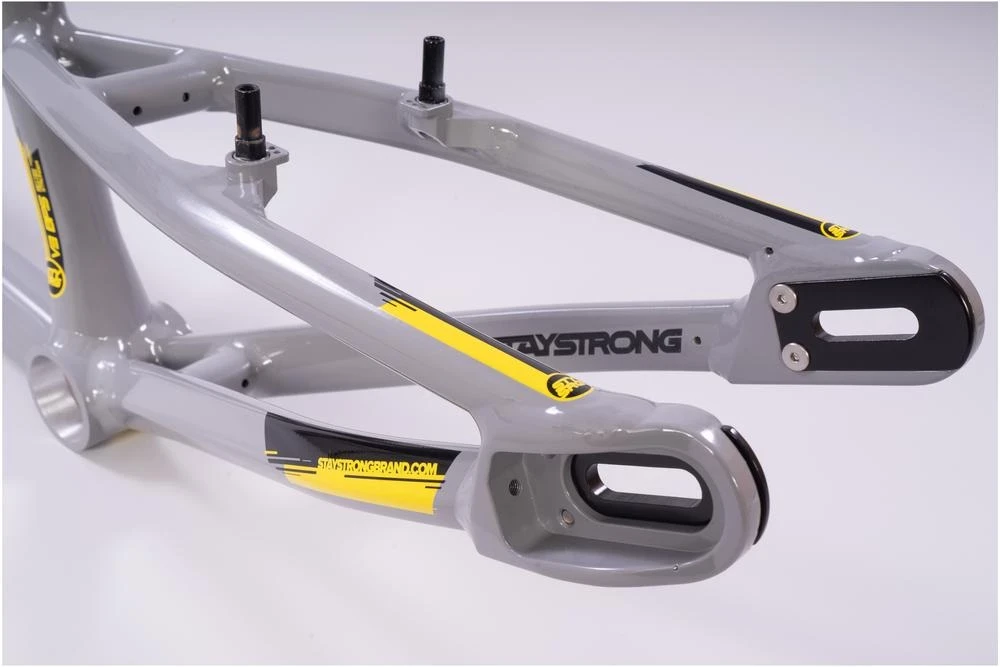

The Stay Strong For Life V3 BMX Race Frame-Grey is a full evolution from the V2 and V1 race frames. It carries over the high-level of construction and race-winning DNA of its forebears, but with an all-new frame geometry resulting in greater stiffness and rideability while lowering the overall weight. The Mini through Expert XL run a 22.2mm seat post and have open 10mm rear dropouts. The larger sizes (Pro on up) all run a 31.6mm seat posts and have closed 20mm rear dropouts with 10mm and 15mm adapters and integrated chain tensioners. The frame is set up for a V-brakes but is of course capable of running disc brakes if using an adapter. This frame is engineered to the highest standards and features smooth precision welds with extra butting throughout. The frame shape is nice and low to keep up the most efficient level of power transfer.

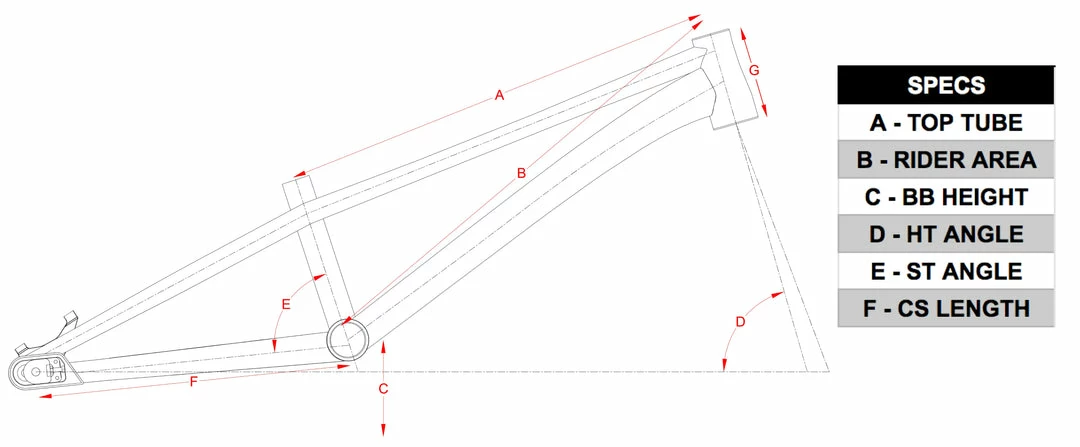

Stay Strong For Live V3 Specification Diagram

FRAME SPECIFICATION

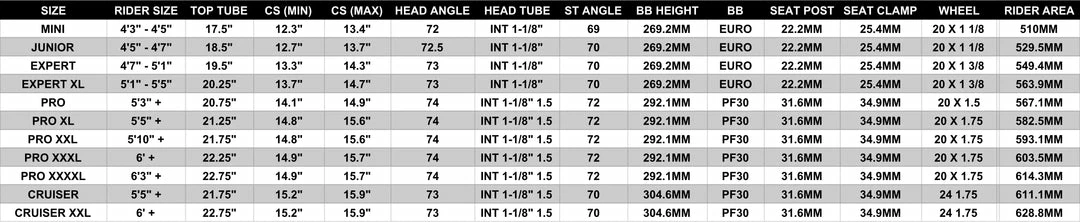

Stay Strong Frame Specification Chart
Size	Top Tube	CS (Min)	CS (Max)	Head Angle	Heat Tube	ST Angle	BB Height	BB	Seat Post	Seat Clamp	Rider Area
Size: Mini	Top Tube: 17.5″	CS (Min): 12.3″	CS (Max): 13.4″	Head Angle: 72	Heat Tube: INT 1-1/8″	ST Angle: 69	BB Height: 269.2mm	BB: EURO	Seat Post: 22.2mm	Seat Clamp: 25.4mm	Rider Area: 510mm
Size: Junior	Top Tube: 18.5″	CS (Min): 12.7″	CS (Max): 13.7″	Head Angle: 72.5	Heat Tube: INT 1-1/8″	ST Angle:70	BB Height: 269.2mm	BB: EURO	Seat Post: 22.2mm	Seat Clamp: 25.4mm	Rider Area: 529.5mm
Size: Expert	Top Tube: 19.5″	CS (Min): 13.3″	CS (Max): 14.3″	Head Angle: 73	Heat Tube: INT 1-1/8″	ST Angle: 70	BB Height: 269.2mm	BB: EURO	Seat Post: 22.2mm	Seat Clamp: 25.4mm	Rider Area: 549.4mm
Size: Expert XL	Top Tube: 20.25″	CS (Min): 13.7″	CS (Max): 14.7″	Head Angle: 73	Heat Tube: INT 1-1/8″	ST Angle: 70	BB Height: 269.2mm	BB: EURO	Seat Post: 22.2mm	Seat Clamp: 25.4mm	Rider Area: 563.9mm
Size: Pro	Top Tube: 20.75″	CS (Min): 14.1″	CS (Max): 14.9″	Head Angle: 74	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 72	BB Height: 292.1mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 567.1mm
Size: Pro XL	Top Tube: 21.25″	CS (Min): 14.8″	CS (Max): 15.6″	Head Angle: 74	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 72	BB Height: 292.1mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 582.5mm
Size: Pro XXL	Top Tube: 21.75″	CS (Min): 14.8″	CS (Max): 15.6″	Head Angle: 74	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 72	BB Height: 292.1mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 593.1mm
Size: Pro XXXL	Top Tube: 22.25″	CS (Min): 14.9″	CS (Max): 15.7″	Head Angle: 74	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 72	BB Height: 292.1mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 603.5mm
Size: Pro XXXXL	Top Tube: 22.75″	CS (Min): 14.9″	CS (Max): 15.7	Head Angle: 74	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 72	BB Height: 292.1mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 614.3mm
Size: Cruiser	Top Tube: 21.75″	CS (Min): 15.2″	CS (Max): 15.9″	Head Angle: 73	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 70	BB Height: 304.6mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 611.1mm
Size: Cruiser XXL	Top Tube: 22.75″	CS (Min): 15.2″	CS (Max): 15.9″	Head Angle: 73	Heat Tube: INT 1-1/8″ 1.5	ST Angle: 70	BB Height: 304.6mm	BB: PF30	Seat Post: 31.6mm	Seat Clamp: 34.9mm	Rider Area: 628.8mm
