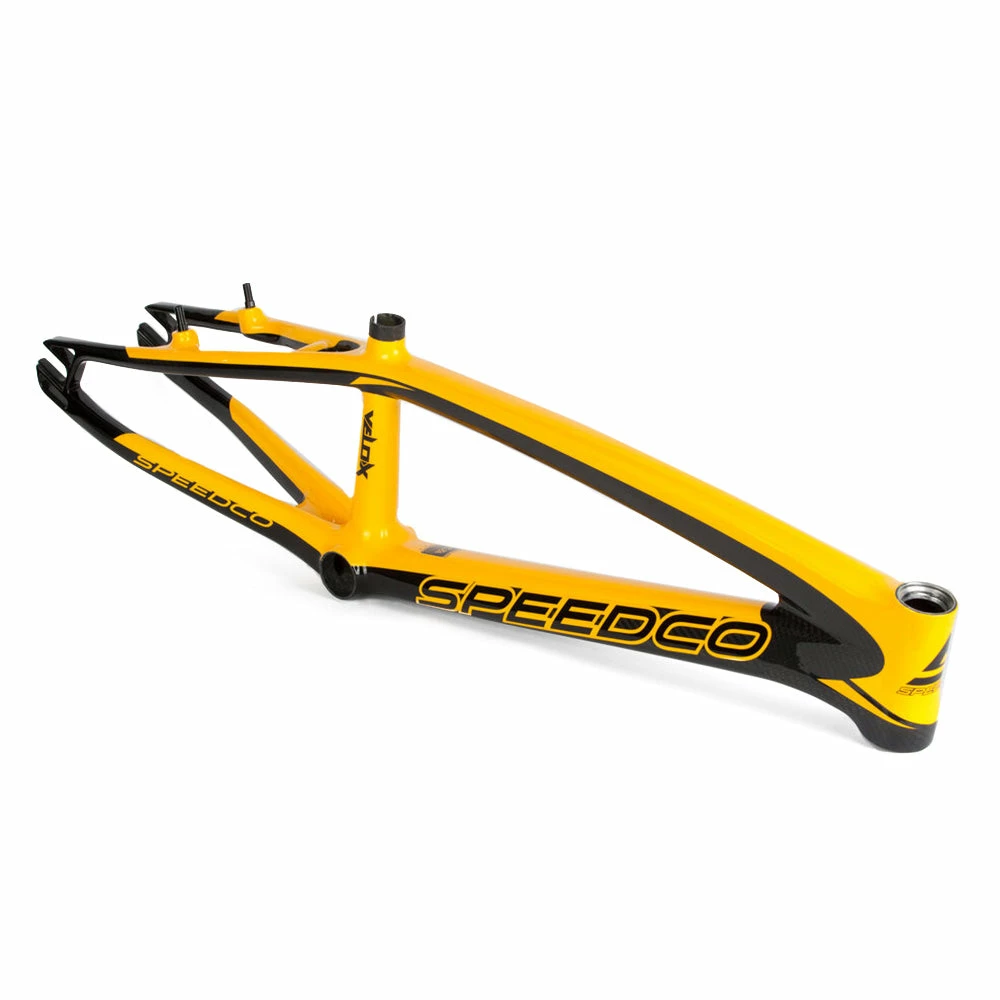

SPEEDCO Velox V2 Carbon Frame – Gloss Yellow/Black FRAMES

The Speedco Bicycles Velox v2 Carbon Fiber Race Frames feature T700 Toray carbon fiber, the highest strength carbon for BMX frames. The use of this material allows the Velox to maximize rigidity and strength while keeping it one of the lightest race frames on the market today. The Speedco Velox delivers 3 new sizes for the v2 model, including the Pro XL-L and Pro XXL with an extended 15.25″ rear chainstay as well as the addition of a 22″ top tube Pro XXXL.

YOUTH FEATURES (JUNIOR – EXPERT XL)

• Head Tube: The Youth frames use a standard integrated head-tube because the most crucial aspect of the front-end for a rider of this size is a light weight fork. The standard integrated head-tube accommodates your choice of a 1-1/8” or 1” steerer fork spec to keep the front end as light as you’d like.
• Bottom Bracket: The Youth models utilize a 68mm euro spec BB shell, a much smaller shell than what the Velox Pro frames use. The euro shell best accommodates popular cranks in the marketplace for riders of this size, and flows well with the smaller down-tubes used on these models. The Junior’s down-tube tapers to 50mm at the BB junction, while the Expert and Expert XL taper to 65mm – every size taking into account the rate of force applied by riders of varying sizes and weights.
• Drop Out: The Youth frames have a super clean 10mm drop-out unlike the more complicated system utilized by the Pro frames. While the larger rider who uses a Pro model will benefit from the 15 or 20mm axle compatibility and the integrated chain tension system, the young bucks benefit more from the lighter 10mm straight system on the Youth sizes.
• Internal cable: We have an internally routed brake cable for an extra clean look, but have also used a small tube through the top-tube so you don’t have to fish your cable through the frame. You won’t need to split your cable either, just slide it in with the full housing and you’re good to go.

PRO FEATURES (PRO AND LARGER)

• BB86: There are 3 popular bottom bracket standards for BMX – euro, BB30, and BB86. A euro is a threaded BB, the shell is 68mm wide and it uses 24mm (92mm total) of outboard bearings and a 24mm crank spindle. A BB30 is similar, 68mm shell but promotes a larger crank spindle (30mm) therefore a larger spindle to flex the same narrow bottom bracket junction. The Velox carbon uses a BB86 which is a 86mm BB shell and press-fit bearings that equal 4mm added to the 86mm shell (92mm total) while using a 24mm spindle. The advantage to our BB is the wider down-tube and chain-stay described above. Rigidity is key for first straight pull and accelerating out of turns, while a flimsy frame will just get you cut off out of the gate.
• 10/15/20mm dropout: The dropout on the Velox is all about efficiency. With an integrated chain tensioner through the front of the dropout, the need to over-tighten your wheel has been eliminated. Each dropout uses two flex-free 4mm adapters to insure your wheel isn’t gonna move regardless of how many horses you’re putting down first pedal.
• Tapered head tube: The new standard for high-end race frames is a tapered head tube. A tapered head tube uses a 1-1/8” top bearing and a 1.5” bottom bearing and allows us to use a fork both lighter and stronger than ever before.
• Internal cable: We have an internally routed brake cable for an extra clean look, but have also used a small tube through the top-tube so you don’t have to fish your cable through the frame. You won’t need to split your cable either, just slide it in with the full housing and you’re good to go.

GEOMETRY

SPEEDCO Velox v2 Carbon Frame – Gloss Yellow/Black Geometry

SIZE	TT	BB HEIGHT	REAR CENTER	ST ANGLE	HT ANGLE	CLAMP	POST	WEIGHT
SIZE: Junior	TT: 18.5	BB HEIGHT: 10.6″	REAR CENTER: 13.5″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 1.95lbs
SIZE: Expert	TT: 19.25″	BB HEIGHT: 11″	REAR CENTER: 14″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2lbs
SIZE: Expert XL	TT: 20″	BB HEIGHT: 11″	REAR CENTER: 14″	ST ANGLE: 70°	HT ANGLE: 73°	CLAMP: 25.4	POST: 22.2	WEIGHT: 2.1lbs
SIZE: Pro 20″	TT: 20.5″	BB HEIGHT: 11.5″	REAR CENTER: 14.75″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 2.6lbs
SIZE: Pro XL-L 20″	TT: 21″	BB HEIGHT: 11.5″	REAR CENTER: 15.2″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 2.67lbs
SIZE: Pro XXL 20″	TT: 21.75″	BB HEIGHT: 11.5″	REAR CENTER: 15.2″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 2.72lbs
SIZE: Pro XXXL 20″	TT: 22″	BB HEIGHT: 11.5″	REAR CENTER: 15.2″	ST ANGLE: 72°	HT ANGLE: 74°	CLAMP: 31.8	POST: 27.2	WEIGHT: 2.80lbs
SIZE: Pro 24″	TT: 21″	BB HEIGHT: 12″	REAR CENTER: 15.4″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 31.8	POST: 27.2	WEIGHT: 2.9lbs
SIZE: Pro XL 24″	TT: 21.75″	BB HEIGHT: 12″	REAR CENTER: 15.4″	ST ANGLE: 69.5°	HT ANGLE: 73°	CLAMP: 31.8	POST: 27.2	WEIGHT:
