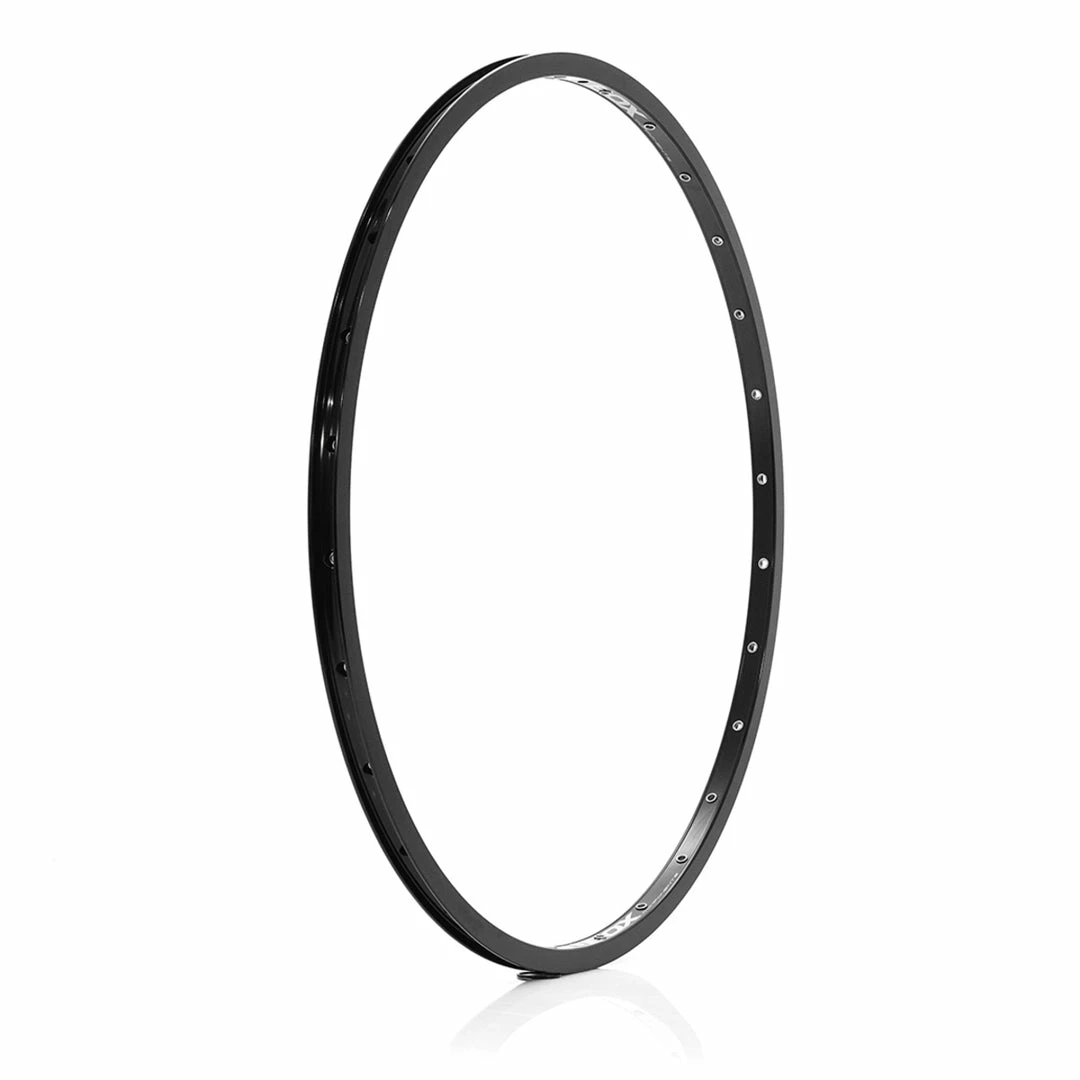

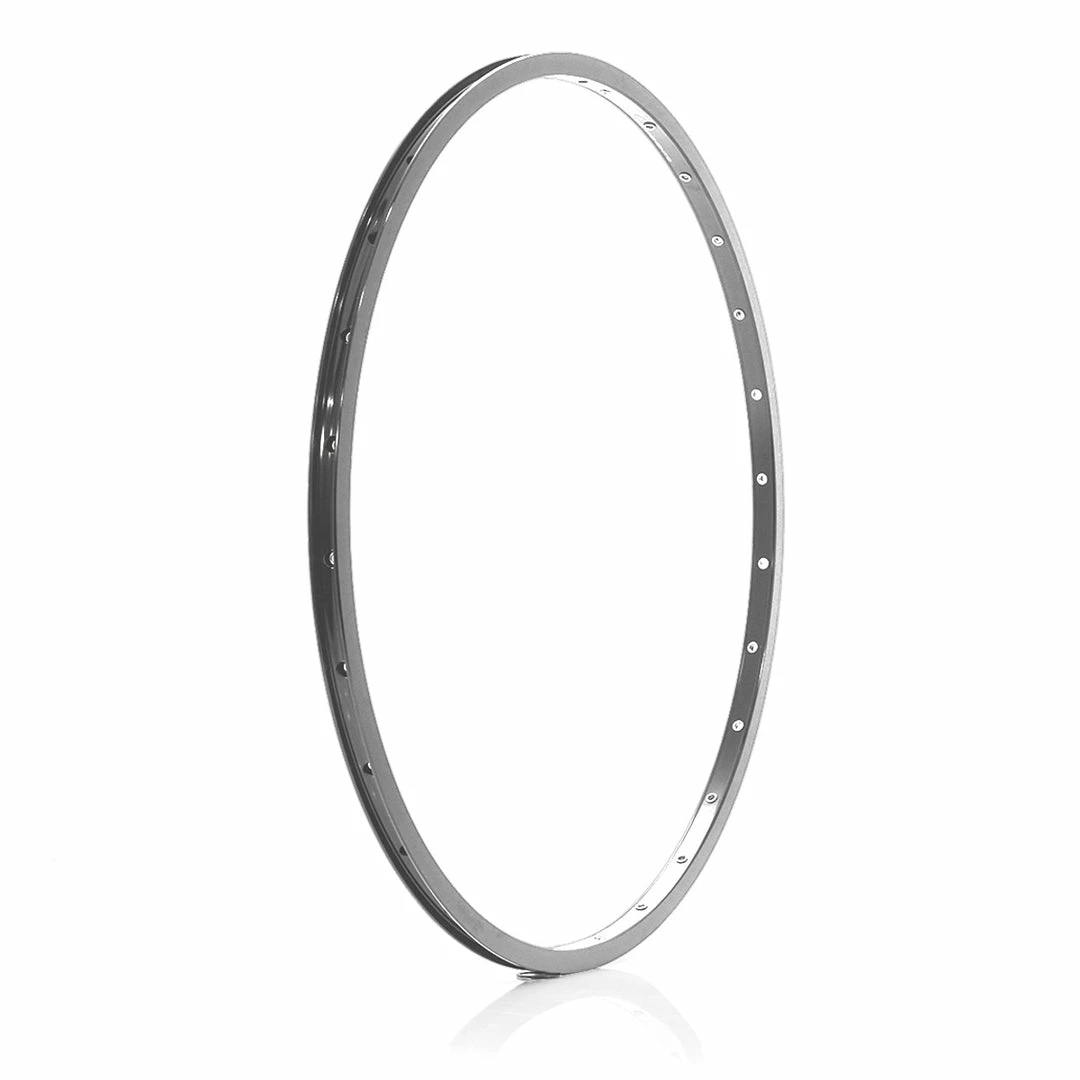

Rims Box One 520 Rim Rear-28H-24×1 1/8″

The Box One 520 Rim Rear-28H-24×1 1/8″ is as low-profile as it gets. All the better to be lightweight and speedy. Featuring double walled aluminum, eyeleted construction. This rim does have a sidewall braking surface, so it can and should be used on the rear of your bike.

FEATURES

• Optimized Internal Geometry
• Presta Valve Hole
• Machined Brake Track
• Stainless Steel Eyelets
• Brake (Rear) and Brake-Less (Front) Profiles
• Low Profile Design

COMPATIBILITY

• Box One XS Mini Carbon 1″ alloy steerer 20″ x 10mm fork Black
• Box One Harmonic Expert Hubset 28h Black
• Box One X5 Fork with 1-1/8″ Steerer Tube
• Box One Stealth Expert 10mm Front Hub 28h Black
• Box One Stealth Expert 10mm Rear Hub 28h Black

SPECIFICATIONS

• WEIGHT: 343g
• HOLE DRILLING: 28
• INTERNAL RIM WIDTH: 12.5mm
• EXTERNAL RIM WIDTH: 18mm
• RIM HEIGHT: 14.5mm
• ERD: 512
• MATERIAL: 6061 Aluminum
• BEAD DIAMETER: 507mm
