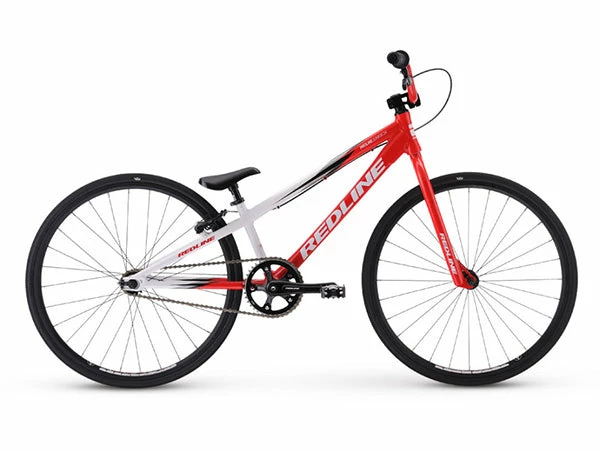

Redline Proline BMX Bike-Junior 24″-Red RACE BIKES

For the small rider and looking to jump in the cruiser class. The New Proline Junior 24 uses our Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs, and 100% Chromoly butted and tapered race fork for performance and value that is unbeatable.

KEY FEATURES

• Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
• RL Mini/JR Fork 100% Full Chromo Steerer with Tapered Legs
• Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
• Redline Microline 3pc, Cranks
• Redline Microline Seat/Post combo
• Vee Speedster tires

FRAME SPECS:

• Toptube Length: 19.8″
• Head Angle: 73
• Seat Angle: 69
• BB Height: 10.6″
• Chainstay: 14.3″ – 15.3″

RECOMMENDED RIDER HEIGHT:

4′ 6″ – 5′ 2″

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL Chromo 1″steer tube, tapered legs
Colors	Gloss Red/White
Headset	Integrated 1 “Headset
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Junior Aluminum 4.5″ 10˚ Back x 2˚ Up
Grips	RL Mini Hex Grips
Seat	RL Microline Combo 22.2 Aluminum post
Seat Post	RL Microline Combo 22.2 Aluminum post
Seat Post Clamp	Redline Proline Aluminum 25.4mm
Rims	Alienation Ankle Biter 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Vee Speedster 24 x 1-1/8″ Tires
Crankset	RL Microline 3pc 155mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	39/16
Extras	Redline Chain Tensioners

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
