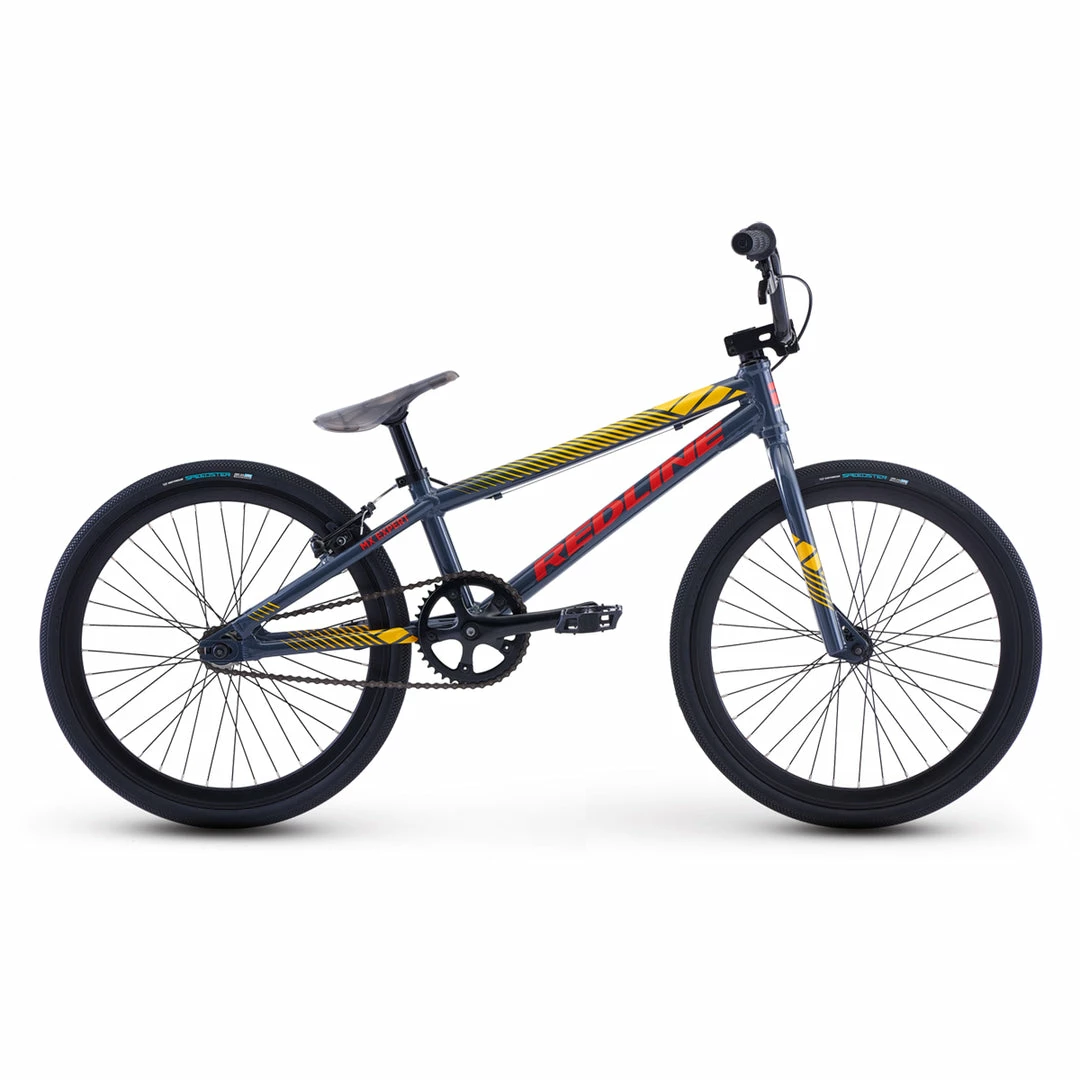

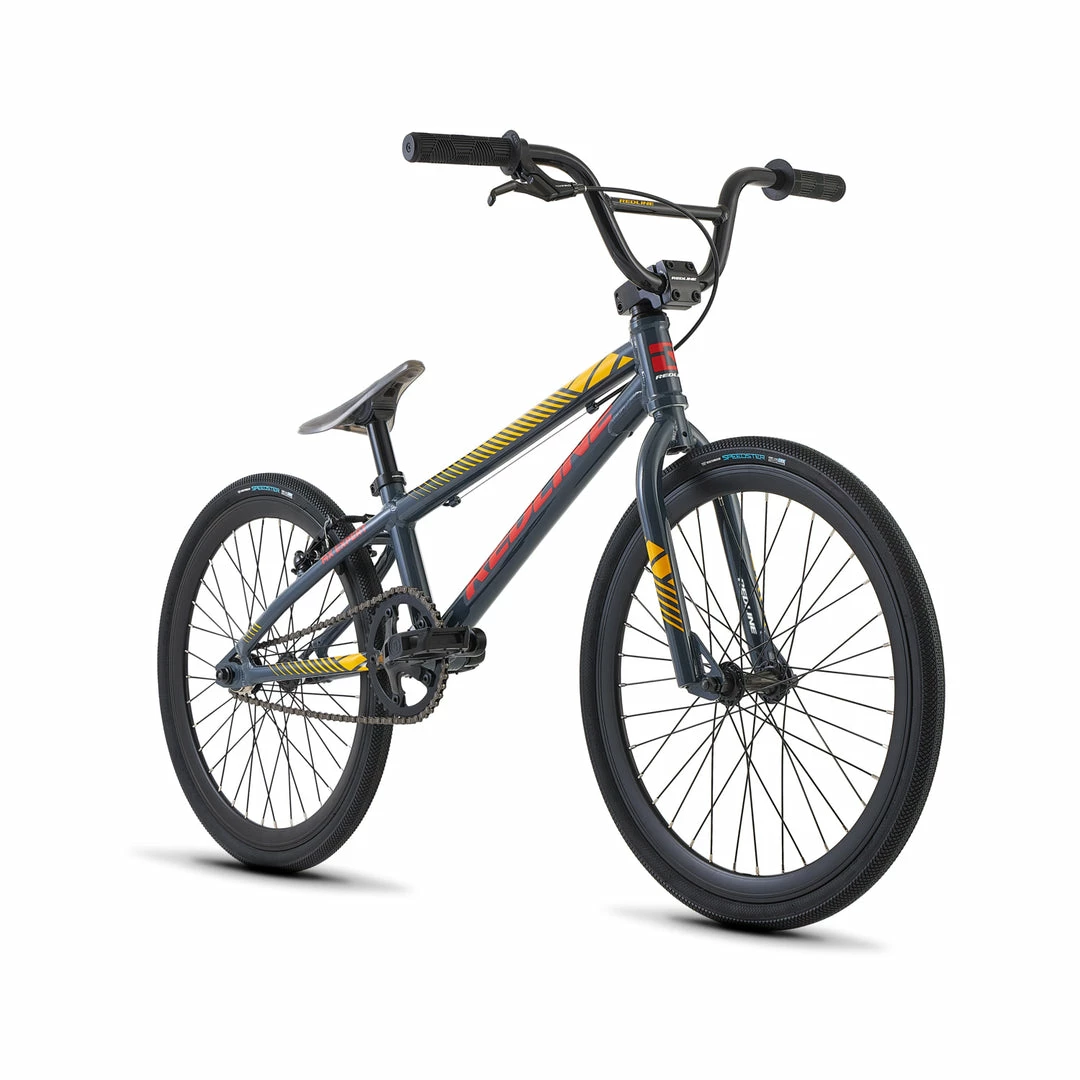

Redline MX Expert BMX Race Bike-Dark Grey Blue Gloss

SPECIFICATIONS

• Frame: 6061 Alloy w/Integrated Headtube

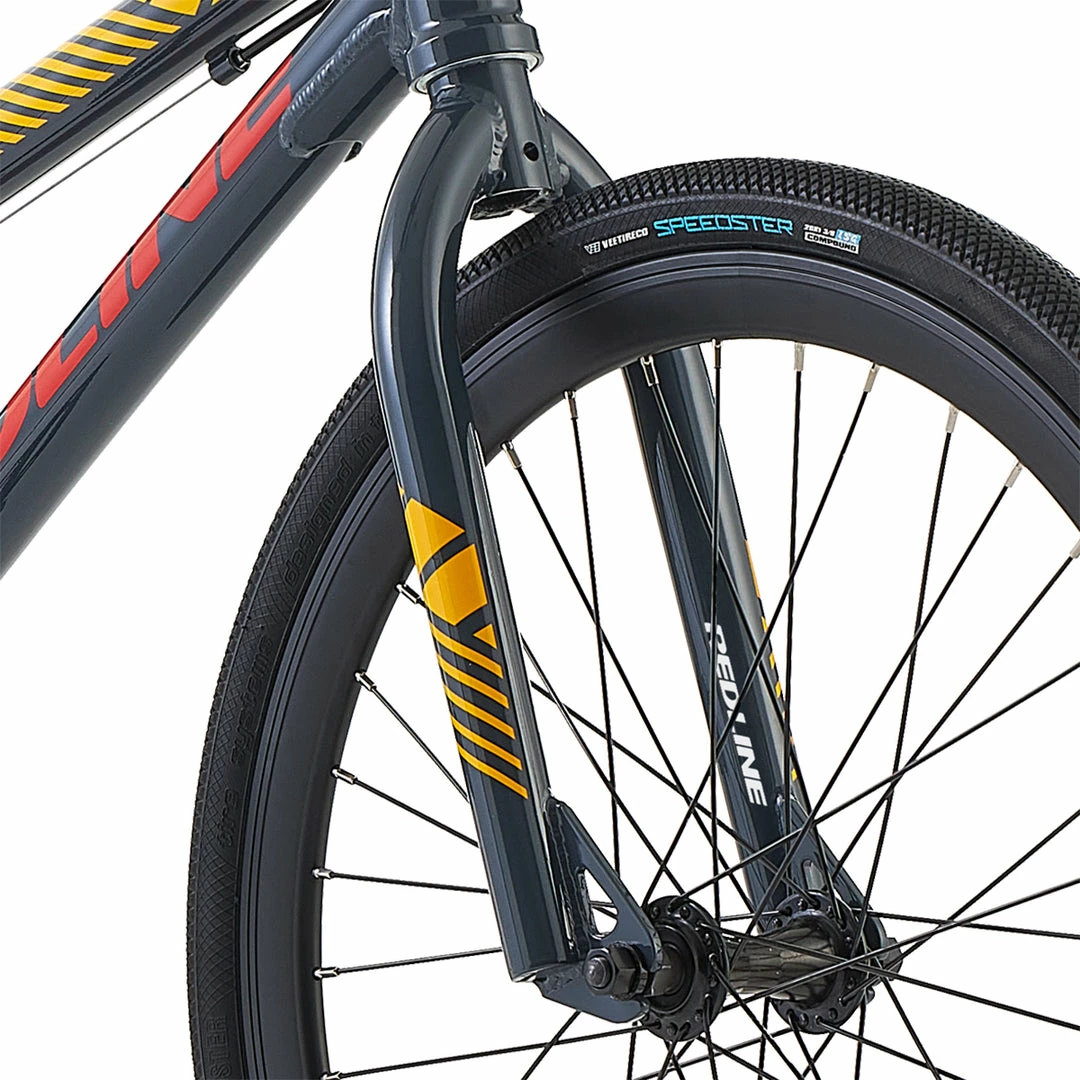

• Fork: RL Race Hi-Ten w/ Tapered legs
• Headset: Integrated 1 1/8″
• Cranks: Race Aluminum 3pc, 165mm
• Sprocket: 39t, Alloy
• Bottom Bracket: Euro
• Cogset (Cassette/Freewheel): 15t
• Chain: KMC S1
• Front Hub: Redline Aluminum
• Rear Hub: RL Aluminum Flip-Flop
• Spokes: 14g Steel
• Rims: Alloy Race 20 x 1 1/8, 36h
• Tires: Vee Speedster, 20 x 1 3/8
• Brakes: Tektro BX-1V Linear

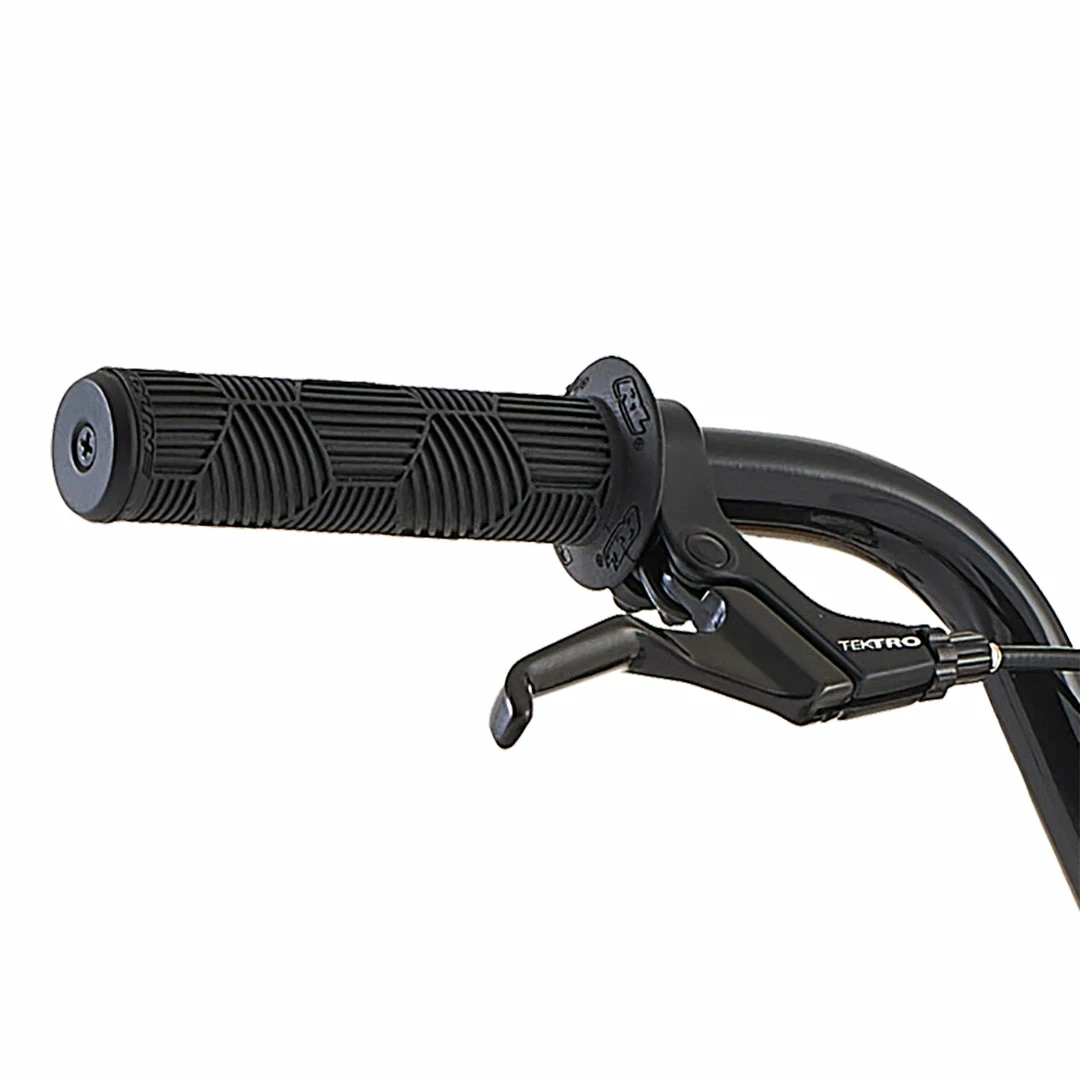

• Brake Levers: Tektro
• Pedals: RL Race 9/16″ PC pedal

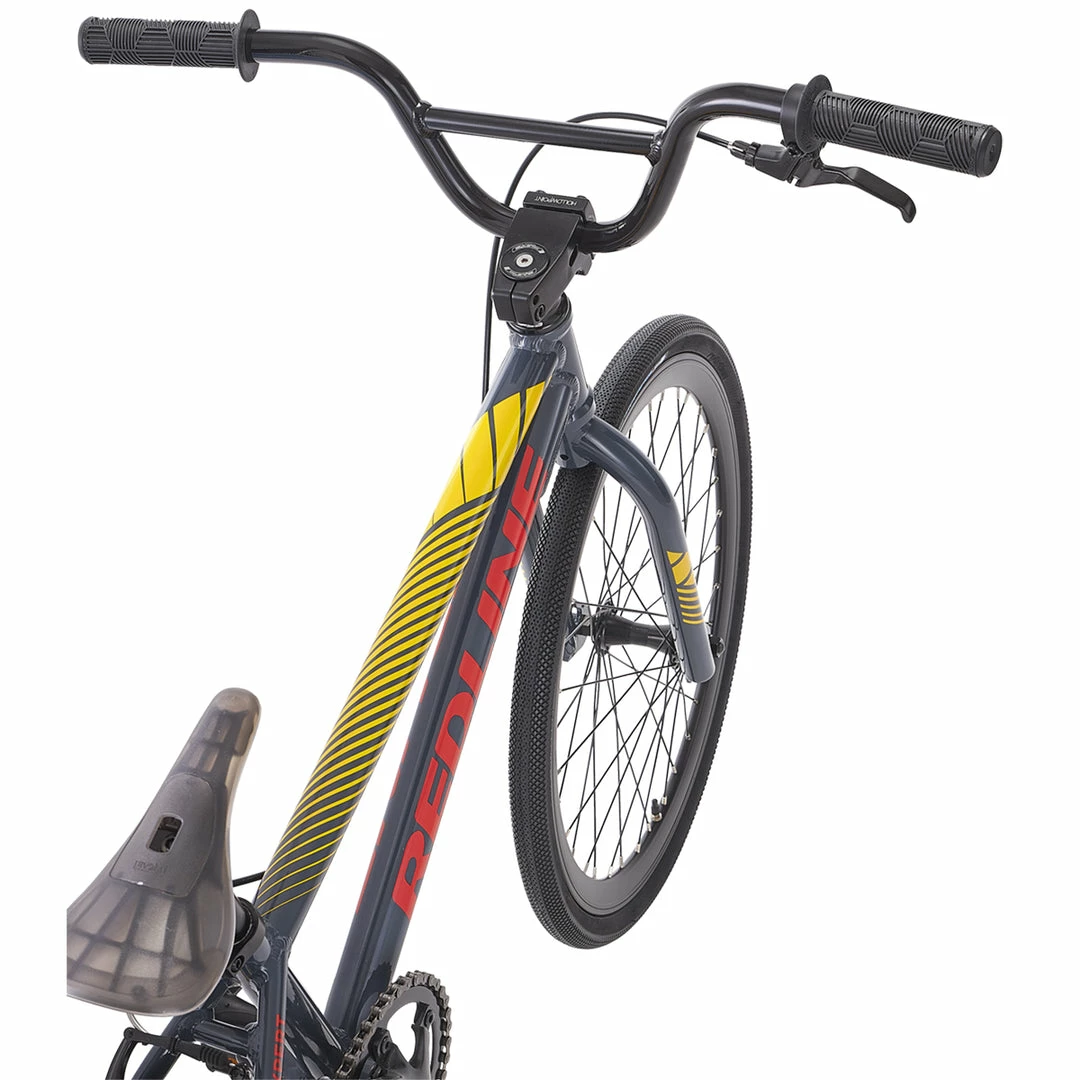

• Handlebar: RL Race 5.5″ Rise/ 12 deg Back/ 1 deg Up
• Grips: Redline Hex expert w/plugs
• Stem: RL Hollow Point Aluminum 1 1/8″ threadless

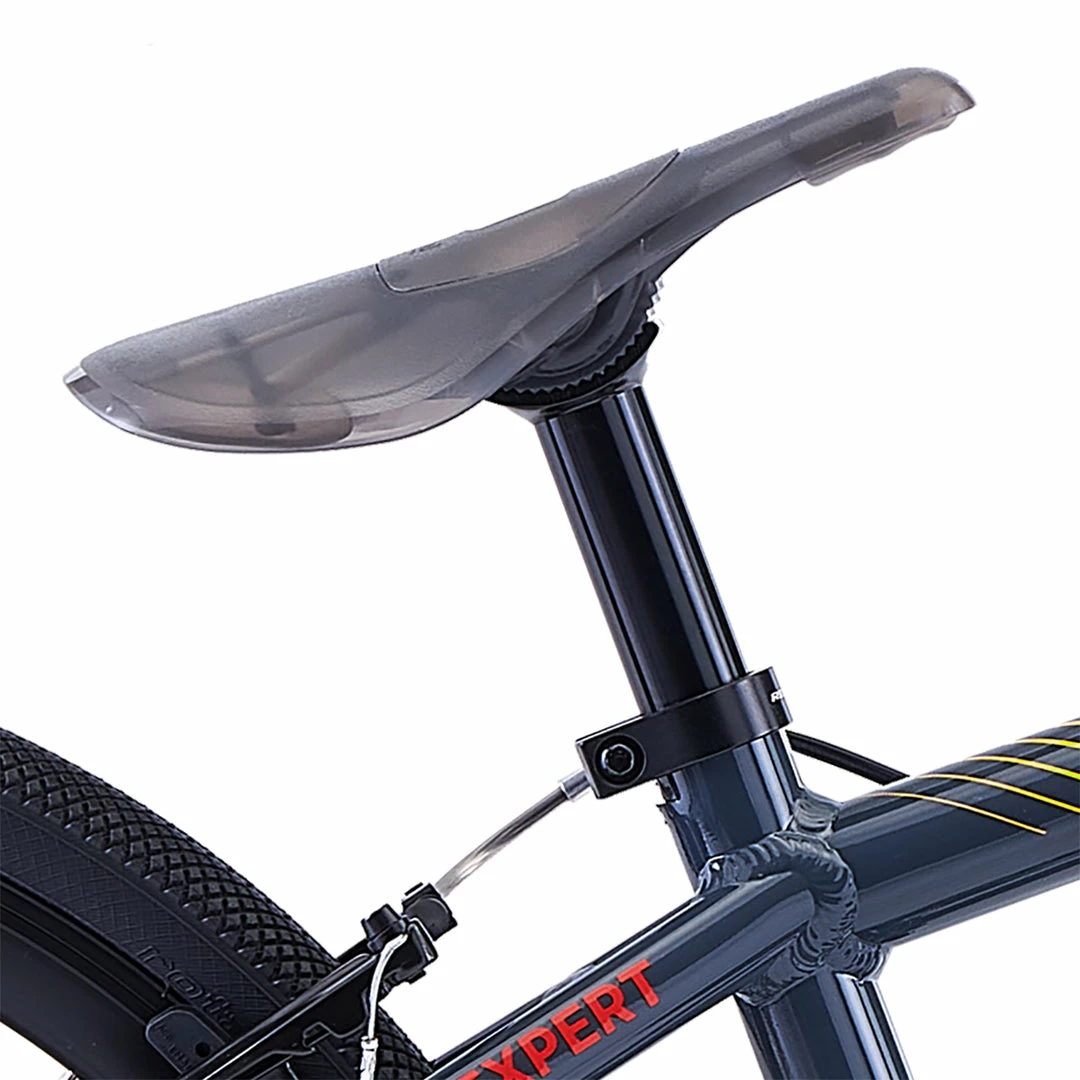

• Seat: Pivotal Race
• Seatpost: Pivotal 26.8

GEOMETRY

• Size: 20″
• Top tube length: 19.5″
• Head angle: 73.0°
• Seat angle: 69.0°
• Chain stay length: 13.75″
• Bb height: 11.4″
• Stem length: 50.0″
• Handlebar width: 26.0″
• Crank length: 165.0″
