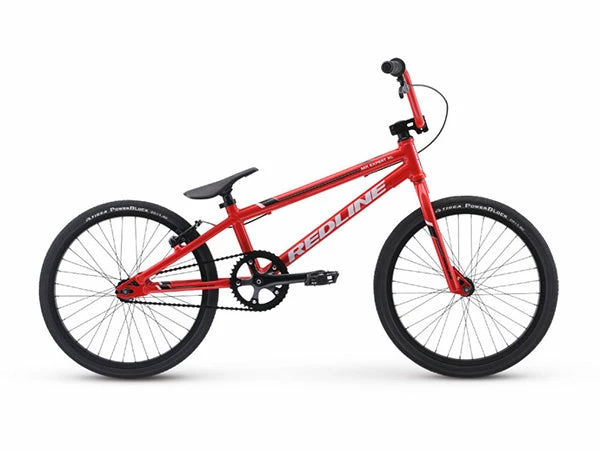

Redline MX BMX Bike-Expert XL-Red

Ready to hit the track out of the box. 6061 Alloy frame, Three piece crank and integrated headset. With a size for everyone, this the perfect choice for the new and experienced racer.

KEY FEATURES

• 6061 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
• Pivotal Race Saddle
• Chromo 3pc Cranks
• Tioga Power Block Tires

FRAME SPECS:

• Toptube Length: 20″
• Head Angle: 73
• Seat Angle: 69
• BB Height: 11.2″
• Chainstay: 13.8″

RECOMMENDED RIDER HEIGHT:

4′ 10″ – 5′ 4″

Frame	6061 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
Fork	RL Race Chromo Steer, Taperd leg, 30mm Off set
Colors	Gloss Red
Headset	Integrated 1 1/8″
Stem	RL Race 50mm Aluminum 1 1/8″ threadless
Handlebar	RL Race 6.5″ , 12˚ Back 1˚ Up
Grips	Redline Hex expert w/plugs
Seat	Pivotal Race
Seat Post	Pivotal 26.8
Seat Post Clamp	Alloy 31.8
Rims	Race 20 x 1.5, 36h
Front Hub	RL Aluminum
Rear Hub	RL Aluminum Flip-Flop
Spokes	Black 14g
Tires	Tioga PowerBlock (F)20 x 1.6″ / (R)20 x 1.4″
Crankset	RL Race Aluminum 170mm 3pc Cranks
Bottom Bracket	Sealed Euro
Pedals	RL Race 9/16″ PC pedal
Brake	Tektro BX-1 Linear
Brake Lever	Tektro
Chain	KMC Z410
Gearing	39/14

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
