Redline Asset 24″ BMX Freestyle Bike-Mustard BIKES

SPECIFICATIONS

• Frame: Full Chromo, Integrated Headtube

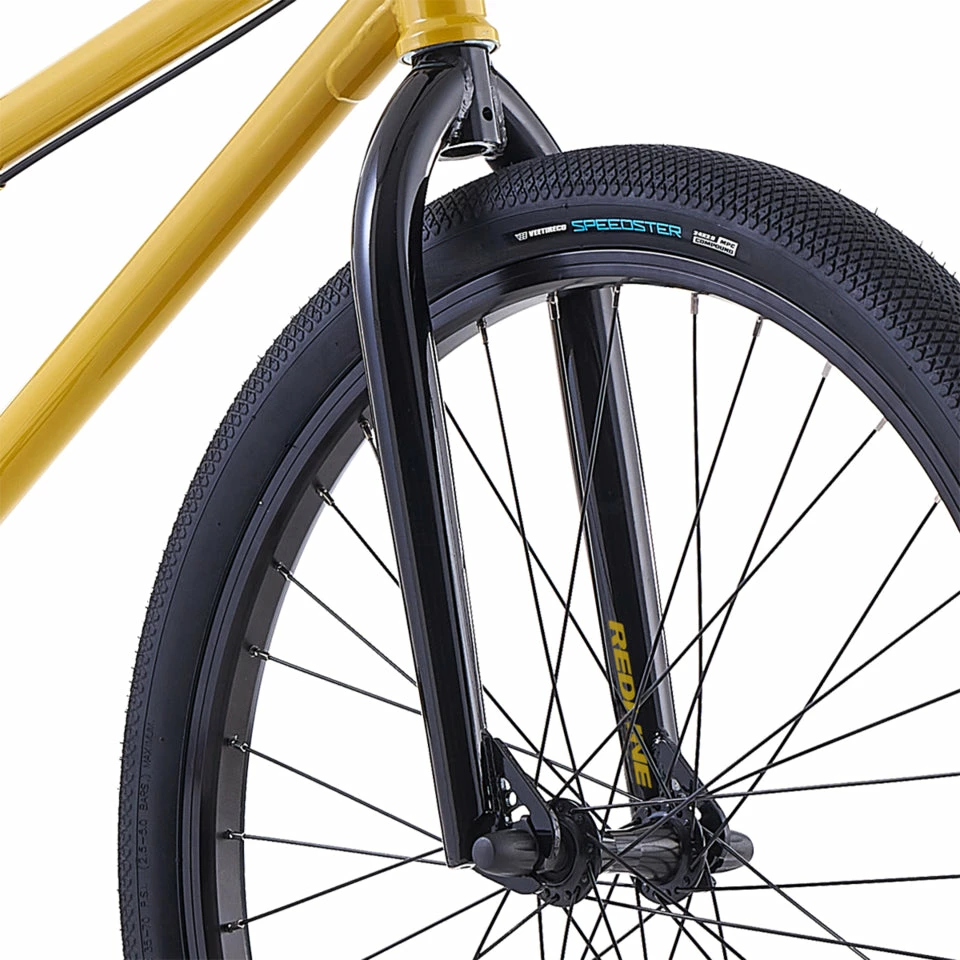

• Fork: Full Chromo
• Headset: Monster Integrated 1 1/8″

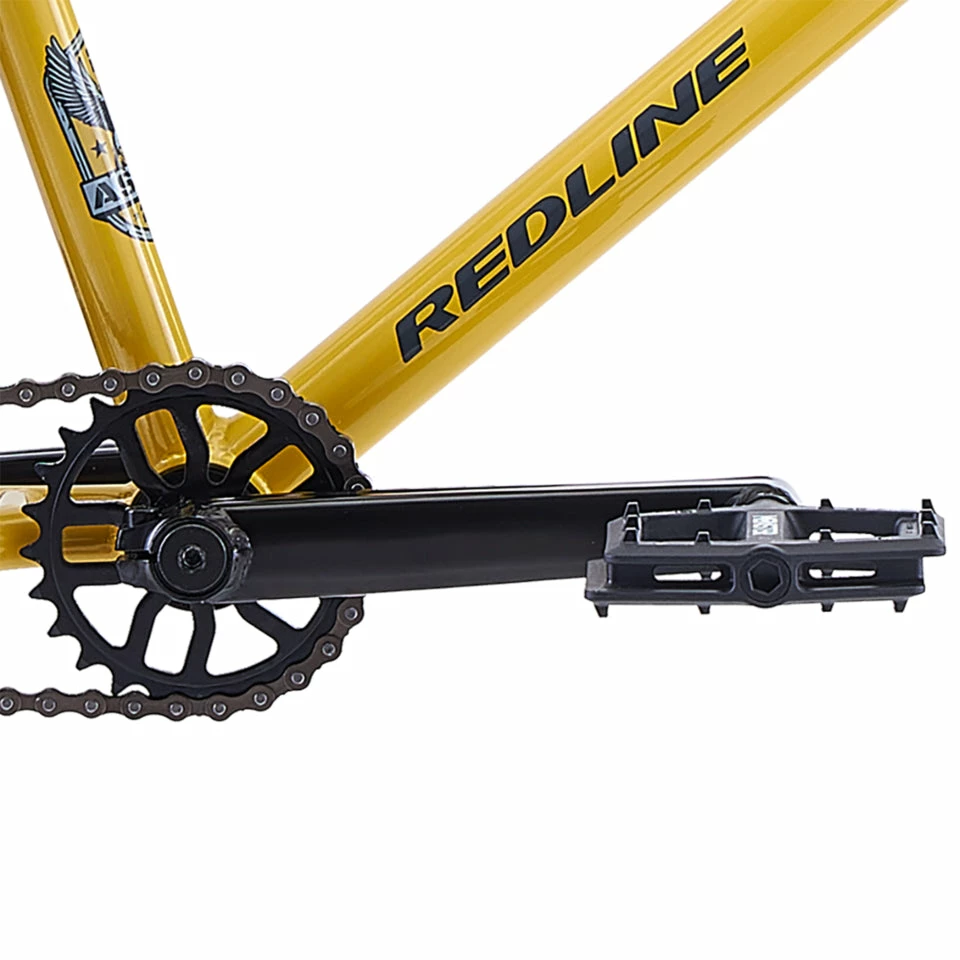

• Cranks: 100% Heat treated Chromo, 3pc,175mm
• Sprocket: 25t, Alloy
• Bottom Bracket: Sealed Mid BB
• Cogset (Cassette/Freewheel): 10t
• Chain: KMC S1
• Front Hub: Aluminum, Chromo 3/8″ Axle

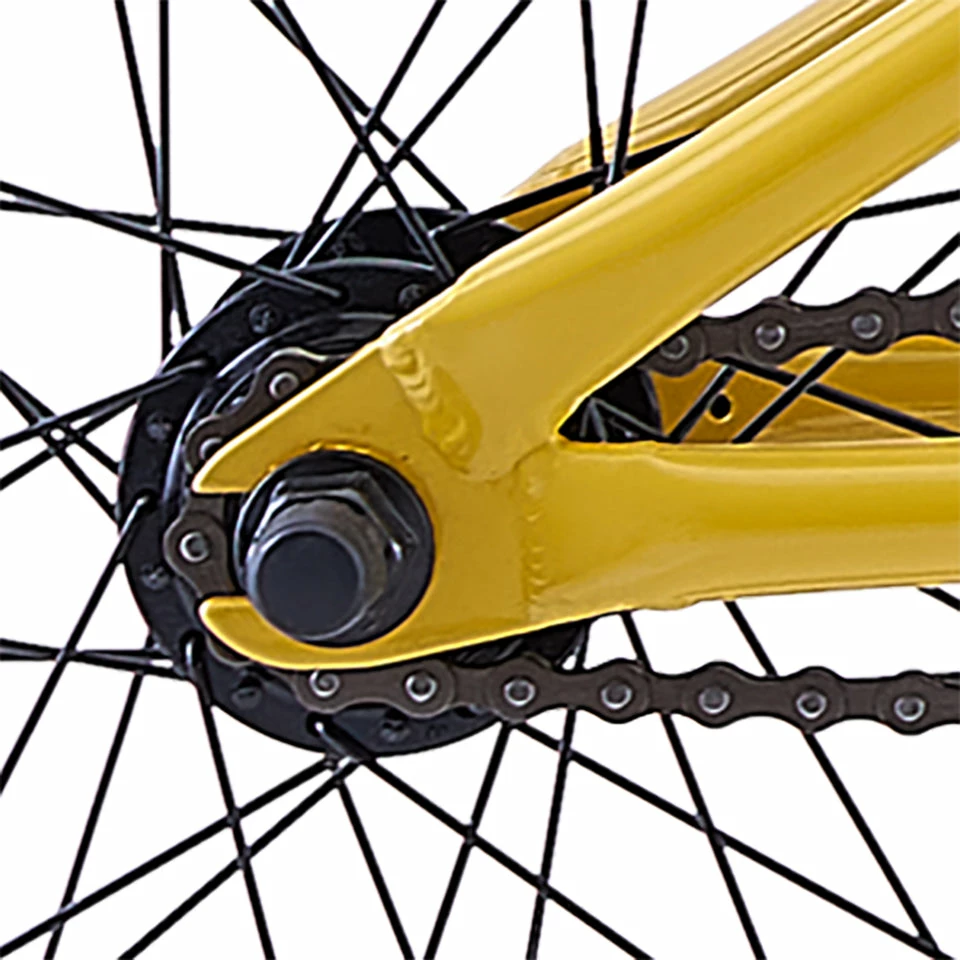

• Rear Hub: Aluminum, Fully Sealed, Chromo 14mm Axle
• Spokes: 14g Steel
• Rims: Alloy, 36h
• Tires: Vee VTC Speedster, 24 x 2.0
• Brakes: Tektro 907A Rear U

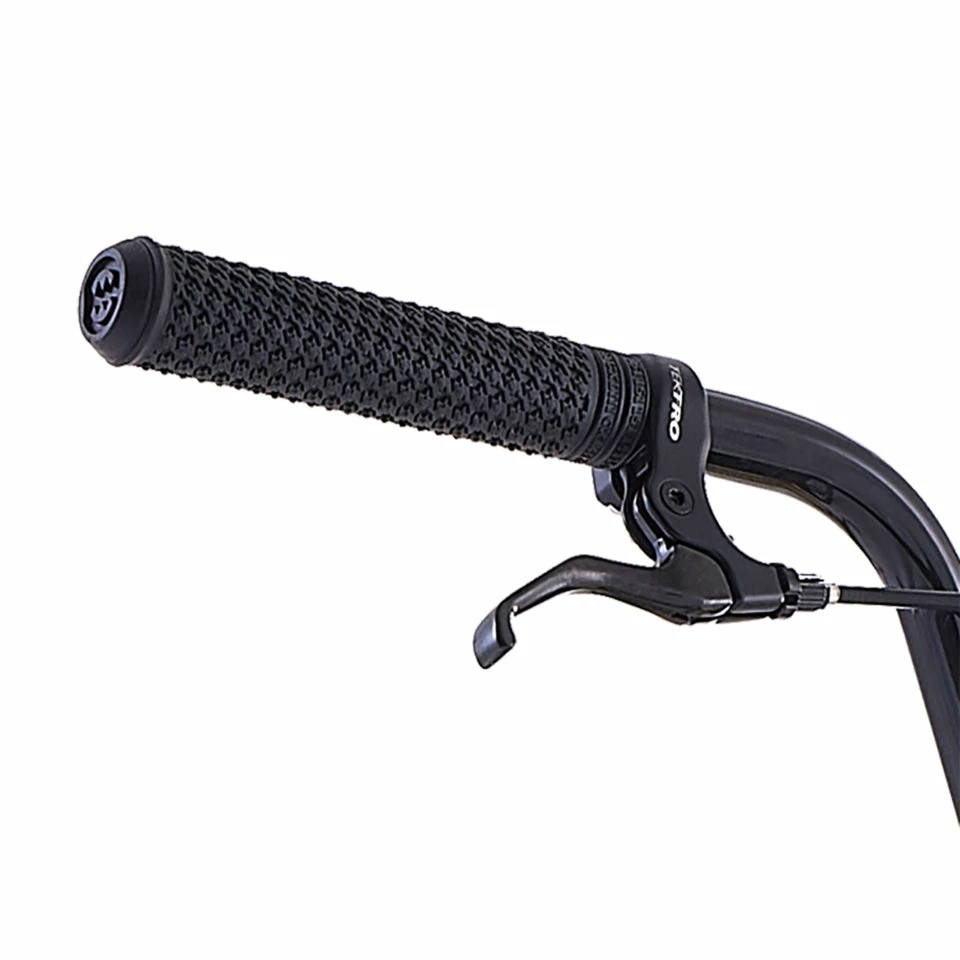

• Brake Levers: Tektro
• Pedals: Monster, Sealed Bearing, Ultra Low profile Resin Platform w/Chromo Spindle
• Grips: Monster 151 Flangeless w/Plugs
• Stem: Front Load, 50mm

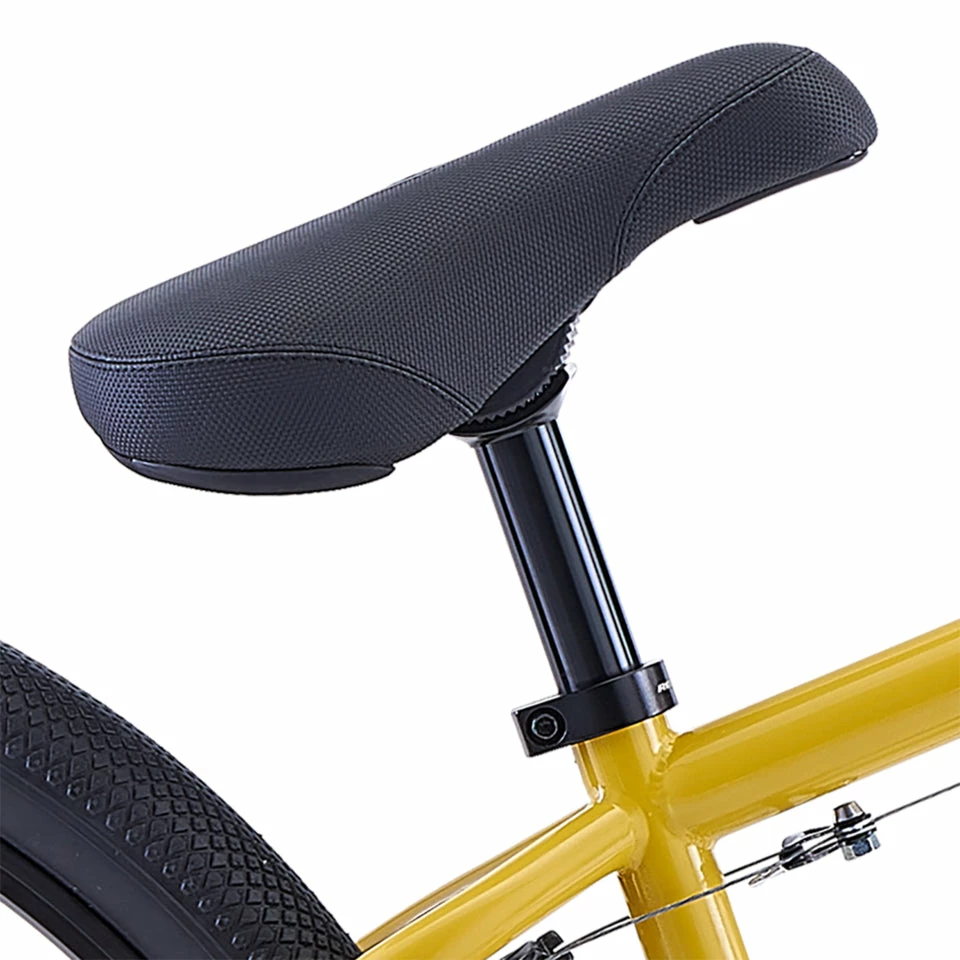

• Seat: Monster Fat Padded Pivotal Saddle
• Seatpost: 25.4

GEOMETRY

• Size: 24″
• Top tube length: 21.75″
• Head angle: 74.5°
• Seat angle: 71.0°
• Wheel base: 0.0″
• Chain stay length: 15.5″
• Bb height: 13.0″
• Handlebar width: 28.5″
• Crank length: 170.0″
