PRODUCT DETAILS

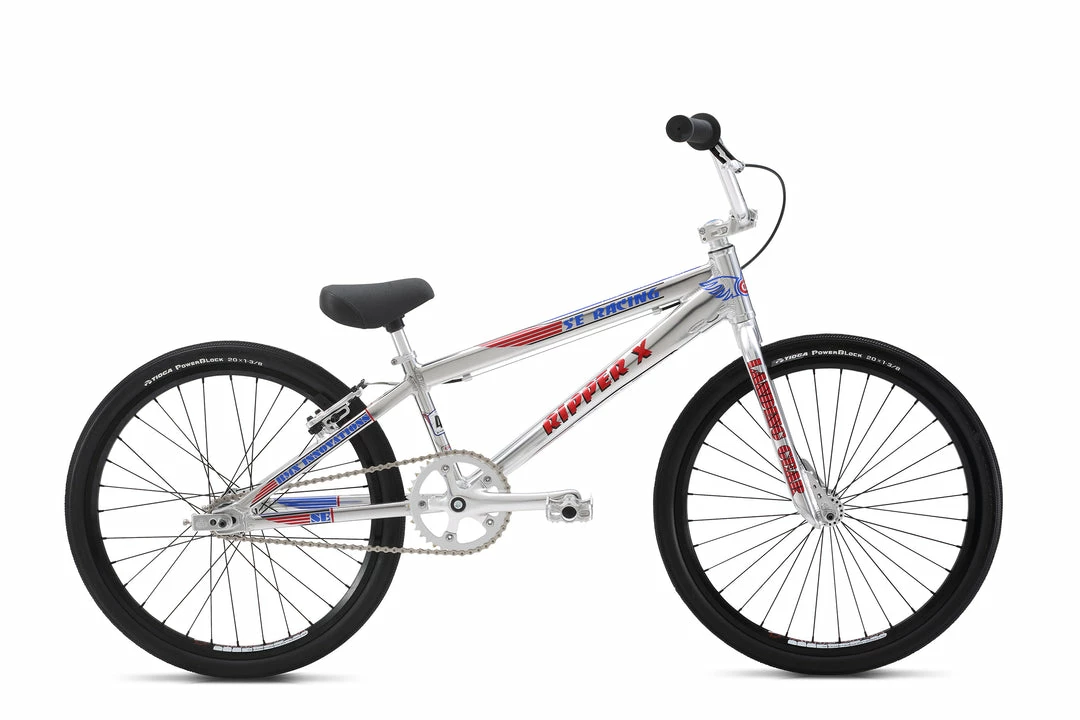

 Built with a super-stiff 6066 aluminum frame featuring a bi-oval downtube and 6066 aluminum Landing Gear forks, this rad ride weighs in at a featherweight 16.5 lbs. Rounding out the package are Alienation Ankle Biter rims, a Promax Impact Mini stem, and Tioga PowerBlock tires. It’s no wonder that the Ripper X is one of the fastest rippers on the track.
Features:
Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube, and rectangular rear stays for maximum stiffness. | Lightweight 6066 aluminum Landing Gear forks with Cr-Mo steerer tube. | Alloy SE Wing bars. | Promax Impact Mini 6061-T6 aluminum CNC stem w/ hidden top cap for a clean look. | Stiff and lightweight 3-pc 165mm alloy cranks. | Tioga PowerBlock 1-3/8” tires provide ultra-quick cornering and low rolling resistance. | Alienation Ankle Biter rims built with sealed cassette hubs with lightweight hollow axles. | Includes all-new “40 Years of Radness” SE race plate. | 16.5 lbs
|
Top Tube |
 19.5″ |
|
Head Angle |
 73° |
|
Seat Angle |
 70° |
|
BB Height |
 11″ |
|
Chainstay |
 13.8″ |
Â
|
Frame |
 Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Bi-Oval Down Tube, Rectangular Seat & Chainstays, 3D-Forged Dropouts |
|
Fork |
 6066 Alloy Landing Gear, Cr-Mo Steerer Tube |
|
Colors |
 High Polish Silver |
|
Headset |
 Tange IS22 Sealed 1″ Integrated Headset |
|
Stem |
 Promax Impact Mini 1″, 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 45mm Reach |
|
Handlebar |
 Alloy SE Wing Bar, 24.5″ x 6″ |
|
Grips |
 Expert Grips |
|
Seat |
 SE Racing Mini w/ Integrated Alloy Post |
|
Seat Post |
 Integrated Alloy, 22.2mm |
|
Seat Post Clamp |
 |
|
Rims |
 Alienation Ankle Biter Double-Wall, 32H Rims |
|
Front Hub |
 Sealed Bearing Hollow Axle Alloy Hubs |
|
Rear Hub |
 Sealed Bearing Hollow Axle Alloy Hubs |
|
Spokes |
 Stainless Spokes |
|
Tires |
 Tioga PowerBlock 20″ x 1-3/8″ Front & Rear |
|
Crankset |
 3-pc Alloy, 165mm |
|
Bottom Bracket |
 Euro-Sealed Bearing Bottom Bracket |
|
Pedals |
 Wellgo Alloy Caged, Cr-Mo Axle |
|
Brake |
 Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
|
Brake Lever |
 Promax SE-341, 2-Finger Alloy |
|
Chain |
 KMC Z33 |
|
Gearing |
 38T Alloy Chainring |
|
Extras |
 15T Cassette, SE Chain Tensioners, SE Racing Number Plate |
Weight:Â 16.5 lbs / 7.48 kgs
