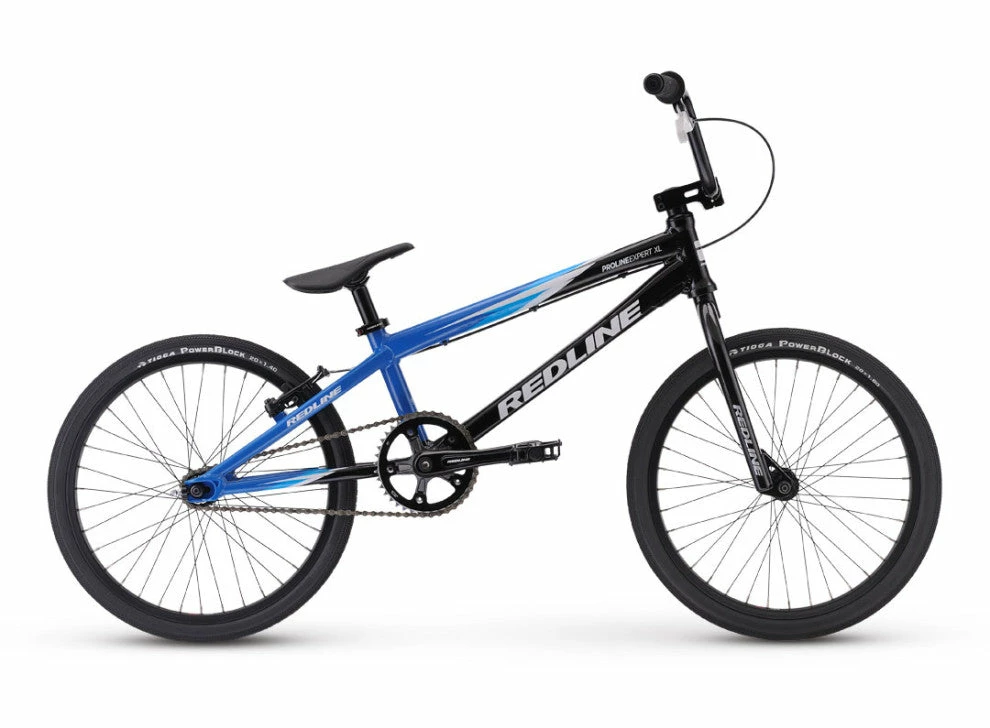

RACE BIKES Redline Proline BMX Bike-Expert XL-Black

For the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% Chromoly butted and tapered race fork for performance and value that is top of the class.

KEY FEATURES

• Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
• RL 100% Full Chromo Fork, Multi Butted with Tapered Legs
• Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
• Redline Microline 3pc, Cranks
• No padding Pivotal seat w/quick release seat clamp
• Tioga Power Block tires

Top Tube	20″
Head Angle	73˚
Seat Angle	69˚
BB Height	11.2″
Chainstay	13.25″ – 14.25″

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL 100% Full Chromo, Multi Butted with Tapered Legs
Colors	Gloss Black/Blue
Headset	Integrated Headset 1 1/8, Aluminum top cap
Stem	RL Aluminum HollowPoint 50mm
Handlebar	RL Expert Aluminum 6.5″ Rise 12˚ Back, 1˚ Up
Grips	RL Pro Hex Grips
Seat	Pivotal No padding
Seat Post	Aluminum Pivotal 26.8mm
Seat Post Clamp	Redline Quick Release Aluminum 31.8mm
Rims	Sun CR18
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Tioga PowerBlock F. 20 x 1.6Ó/ R. 20 x 1.4″
Crankset	Redline Microline 3pc 170mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	RL Aluminum 9/16″ Platform
Brake	Tektro 930AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	39/15
Extras	Redline Chain Tensioners
