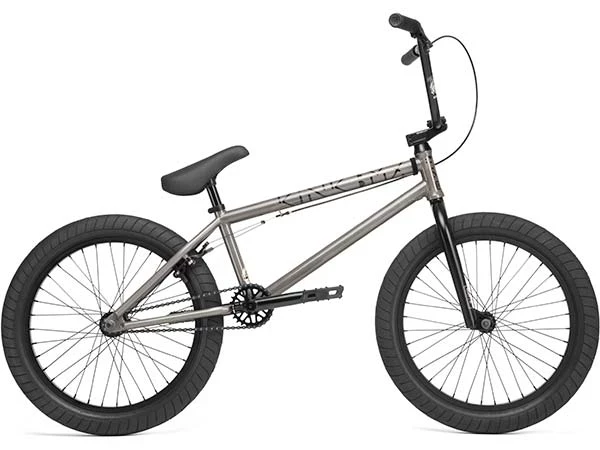

Kink Launch 20.25″TT Bike-Gloss Raw Holographic

The 2020 Launch continues the legacy of a truly remarkable bike. This bike is still one of the best value priced models in the market, hands down, year after year.

The Launch is equipped with both a sealed integrated headset and sealed Mid bottom bracket, which drastically improves performance and virtually eliminates maintenance of these components. Combined with a parts package that includes Kink Stryker forks, Kink Human CC 8.75” bars, and Mission Triumph 3pc tubular chromoly cranks, this bike is a rookies dream.

SPECIFICATION

• Color: Gloss Raw Holographic
• Frame Material: 100% Hi-Ten Steel
• Toptube Length: 20.25″
• Fork: Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
• Bars: Kink Human CC 8.75” 100% Hi-Ten Steel

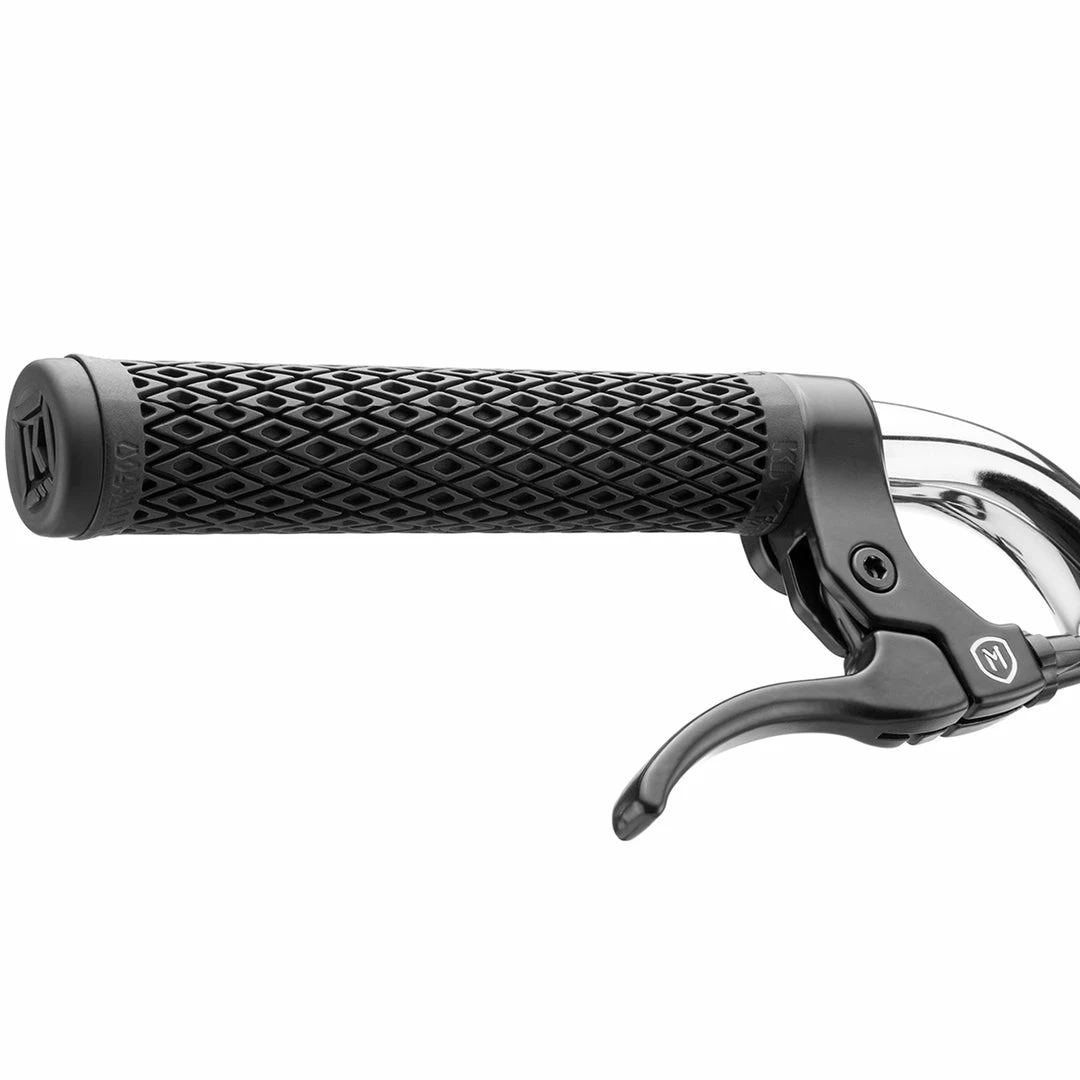

• Grips: Kink Paragon Flangeless
• Barends: Kink Thrust
• Stem: Kink Bold HRD 50mm
• Headset: Mission Sealed Integrated (41.8 x 45)
• Brake Lever: Mission Token
• Brake Cable: Mission L3 Linear
• Brakes: Mission Cease V2
• Cranks: Mission Triumph 3pc Tubular Chromoly 170mm – 8 Spline
• Bottom Bracket: Sealed Mid 19mm
• Pedals: Kink Hemlock
• Chain: Mission 410
• Sprocket: Mission Rank 25T
• Front Hub: Mission Covert Unsealed 3/8″ Axle
• Rear Hub: Mission Function Semi-Sealed Cassette 14mm
• Driver: 9T
• Front Rim: Mission X7
• Rear Rim: Mission X7

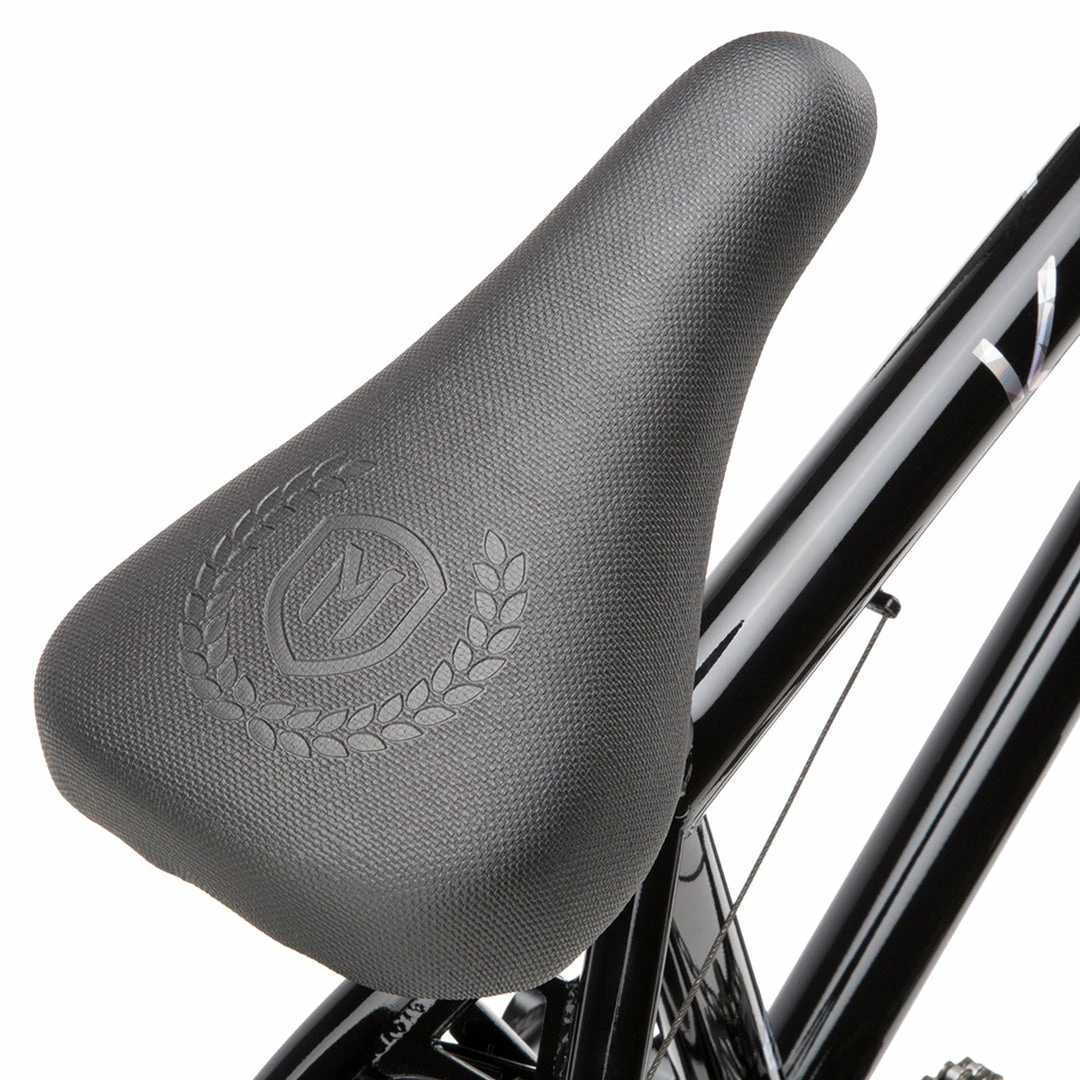

• Seat: Mission Garson Combo
• Seat Post: Mission Combo Steel Post
• Seat Clamp: Mission Slim

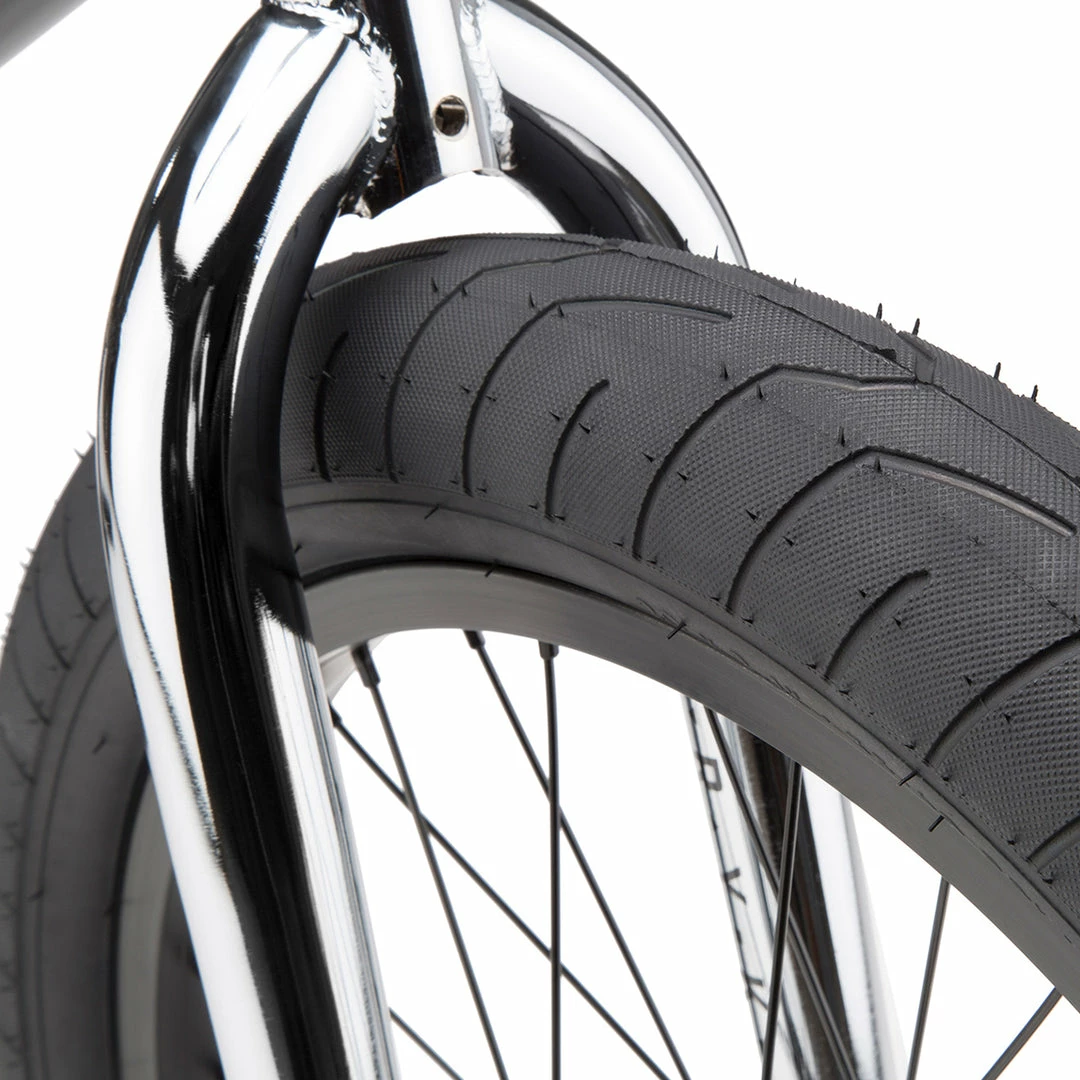

• Front Tire: Kink Sever 2.4″
• Rear Tire: Kink Sever 2.4″
• Gyro Tabs: Tapped for Tabs
• Weight: 26lb 6oz

GEOMETRY

• Toptube Length: 20.25″
• Chainstay Length: 13.25″
• Headtube Angle: 75°
• Seattube Angle: 71°
• Standover Height: 8.75″
• Bottom Bracket Height: 11.6″
• Fork Offset: 32mm
