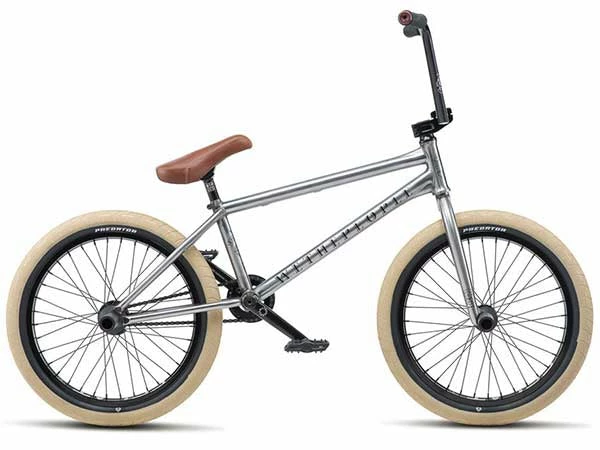

FREESTYLE BIKES We The People Battleship 20.75″TT Bike-LSD Brushed Raw

You asked, We The People listened. Taking one of the most popular technical street frames on the market and adding a full aftermarket PRO parts package, the We The People 2019 Battleship 20.75” Bike-LSD Brushed Raw is the greatest street bike ever made. With some of the latest cutting edge parts from ECLAT including a wheelset using the new Bondi 38mm rims and WETHEPEOPLE Helix hubs with x4 Nylon hub guards, the Battleship is a PRO level bike in a box.

A bike made of 100% aftermarket parts, including the WETHEPEOPLE Battleship 24mm offset fork and the ECLAT Strangler 25.4mm OS handlebar, this incredible bike is as custom as it gets. Available in two amazing colors in either RSD or LSD, this freecoasting beast has everything you could need to go to war with the streets.

INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK SPECIFICATIONS

• Frame: WETHEPEOPLE “Battleship” frame, 4130 full crmo, hydroformed gussets, removable pivots & guides
• Fork: WETHEPEOPLE “Battleship” fork, post liquid heat-treated butted sanko tubing, 1pc cnc steerer, 24mm offset
• Bars: ÉCLAT “Strangler” 4pc bar, post liquid heat-treated 4130 crmo, 25.4mm clamping
• Grips: WETHEPEOPLE “Remote” flangeless grips, ÉCLAT “Tech-Bolt” barends

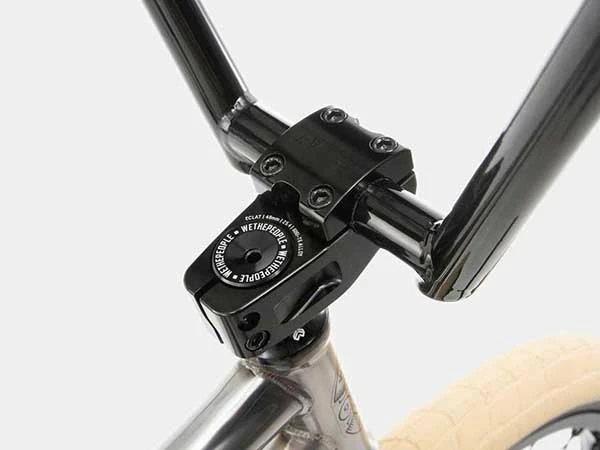

• Stem: ÉCLAT “Domain”, cnc alloy top loading stem, 48mm reach, 25.4mm clamping
• Headset: ÉCLAT “Wave” int. headset, sealed bearing
• Lever: SALT “Moto” alloy brake lever
• Brakes: ÉCLAT “Talon” alloy u-brake rear
• Cranks: WETHEPEOPLE “Logic” 22mm tubular 3pc crank crmo, 165mm, 48 spline
• BB: WETHEPEOPLE “Compact” 22mm, press fit, sealed bearing
• Pedals: ÉCLAT “Slash” nylon/fiberglass pedals
• Chain: SALTPLUS “Warlock” hlaf-link cha
• Sprocket ÉCLAT”AK” 6061-T6 alloy, 25t sprocket & Nylon guard
• Driver: 9t, 1pc freecoaster driver, sealed bearing
• Front Hub: WETHEPEOPLE “Helix” hub, sb, 3/8″‘s female bolts, 36h

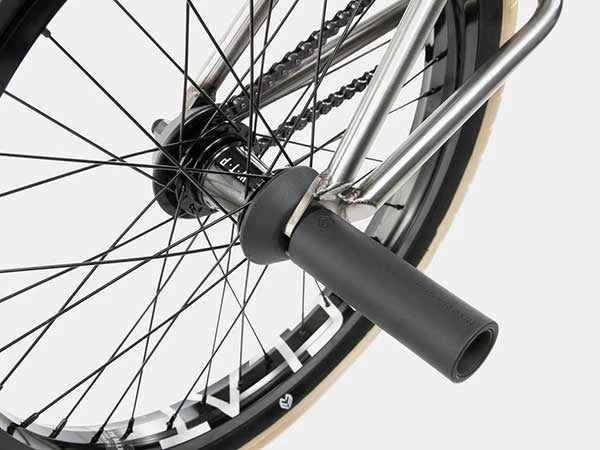

• Rear Hub: WETHEPEOPLE “Helix” freecoaster hub, full sealed, 9t, 14mm axle, 36h
• Hubguards: WETHEPEOPLE “Helix” Nylon/Fiberglass (x2) front & (x2) rear hub guards
• Front Rim: ÉCLAT “BONDI” 38mm wide, flash welded double wall rim, 36h
• Rear Rim: ÉCLAT “BONDI” 38mm wide, flash welded double wall rim, 36h
• Seat: ÉCLAT “BIOS” fat padded pivotal seat
• Seat Post: WETHEPEOPLE “Team” pivotal seat post, 606-T6 alloy, 200mm long
• Seat Clamp: integrated seat clamp
• Tires: ÉCLAT “Predator” 2.30″ front & rear
• Pegs: ÉCLAT “Venom” 4.8″, nylon-fibreglass x2
• Weight: 12.63kg / 27.62lbs (weight with pegs)

FRAME GEOMETRY





• A: Top Tube Length: 20.75”
• B: Chain Stay Length: 13″ (12.7″-13.2″)
• C: Head Tube Angle: 75.5°
• D: Seat Tube Angle: 71°
• E: Bottom Bracket Height: 11.7”
• F: Stand Over Height: 9”

BAR GEOMETRY





• G: Bar Rise: 9.1“
• H: Bar Width: 29”
• I: Bar Back Sweep: 11.5°
• J: Bar Up Sweep: 2.5°
