PRODUCT DETAILS

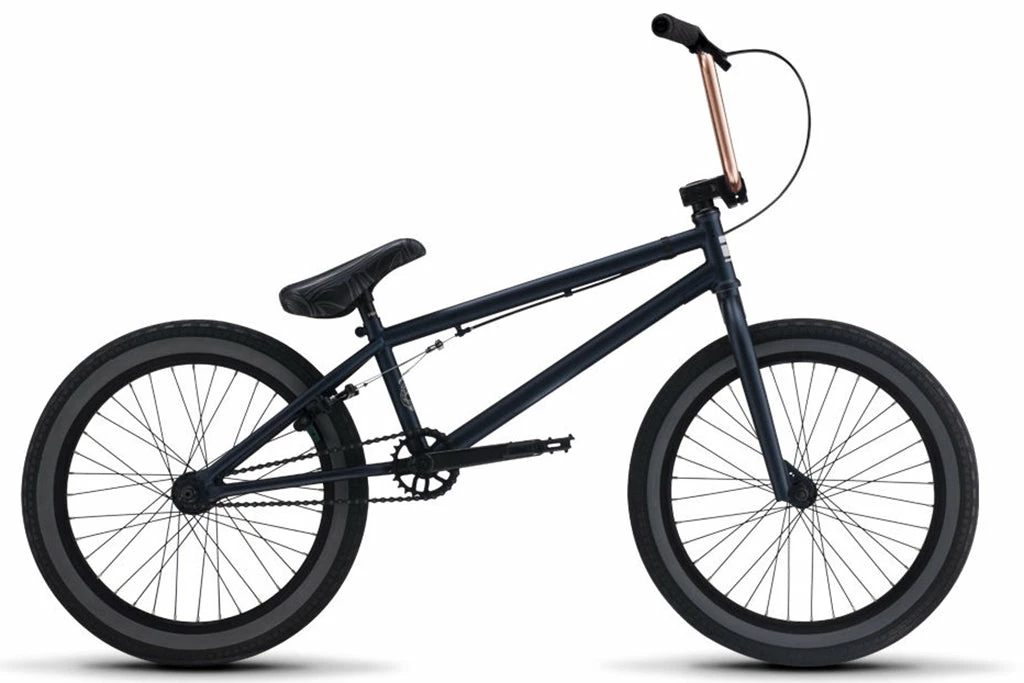

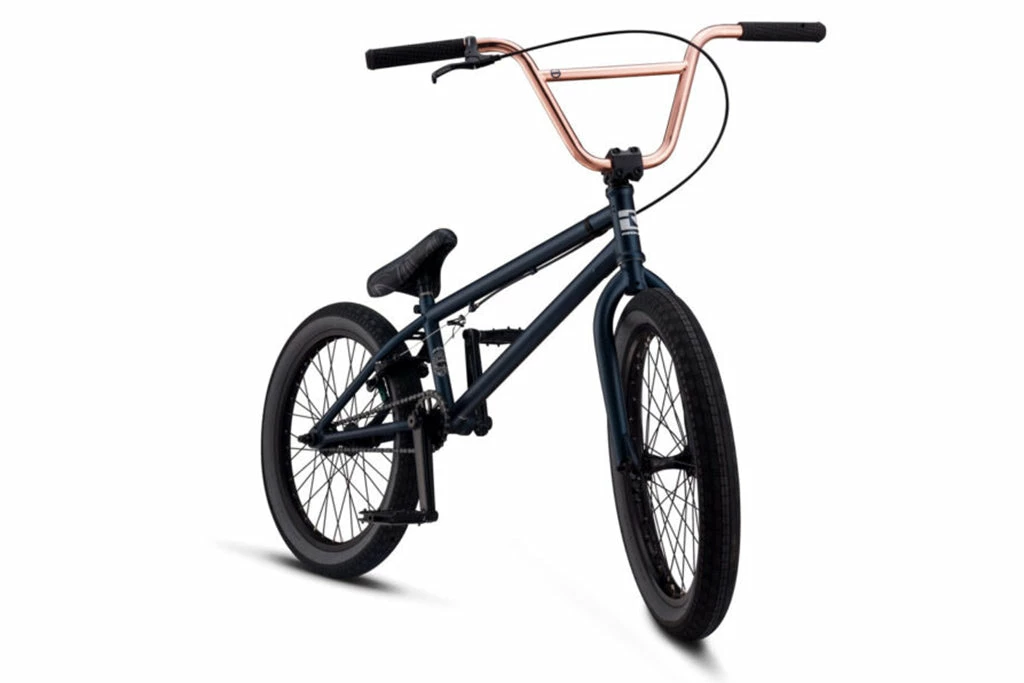

The Redline 2018 Asset, is where it begins to get real. Big box 9″ bars, sealed Mid BB, sealed 25/9 drivetrain and Chromo downtube give the look and feel of a bike costing twice as much.
| Frame | Hi-Ten with Chromo downtube, Integrated Headtube |
| Fork | RL Monster Chromo Steerer, Tapered leg fork |
| Colors | Matte Blue, Gloss Red |
| Headset | Monster Integrated |
| Stem | Front Load, 50mm |
| Handlebar | Hi-Ten 9″ Rise/ 28.5″ Wide 12¡ Back, 1¡ Up |
| Grips | Monster 151 Flangeless w/Plugs |
| Seat | Fat Monster Padded Combo Saddle w/25.4 Post |
| Seat Post | 25.4 |
| Seat Post Clamp | Integrated Bolt |
| Rims | RL spec 36h Alloy |
| Front Hub | Aluminum, Chromo 3/8″ Axle |
| Rear Hub | Aluminum, Fully Sealed, Chromo 14mm Axle |
| Spokes | Black |
| Tires | Kenda Ticket 20 x 2.25Ó Colored Sidewalls |
| Crankset | 100% heat treated Chromo 3pc Cranks, |
| Bottom Bracket | Sealed Mid BB |
| Pedals | Monster, Sealed Bearing, Ultra Low profile Resin Platform w/Chromo Spindle |
| Brake | Tektro FX 340 Rear U |
| Brake Lever | Textro |
| Chain | KMC Z410 |
| Gearing | 25/9 |
| Extras | |
| Bicycle Weight | 26 lbs 2 oz |
| Top Tube | 20.75″ |
| Head Angle | 75˚ |
| Seat Angle | 70˚ |
| BB Height | 11.8″ |
| Chainstay | 13.75″ |
