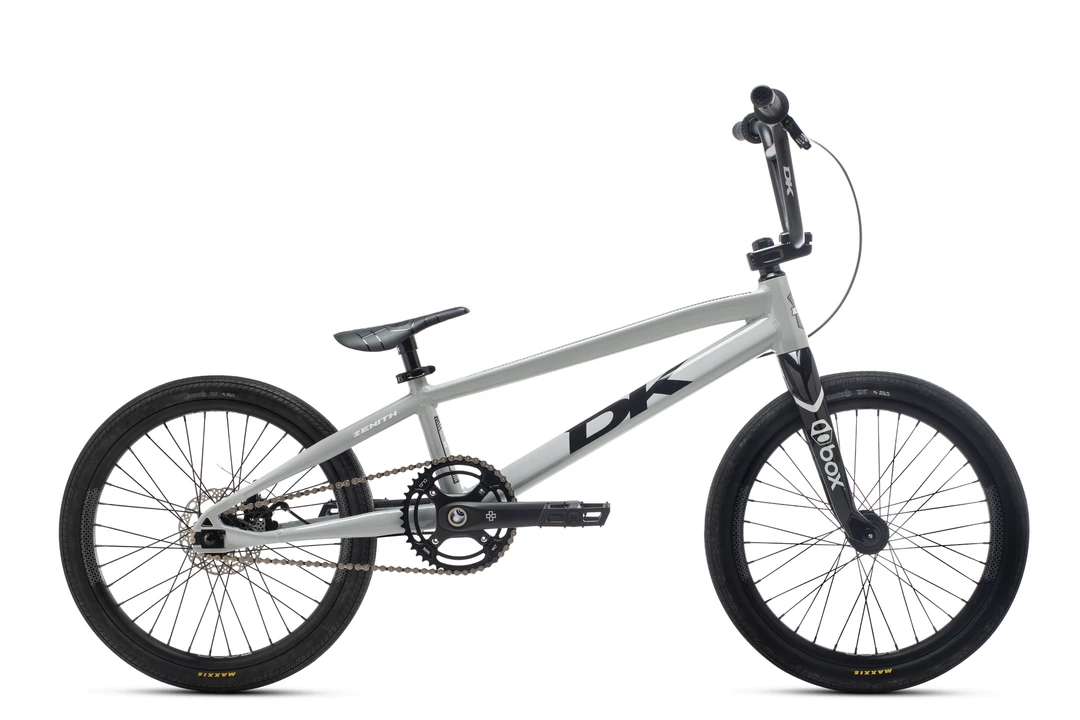

DK Zenith Disc BMX Race Bike-Pro XXXXL 20″-Destroyer Gray RACE BIKES

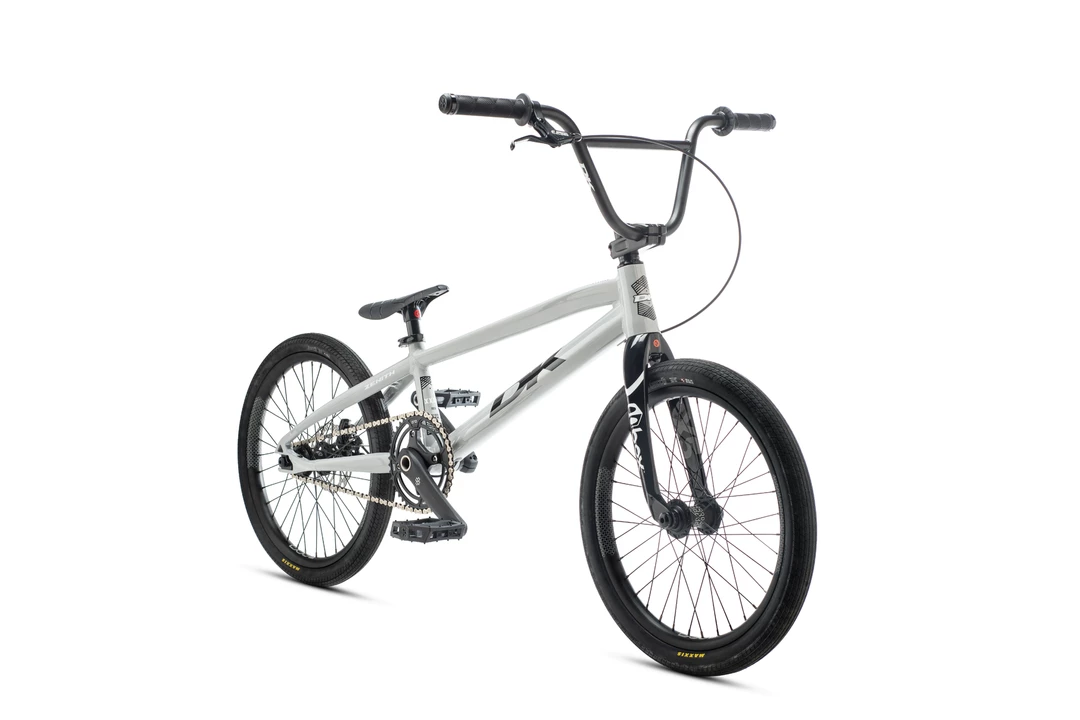

The DK Zenith Disc BMX Race Bike-Pro XXXXL 20″ is the most technologically advanced bike that DK has ever assembled. This podium topping pro-level racer is built on the 100% custom-crafted Zenith frame with a patent-pending sliding flat mount disc brake system.

NOTE: The DK Zenith Disc frame is compatible with flat mount disc brakes only. Flat-mount is more compact and lighter than post mount. With flat-mount, the rear caliper affixed with two bolts running through a flattened frame surface and then threading directly into the caliper (or an adapter affixed to the caliper).

SPECIFICATIONS

• TOP TUBE: 22.5”
• CHAIN STAY: 15”
• HEAD TUBE: 74º
• SEAT TUBE: 72º
• BB HEIGHT: 11.1”

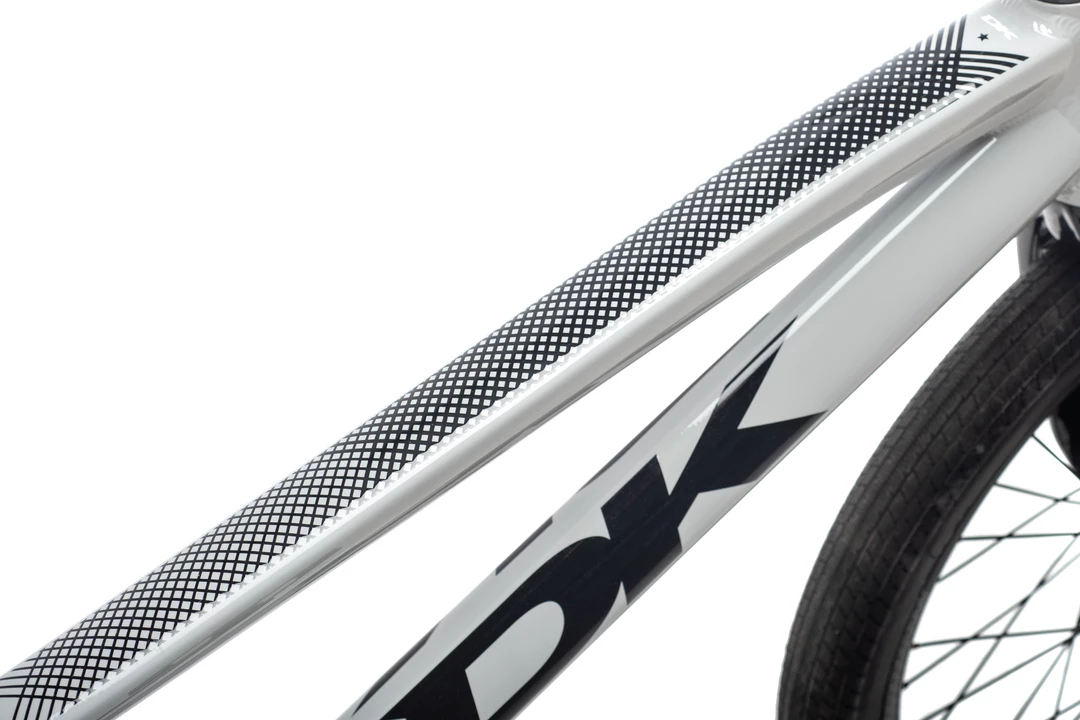

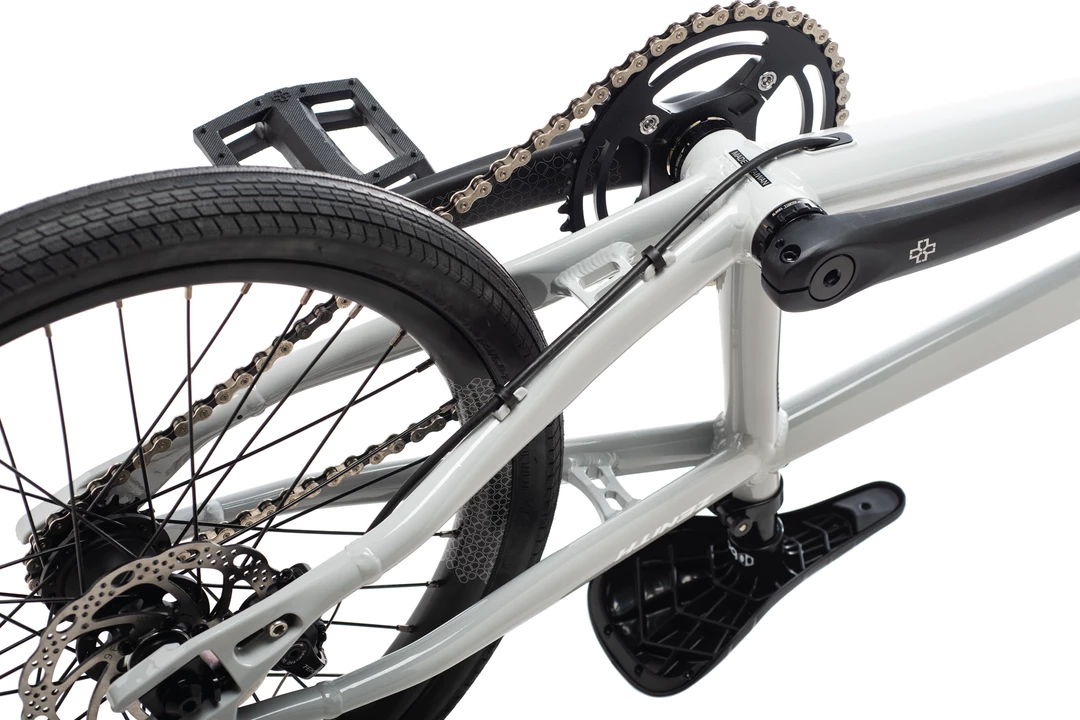

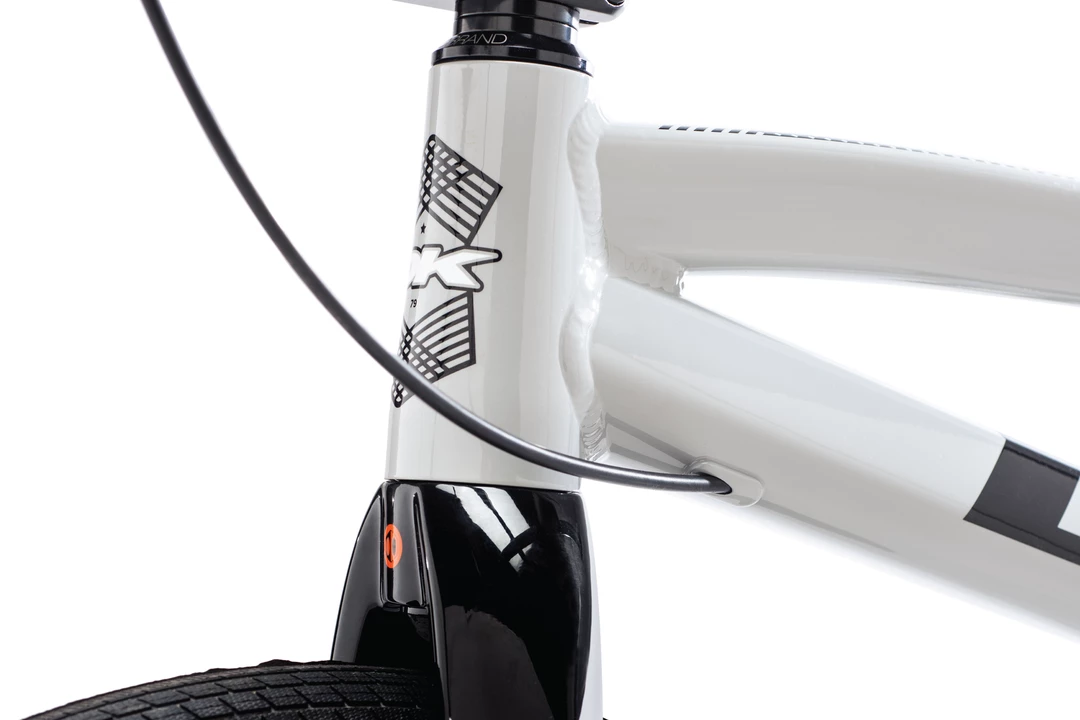

• FRAME: DK Zenith Disc hydroformed 6061 aluminum frame with tapered head tube, internal cable routing, CNC machined bridges, and forged sliding flat mount disc brake system
• FORK: BOX X⁵ carbon with 20mm thru-axle
• HANDLEBAR: 8” rise, 100% chromoly

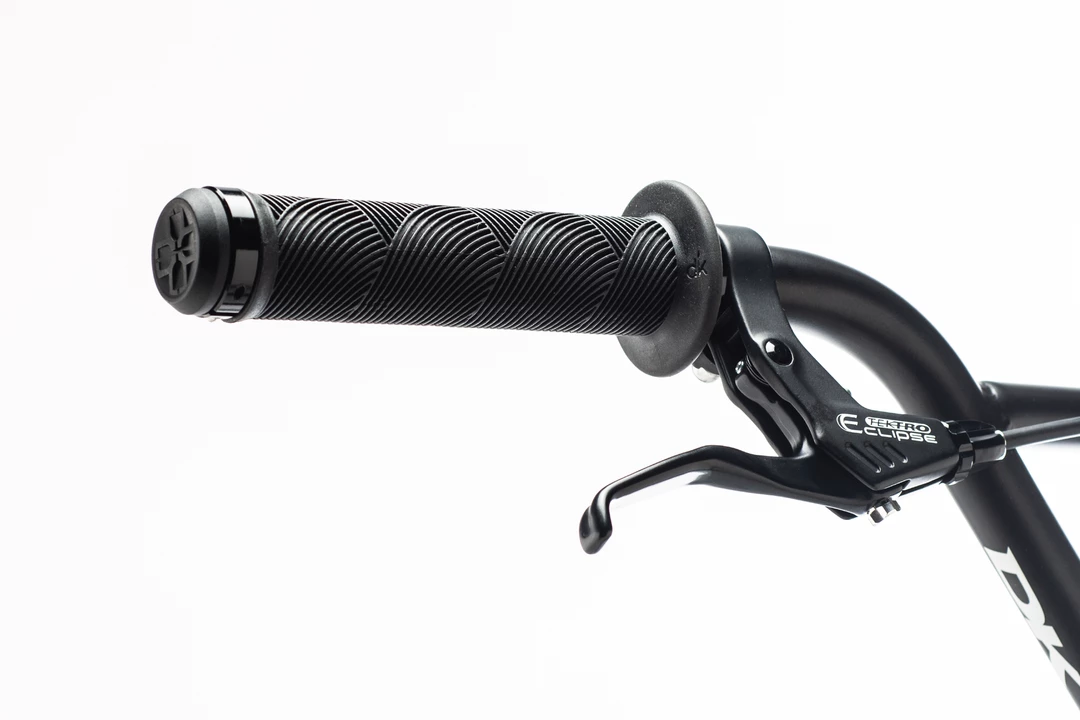

• GRIPS: DK Tsuka lock-on with press-in bar plugs
• STEM: DK forged alloy top load, 50mm reach
• HEADSET: DUO Brand, sealed integrated, tapered

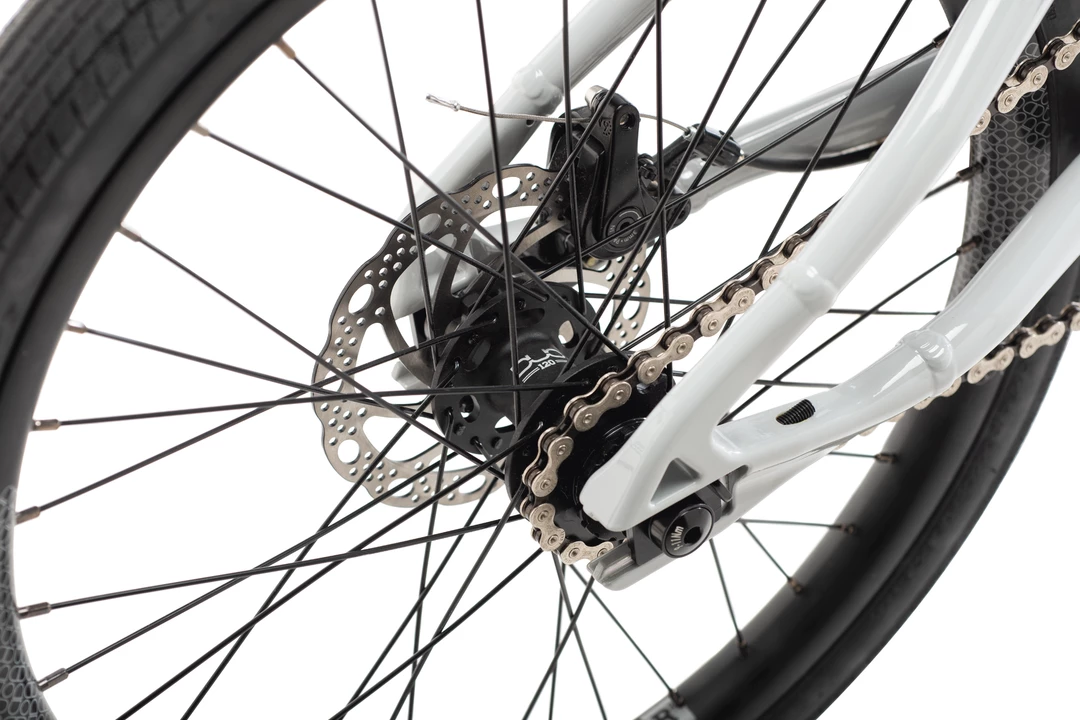

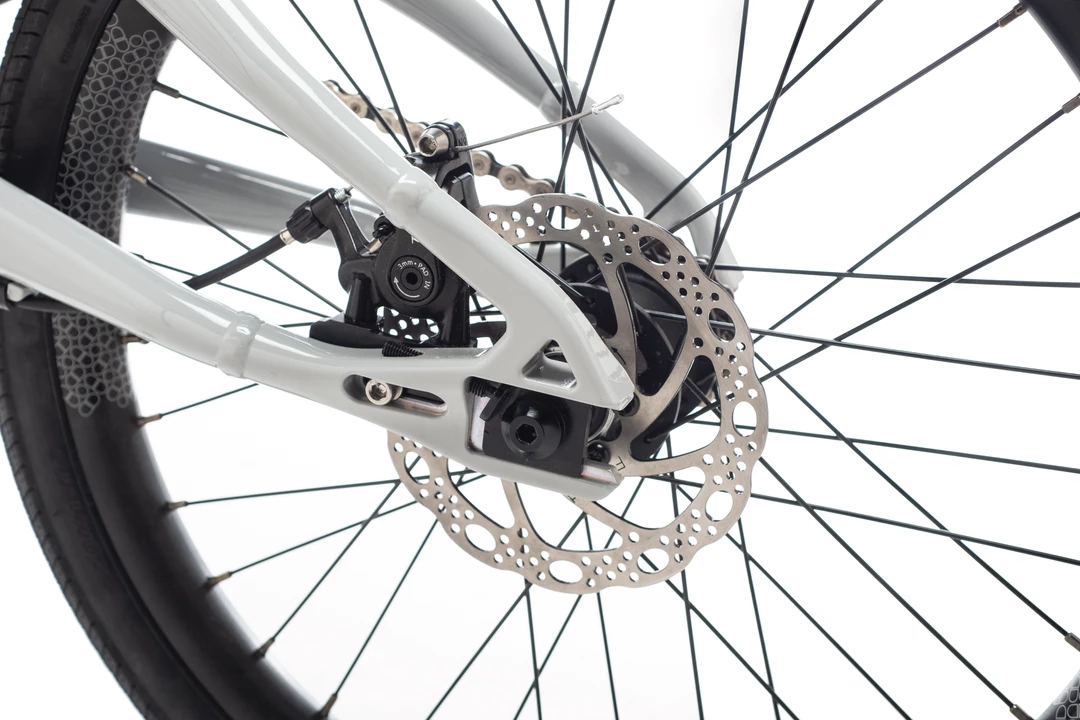

• BRAKE: Tektro dual piston flat mount mechanical disc brake with 140mm rotor
• LEVER: Tektro MT 2.1
• CRANKS: DUO Brand C2 forged hollow alloy 2-piece, 180mm
• BB: European external (outboard)
• SPROCKET: DUO Brand 44-tooth, CNC machined, alloy, 4-bolt chainring
• CHAIN: Taya TB980 3/32”
• PEDALS: DUO Brand Resilite platform
• RIMS: DUO Brand R2, double wall, 36-hole, front and rear specific design

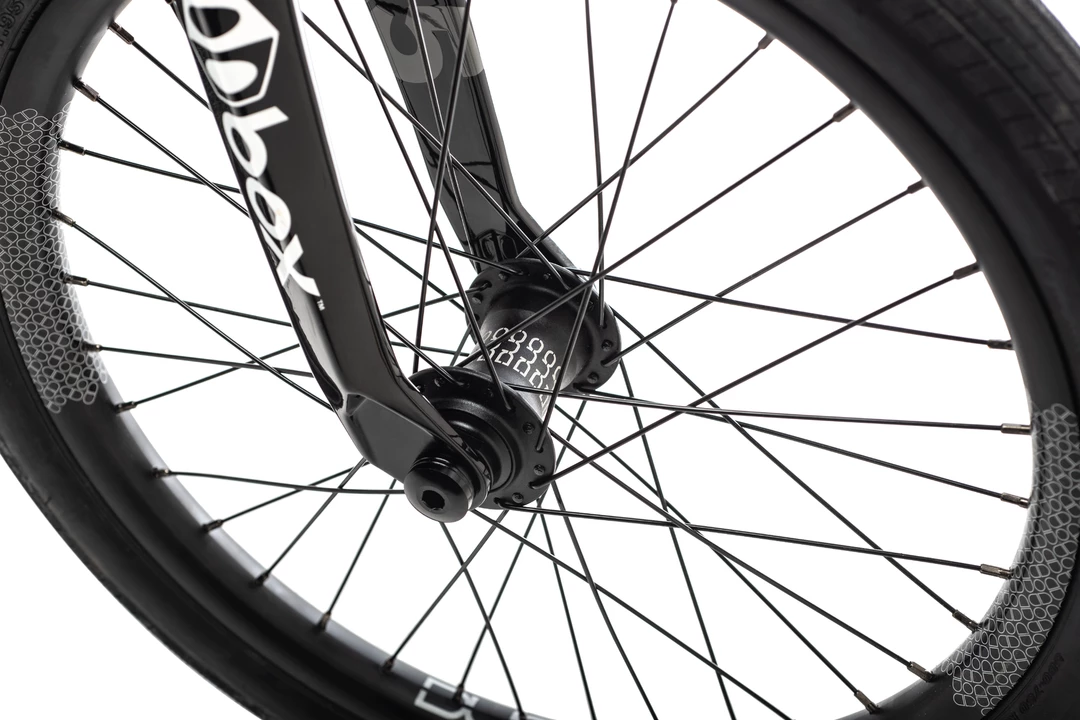

• FRONT HUB: DUO Brand R2, fully sealed, 20mm thru-axle
• REAR HUB: DUO Brand R2 Disc, fully sealed, 15mm thru-axle, 16-tooth cassette with 120 engagement points
• TIRES: 20×1.75” (rear), 20×1.95″ (front) Maxxis Torch

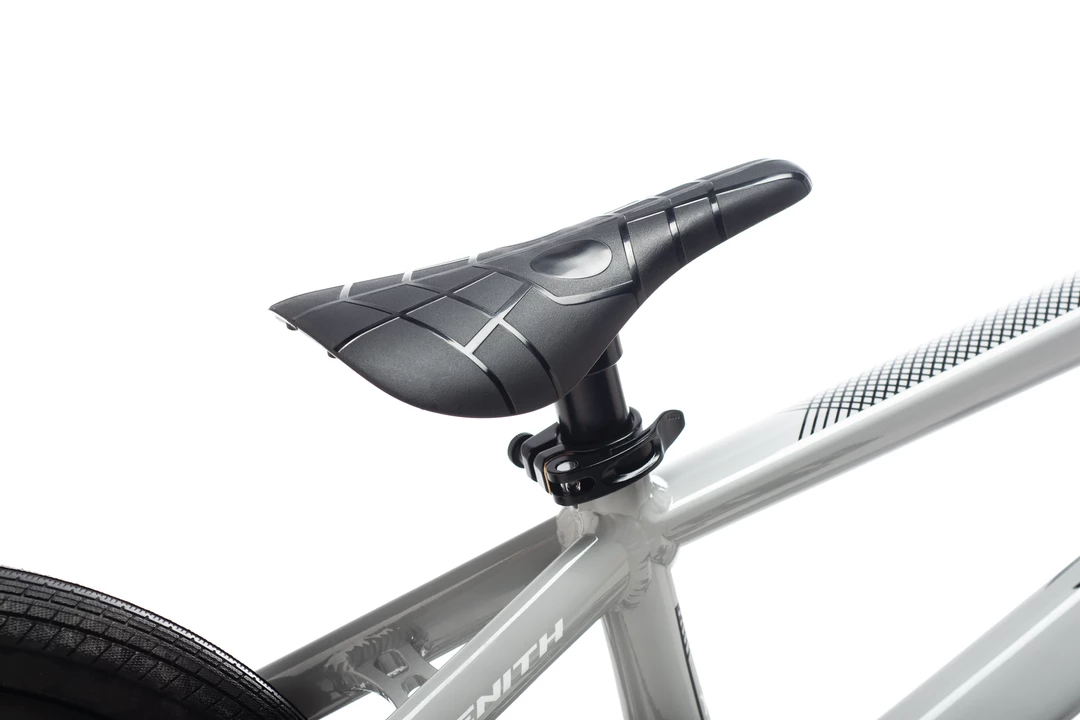

• SEAT: BOX Echelon 1-piece seat/post combo
• SEAT POST: Integrated, 27.2mm, alloy
• SEAT POST CLAMP: Promax quick-release
