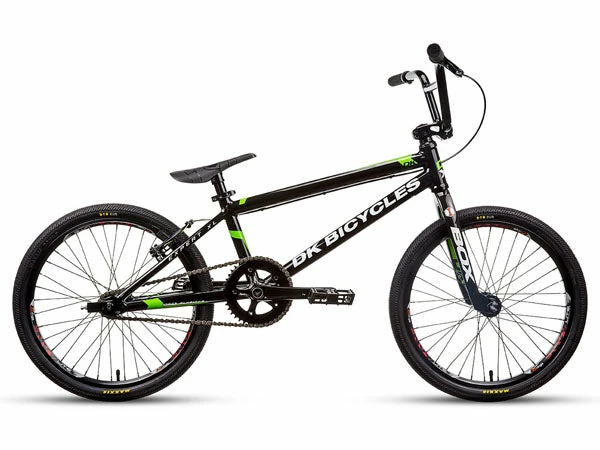

DK Elite Bike-Expert XL-Black

The DK Bicycles 2014 Elite Expert XL BMX bike is a top-notch race machine featuring a lightweight 7005 aluminum frame, BOX XL carbon fork, sealed cassette hubs, double wall SUN rims, sealed integrated headset. BOX Echlon seat and post combo along with Maxxis DTH tires and Promax brake kit.

FRAME SPECS:
Top tube Length: 20.25″
Chainstay Length: 14.25”
Headtube Angle: 73°
Seattube Angle: 69°
Recommended Rider Height: 4′ 10″ – 5′ 5″

FRAME: 7005 Alloy with Integrated HS, Euro BB, 3D dropouts
FORK: BOX XL Carbon, 1-1/8” alloy steer tube, 20mm axle, Box Zero spacers
BARS: 100% Chromoly 6.5” x 28”, 11° back, 2° up 2pc design with welded crossbar
CRANKS: 2pc 170mm Alloy with 24mm hollow spindle, sealed outboard BB
STEM: CNC Alloy Top Load 1-1/8” 50mm
HEADSET: Sealed 1 1/8” 45/45 Integrated
GEAR: Alloy 41T 4-bolt front, 15T cassette, Promax tensioner, KMC 810 3/32” Dropbuster
RIMS: Sun Envy Lite Double Wall 36H Alloy
HUBS: BOX Sealed with 20mm front Axle, Alloy sealed rear cassette
TIRES: Maxxis DTH 20 x 1.5
BRAKES: Promax Linear with Green Airflow Pads, Promax V point lever with grip lock
GRIPS: Promax Lock-on
PEDALS: DK PC Platform
SEAT: BOX Echelon 1pc combo, 27.2 Alloy post, Promax quick release clamp

WEIGHT:    17lbs 13oz

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
