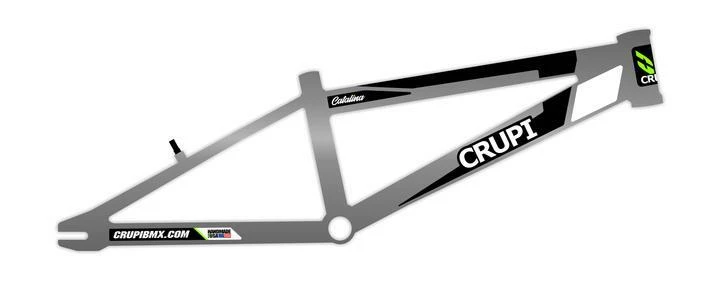

Crupi 2019 Catalina Frame-Chrome/Black FRAMES

Introducing the 2019 Catalina Race Frame! Complete with the newly redesigned race graphics.

This frame is super light with all the right geometry and specs to let even the littlest of ones perform to their best ability.

This all American made frame is constructed of high grade 6061-T6 Aluminum and features a butted top and down tube. These butted tubes maintain our frames strength and stiffness at the headset and bottom bracket while cutting down on weight. Undeniable race proven reliability!



Micro Mini Junior Expert Expert XL   Rider Size 4′ 2″ & smaller 4′ 3″- 4′ 5″ 4′ 5″- 4′ 7″ 4′ 7″- 5′ 1″ 5′ 1″ – 5′ 5″   Top Tube Length 16.75″ 17.75 18.50 19.50 20.25   Rider Area 17.75″ 18.50 19.25 19.75 20.75   Head Angle 70 72 72 72 73   Head Tube Size 1″ Integrated 1″ Integrated 1″ Integrated 1″ Integrated 1-1/8″ Integrated   Seat Tube Angle 70 68 68 68 68   Seat Tube Length 7 8.25 8.25 8.25 9.5   Seat Tube Size 22.2mm 22.2mm 22.2mm 22.2mm 22.2mm   Seat Clamp Size 25.4mm 25.4mm 25.4mm 25.4mm 25.4mm   Bottom Bracket Height 10.50 11.00 11.00 11.00 11.00   Min/Max Rear Length 11.5″ – 13″ 12.5″ – 14″ 12.5″ – 14″ 12.5″ – 14″ 13″ – 14.5″   Wheels 20 x 1-1/8″ 20 x 1-1/8″ 20 x 1-1/8″ 20 x 1-1/8″ 20 x 1-3/8″   Frame Weight 2.04lbs 2.06lbs 2.07lbs 2.07lbs 3.01lbs                   Expert XXL Pro Pro XL Pro 2X Pro 3X   Rider Size 5′ 3″ +  5′ 3″ +  5′ 5″ +  6′ +  6’3″ +    Top Tube Length 20.50 20.50 21.25″ 22.00 22.75   Rider Area 21.625 21.25 22.00 22.25 22.75   Head Angle 74 74 74 74 74   Head Tube Size 1-1/8″ Integrated 1-1/8″ Integrated 1-1/8″ Integrated 1-1/8″ Integrated 1-1/8″ Integrated   Seat Tube Angle 71 71 71 71 71   Seat Tube Length 9.5 9.5 9.5 9.5 9.5   Seat Tube Size 22.2mm 26.8mm 26.8mm 26.8mm 26.8mm   Seat Clamp Size 25.4mm 31.8mm 31.8mm 31.8mm 31.8mm   Bottom Bracket Height 11.60 11.60 11.60 11.60 11.60   Min/Max Rear Length 13″ – 14.5″ 13.5″ – 15.25″ 14.25″ – 15.75″ 14.25″ – 15.75″ 14.25″ – 15.75″   Wheels 20 x 1-3/8″ 20 x 1.50/1.75 20 x 1.75 20 x 1.75 20 x 1.75   Frame Weight 3.02lbs 3.08lbs 3.09lbs 3.11lbs 3.12lbs     Mini Cruiser Jr Cruiser Ex Cruiser Ex XL Cruiser Pro Cruiser XL Cruiser Rider Size 4′ 3″- 4′ 5″ 4′ 5″- 4′ 7″ 4′ 7″- 5′ 1″ 5′ 1″ – 5′ 5″ 5′ 4″ + 6′ +  Top Tube Length 17.75 18.50 19.625″ 20.625″ 21.25 22.75 Rider Area 20.25 21.00 21.375 22.50 22.50 23.50 Head Angle 71 72.5 72.5 73 74 74 Head Tube Size 1″ Integrated 1″ Integrated 1″ Integrated 1-1/8″ Integrated 1-1/8″ Integrated 1-1/8″ Integrated Seat Tube Length 8.875 8.875 8.875 9.5 11.25 11.25 Seat Tube Angle 70 71 71 73 71 71 Seat Tube Size 22.2mm 22.2mm 22.2mm 22.2mm 26.8mm 26.8mm Seat Clamp Size 25.4mm 25.4mm 25.4mm 25.4mm 31.8mm 31.8mm Bottom Bracket Height 10.75 11.00 11.50 11.50 12.00 12.00 Min/Max Rear Length 14″ – 15.5″ 14″ – 15.5″ 14″ – 15.5″ 14.5″ – 16″ 15″ – 16.5″ 15″ – 16.5″ Wheels 24 x 1-1/8″ 24 x 1-1/8″ 24 x 1-1/8″ 24 x 1-3/8″ 24 x 1.50/1.75 24 x 1.75 Frame Weight 2.08lbs 2.09lbs 2.09lbs 3.02lbs 3.09lbs 3.10lbs * Measurments done by hand & can vary.  Rider area is based on down tube length
