COMPONENTS Shimano Deore M6100 Hydraulic Disc Brake And Lever

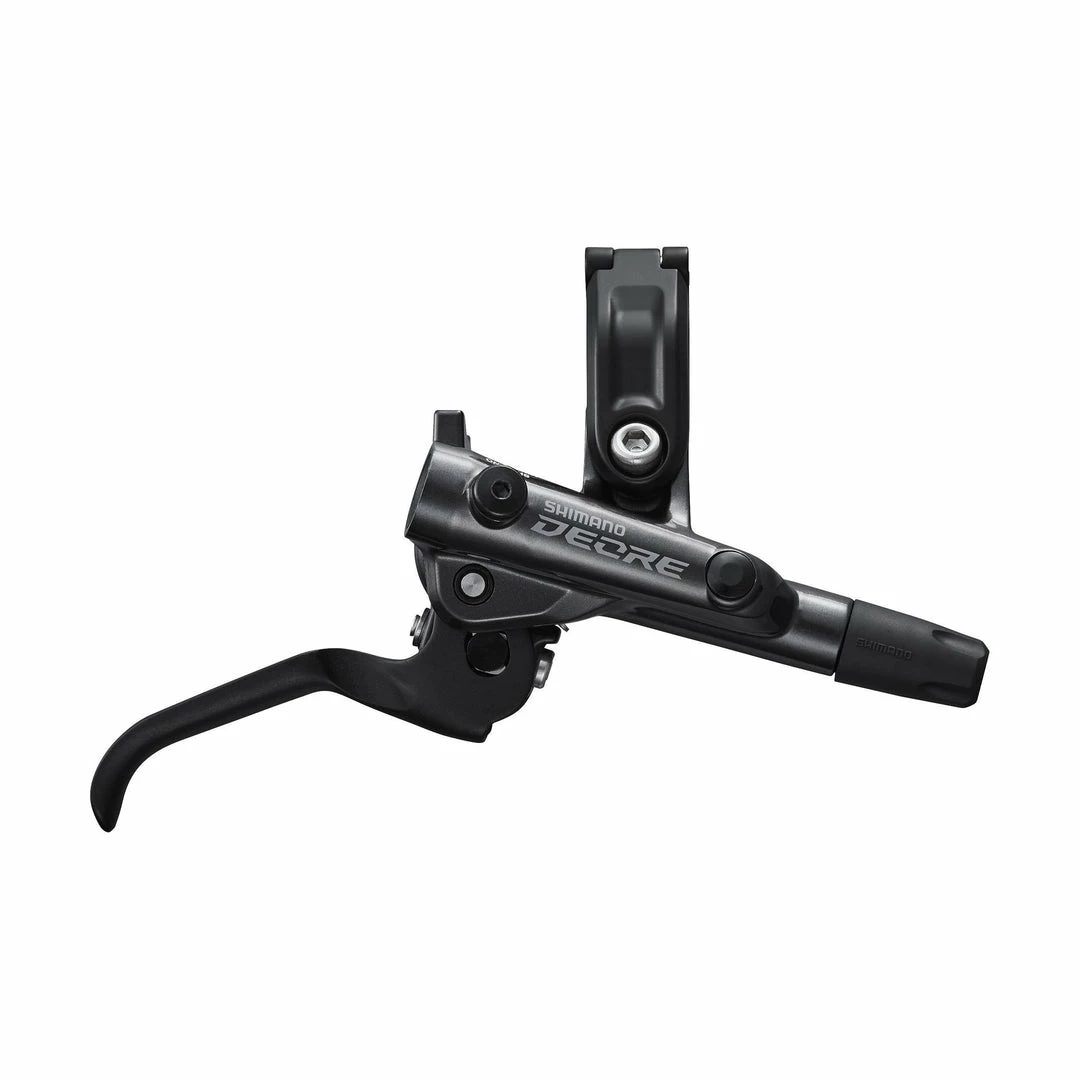

BL-M6100: SHIMANO DEORE – Hydraulic Disc Brake Lever – I-SPEC EV

With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.

BL-M6100 FEATURES

• Intuitive and powerful braking
• Quicker brake engagement with shorter free stroke
• Rider tunable and action-optimized cockpit
• High-performance brake control
• Additional contact point for a stiffer brake lever
• 10 deg. rotation angle setting range for I-SPEC EV shifting lever

BL-M6100 SPECIFICATIONS

• MODEL NO: BL-M6100
• SERIES: DEORE M6100 Series
• BRAKE HOSE COLOR (KIT): Black
• BRAKE HOSE (KIT): SM-BH90-SS
• BRAKE TYPE: Hydraulic disc brake
• HOSE JOINT: Straight
• COMPATIBLE SHIFT LEVER MOUNT_I-SPEC EV: ✓
• FUNNEL BLEEDING: ✓
• J-KIT SPEC (FOR OEM): ✓
• LEVER SIZE (FINGER): 2
• OIL: SHIMANO Mineral
• REACH ADJUST_TOOL: ✓
• RECOMMENDED BRAKE CALIPER: BR-M6100 BR-M6120
• SERVO WAVE: ✓
• COMPATIBLE SHIFT LEVER MOUNT_CLAMP BAND: ✓
• CLAMP BAND_OPEN CLAMP: ✓
• SHIFT LEVER ROTATION ANGLE ADJUST RANGE (I-SPEC EV ; DEG.): 10

---

BR-M6100: SHIMANO DEORE – 2-Piston – ICE TECHNOLOGIES – Hydraulic Disc Brake Caliper

The SHIMANO DEORE M6100 caliper features lightweight braking performance and reliable stopping power in all conditions.

BR-M6100 FEATURES

• Superior modulation gives you the power you need at low weight
• Quick piston retraction
• Lightweight 2-piston disc brake caliper

BR-M6100 SPECIFICATIONS

• MODEL NO: BR-M6100
• SERIES: DEORE M6100 Series
• REMARKS *: Only compatible with resin pad
• ICE TECHNOLOGIES PAD COMPATIBLE CALIPER: ✓
• BRAKE HOSE COLOR (KIT): Black
• BRAKE HOSE (KIT): SM-BH90-SS
• BRAKE TYPE: Hydraulic disc brake
• CALIPER FIXING BOLT_ANTI LOOSEN METHOD: Snap ring
• CALIPER FIXING BOLT_TOOL SIZE: 5 mm
• HOSE JOINT: Straight
• MOUNT TYPE: Post-type
• ONE WAY BLEEDING: ✓
• PAD_OPTION: G04S Metal
• PAD_STANDARD: G03S Resin | J03A Resin
• PAD MOUNT: Split pin Stainless Steel
• PISTON: 2
• RECOMMENDED BRAKE LEVER: BL-M6100
• RECOMMENDED DISC BRAKE ROTOR: SM-RT54* SM-RT56* SM-RT64 SM-RT66
• J-KIT SPEC (FOR OEM): ✓
• OIL: SHIMANO Mineral
• COMPATIBLE BRAKE ROTOR SIZE_140 MM (SS): ✓
• COMPATIBLE BRAKE ROTOR SIZE_160 MM (S): ✓
• COMPATIBLE BRAKE ROTOR SIZE_180 MM (M): ✓
• COMPATIBLE BRAKE ROTOR SIZE_203 MM (L): ✓
• PAD_OPTION 1: G04S Metal
• PAD_STANDARD 1: G03S Resin
• PAD_STANDARD 2: J03A Resin
