Sale!

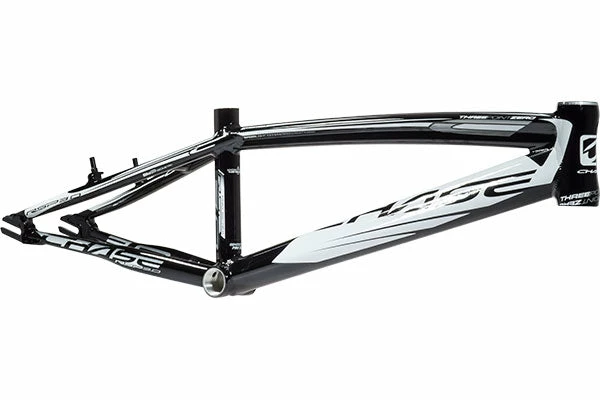

CHASE BICYCLES FRAMES Chase RSP 3.0 BMX Race Frame-Black/White

CHASE BICYCLES FRAMES Chase RSP 3.0 BMX Race Frame-Black/White

Name: Multi-functional design CHASE BICYCLES FRAMES Chase RSP 3.0 BMX Race Frame-Black/White at Thebicyclesins.com
SKU: chase-bicycles-3526820233288
Price: 92.99 USD
Availability: InStock

Original price was: $519.95.Current price is: $92.99.

Frame Size

Clear

SKU: chase-bicycles-3526820233288 Categories: FRAMES, Race Frames Tags: 26380828744out-of-stock, Bmx-frames, Bmx-race-frames, Chase, Discontinued, Discountable, Frames, Location_Trailer

Shop with Zero Worries
Online assistance, always just a message away.
Quick responses, top-notch service.
Shop with ease, buy with confidence.

After a long process, Chase decide to make on of the biggest changes they have done so far on any RSP frame, adding on the Aero System Seat Tube, in addition, they improved the look with a refined top tube, and a updated Chain Stays on the Mini & Expert Frames.

Aero Seat Post sizes:
Mini, Junior and Expert Frames use a 25.4 ELEVN Aero Post and QR Seat Clamp
Expert XL and above all use a 27.2 ELEVN Aero Post and QR Seat Clamp

Frame Size	TT	CS min	LR	AF	SA	HT	SPL	BBH	Wheels	Weight	Rider Area
Mini	18″ 457.2 mm	12.75″ 324 mm	1.5″ 38.1 mm	73°	70°	4.5″ 115 mm	8.3″ 210.8 mm	10.6″ 269.2 mm	20×1-1/8″	1215 Grs 2 lbs 10 oz	18.32″ 465.33mm
Junior	19″ 482.6 mm	13″ 330.2 mm	1.5″ 38.1 mm	73°	70°	4.5″ 115 mm	8.8″ 223.5 mm	10.6″ 269.2 mm	20×1-1/8″	1236 Grs 2 lbs 11 oz	19.27″ 489.49 mm
Expert	19.50″ 495.3 mm	13″ 330.2 mm	1.5″ 38.1 mm	73°	70°	4.7″ 120 mm	8.8″ 223.5 mm	11″ 279.4 mm	20×1-3/8″	1275 Grs 2 lbs 13 oz	19.69″ 500.10 mm
Expert XL	20″ 508 mm	13.5″ 342.9 mm	1.5″ 38.1 mm	73°	70°	4.7″ 120 mm	8.8″ 223.5 mm	11″ 279.4 mm	20×1-3/8″	1450 Grs 3 lbs 3 oz	20.31″ 516.02 mm
Pro	20.50″ 520.70 mm	14.25″ 362.0 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1500 Grs 3 lbs 4 oz	20.76″ 527.51mm
Pro +	20.75″ 527.05 mm	14.25″ 362.0 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1505 Grs 3 lbs 5 oz	21.05″ 534.77mm
Pro XL	21″ 533.4 mm	14.3″ 363.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1520 Grs 3 lbs 5.5 oz	21.28″ 540.63 mm
Pro XL+	21.25″ 539.75 mm	14.5″ 368.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1525 Grs 3 lbs 5.7 oz	21.51″ 546.50 mm
Pro XXL	21.50″ 546.1 mm	14.5″ 368.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1530 Grs 3 lbs 5.9 oz	21.74″ 552.37 mm
Pro XXL +	21.75″ 552.45 mm	14.75″ 374.65 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1535 Grs 3 lbs 6 oz	21.97″ 558.27mm
Pro Cruiser	21.25″ 539.75 mm	15.25″ 387.4 mm	1.5″ 38.1 mm	73°	69.5°	4.7″ 120 mm	10.6″ 269.2 mm	12″ 304.8 mm	24×1.75″	1555 Grs 3 lbs 6.8 oz	22.00″ 558.93 mm
Pro + Cruiser	21.75″ 552.45 mm	15.25″ 387.4 mm	1.5″ 38.1 mm	73°	69.5°	4.7″ 120 mm	10.6″ 269.2 mm	12″ 304.8 mm	24×1.75″	1560 Grs 3 lbs 7 oz	22.44″ 569.95mm

NOTE: Please be sure to add the ELEVN AERO seat post and seat clamp to your order. This frame is not compatible with any other seat post/clamp options.
