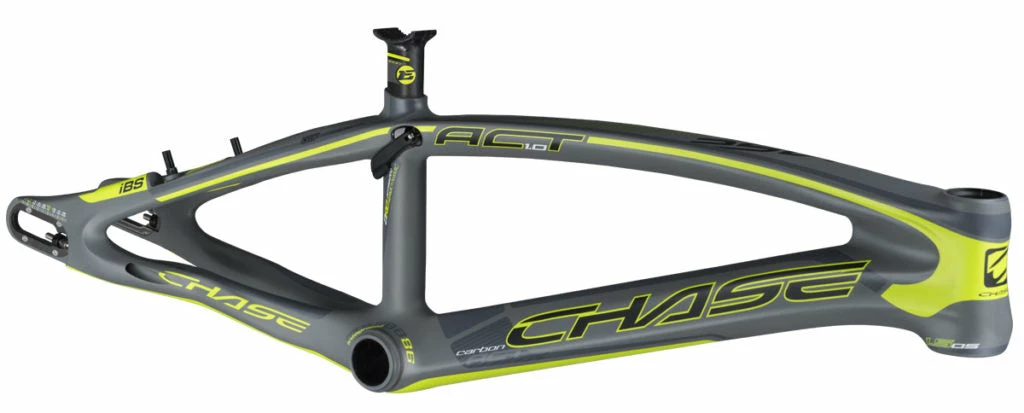

CHASE BICYCLES FRAMES Chase ACT 1.0 Carbon BMX Race Frame-Matte Grey/Neon Yellow

The Chase Act 1.0 Carbon BMX Race Frame-Matte Grey/Neon Yellow is one of the most advanced BMX race frames ever made. Each Act 1.0 frame will come with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g /  2.12 oz), has an Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm, letting you choose the type of rear hub to use with your new frame.

• Carbon Monocoque Frame featuring Uni-Directional carbon technology

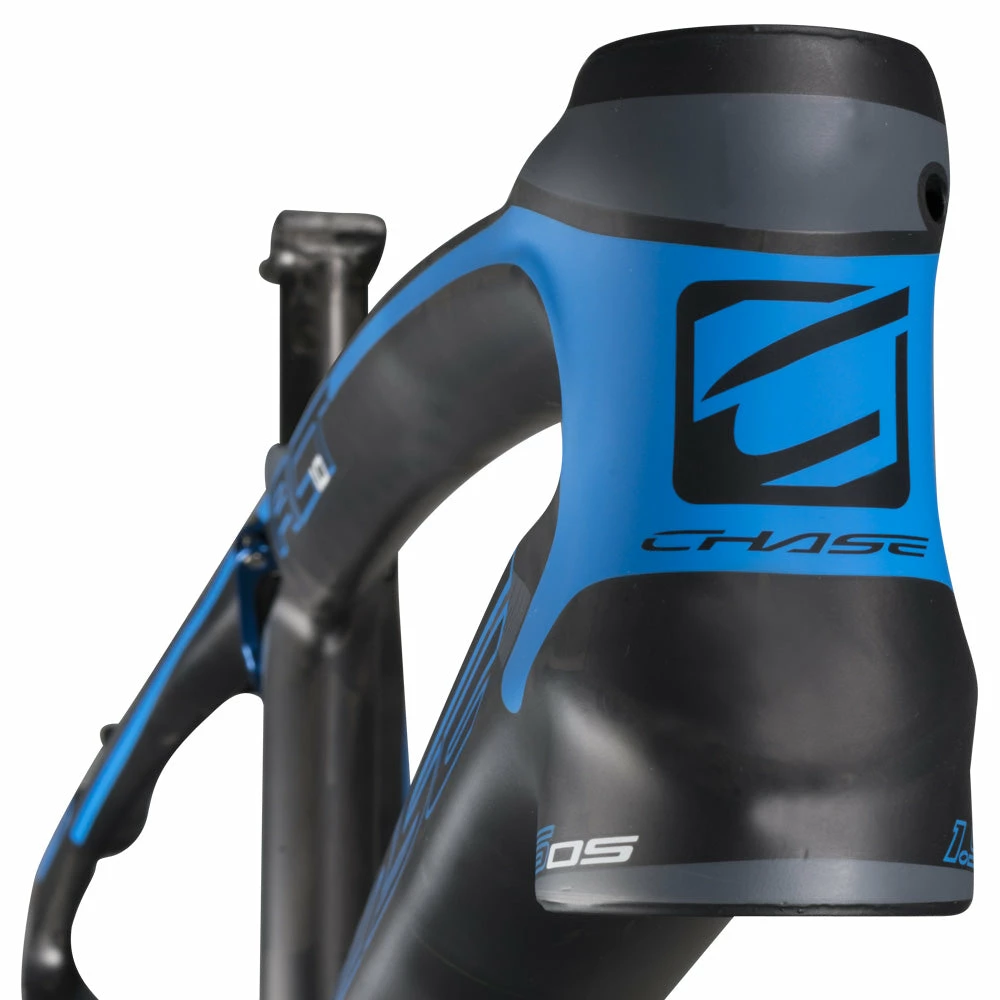

• Integrated Tapered headset 1.5” OS bottom and 1-1/8” top with reinforced alloy cup
• Integrated Brakes system

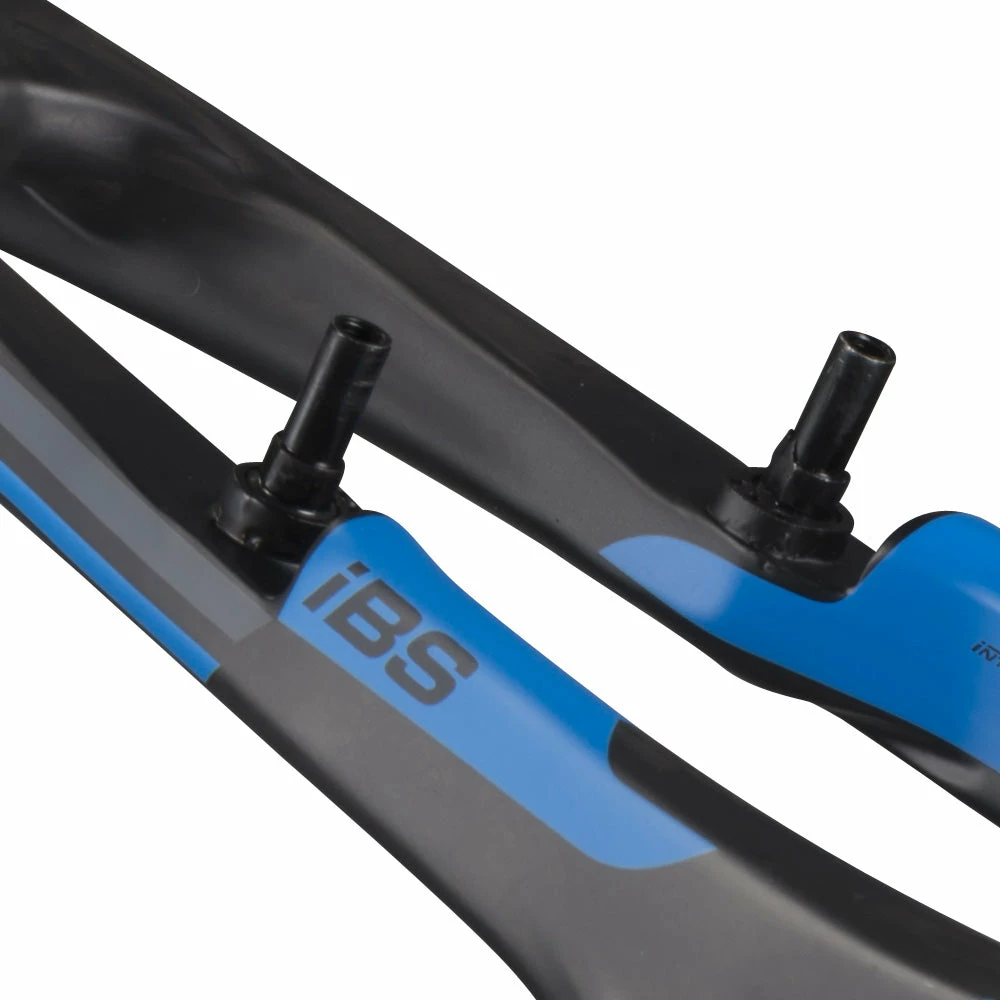

• Internal Brake Cable routing and recessed brake bosses
• Optimized AeroDynamic

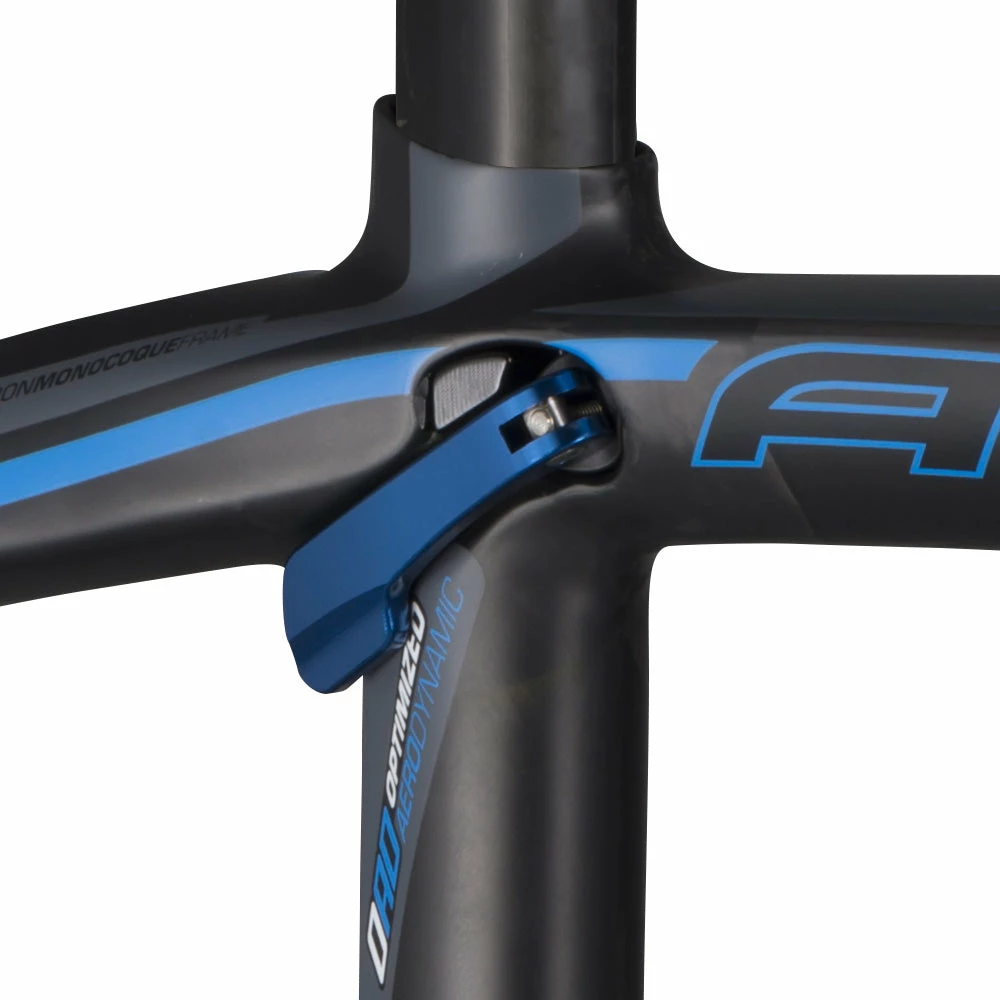

• Chase Aero seat post technologies with an Integrated Quick Release seat clamp

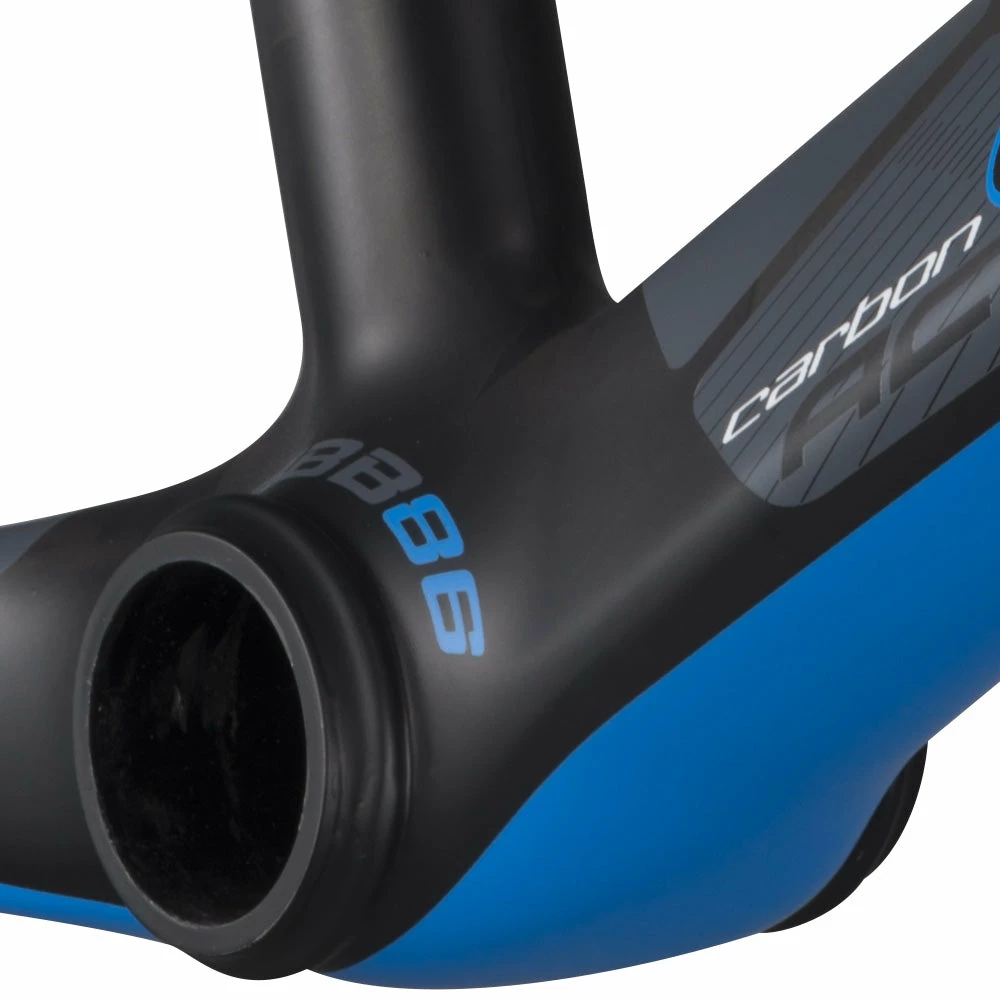

• Press Fit Integrated BB86 Bottom Bracket
• with reinforced alloy cup

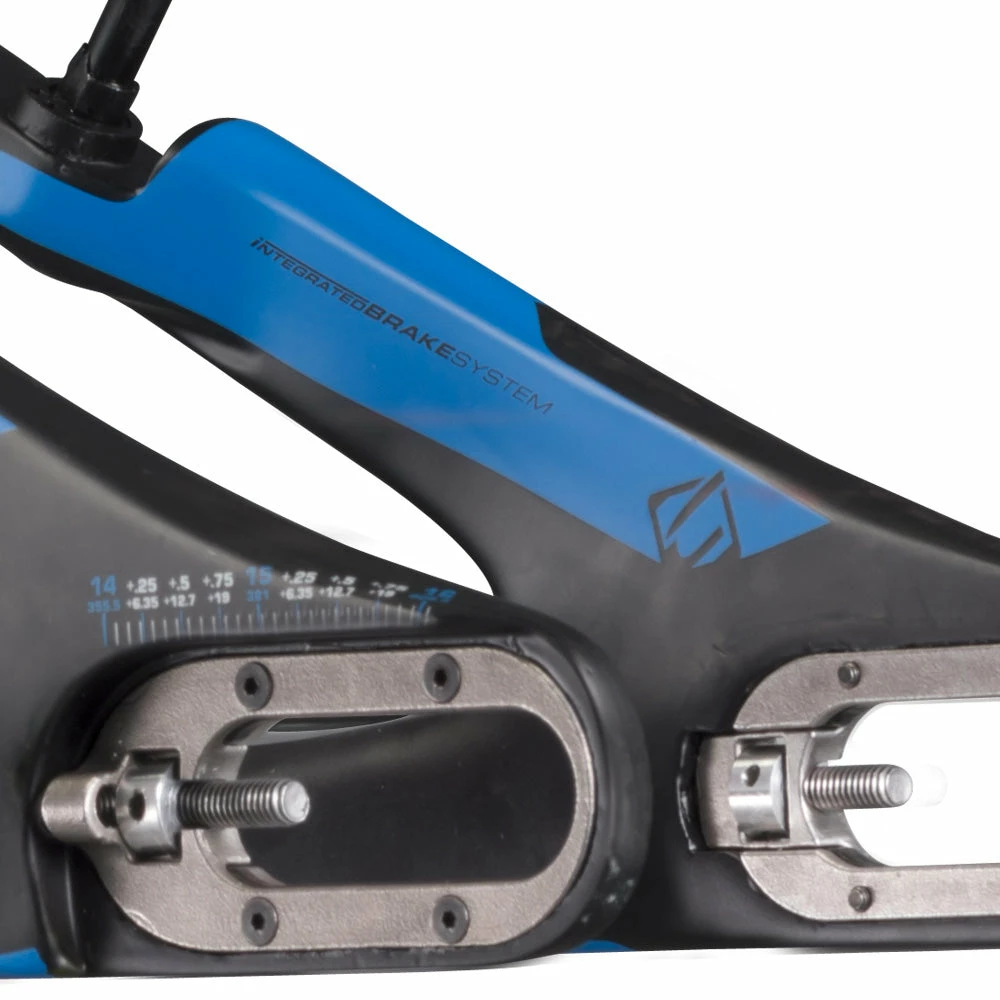

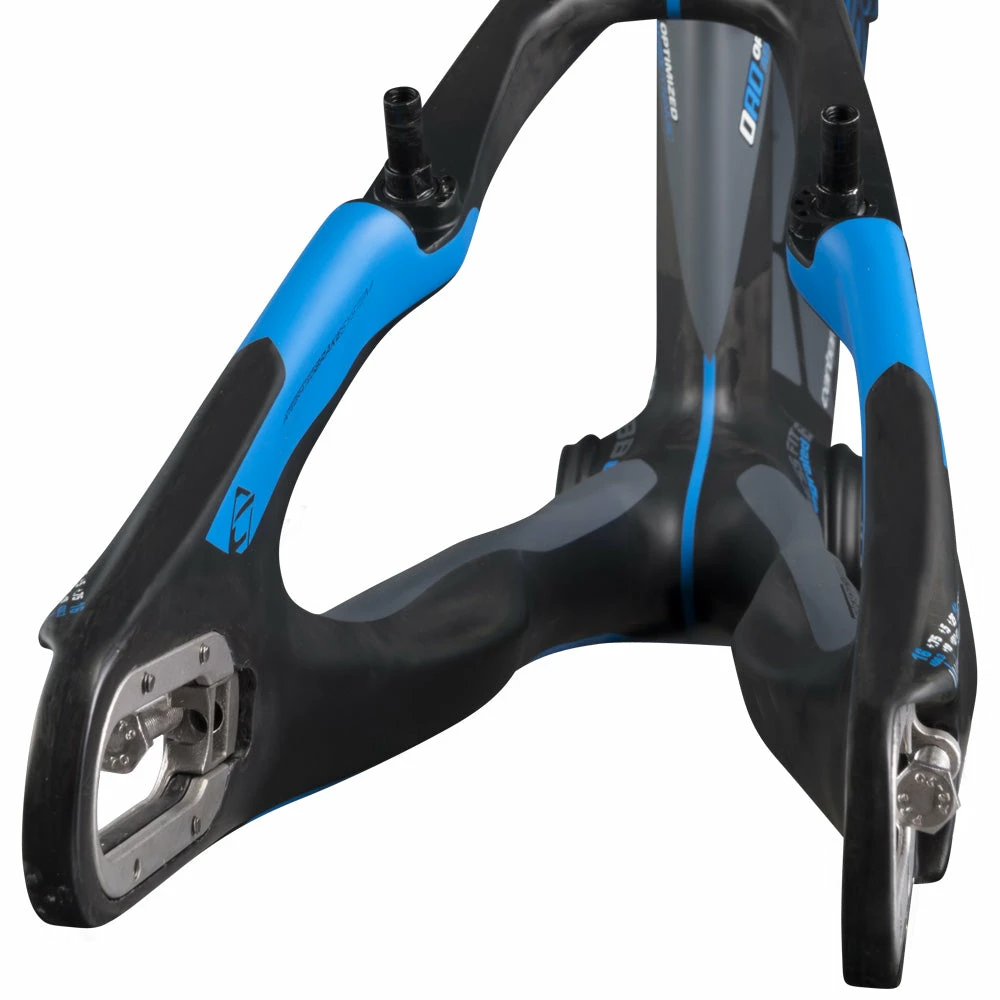

• Extra length reinforced stainless steel 20mm drop out with built-in alloy tensioner, also included is a 10mm (3/8) axle adapter.

Frame Size TT CS min LR AF SA HT SPL BBH Rider Area Weight Pro 20.50″ 520.70 mm 14.25″ 362.0 mm 2.36″ 60 mm 74° 72.5° 4.7″ 120 mm 9.3″ 236.2 mm 11.5″ 292.1 mm 20.66″ 524.98mm 1039 grams 2 lbs 4.65 oz Pro + 20.75″ 527.05 mm 14.25″ 362.0 mm 2.36″ 60 mm 74° 72.5° 4.7″ 120 mm 9.3″ 236.2 mm 11.5″ 292.1 mm 20.99″ 533.19mm 1062 grams 2 lbs 5.46 oz Pro XL 21″ 533.4 mm 14.25″ 362.0 mm 2.36″ 60 mm 74° 72.5° 4.7″ 120 mm 9.3″ 236.2 mm 11.5″ 292.1 mm 21.24″ 539.61 mm 1085 grams 2 lbs 6.27 oz Pro XL+ 21.25″ 539.75 mm 14.5″ 368.3 mm 2.36″ 60 mm 74° 72.5° 4.7″ 120 mm 9.3″ 236.2 mm 11.5″ 292.1 mm 21.48″ 545.65 mm 1107 grams 2 lbs 7.04 oz Pro XXL 21.50″ 546.1 mm 14.5″ 368.3 mm 2.36″ 60 mm 74° 72.5° 4.7″ 120 mm 9.3″ 236.2 mm 11.5″ 292.1 mm 21.74″ 552.37 mm 1130 grams 2 lbs 7.86 oz

Frames Weights listed are without the seat post, seat clamp, and chain tensioners.
