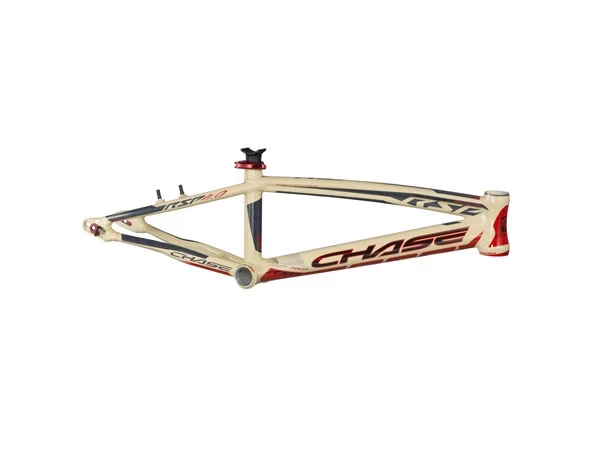

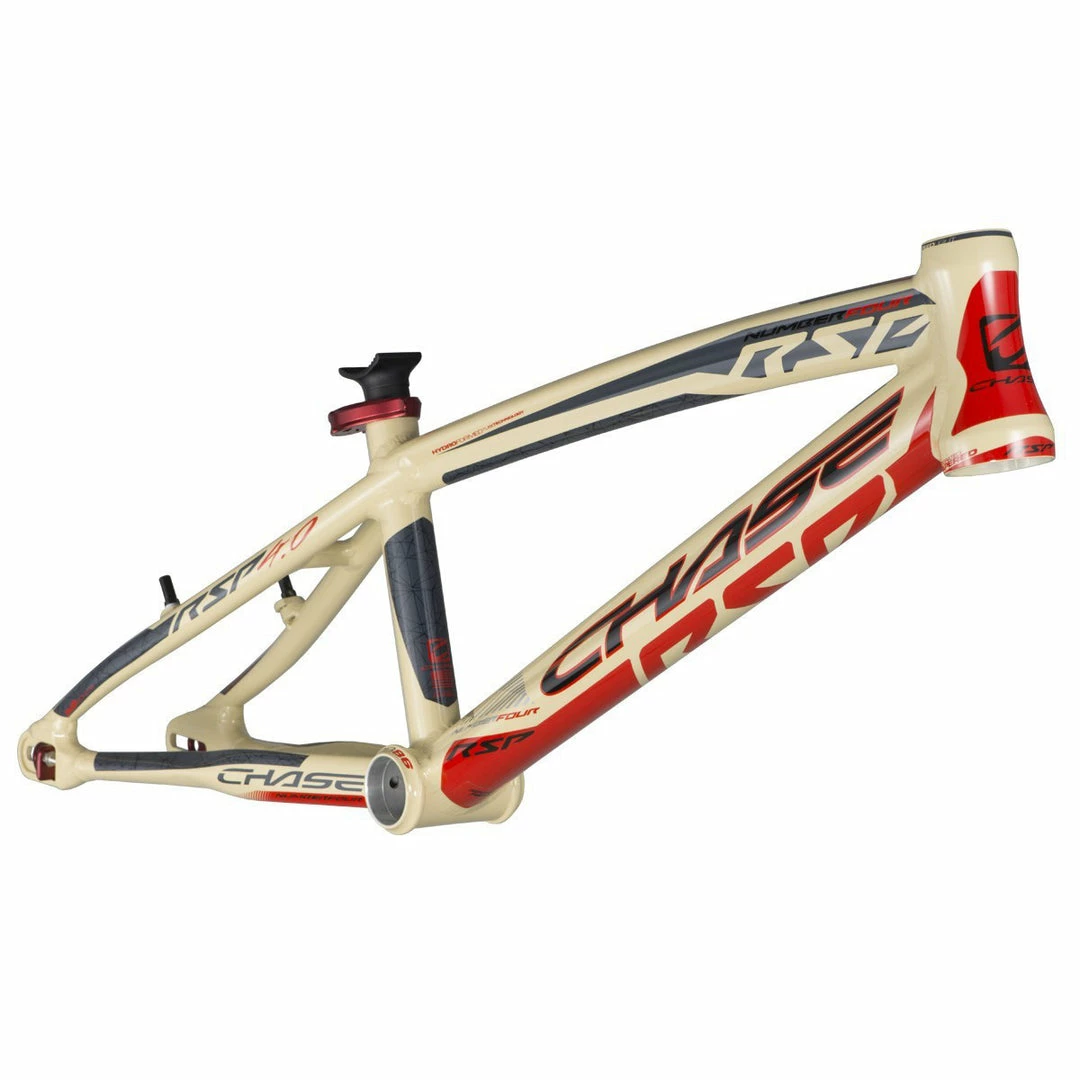

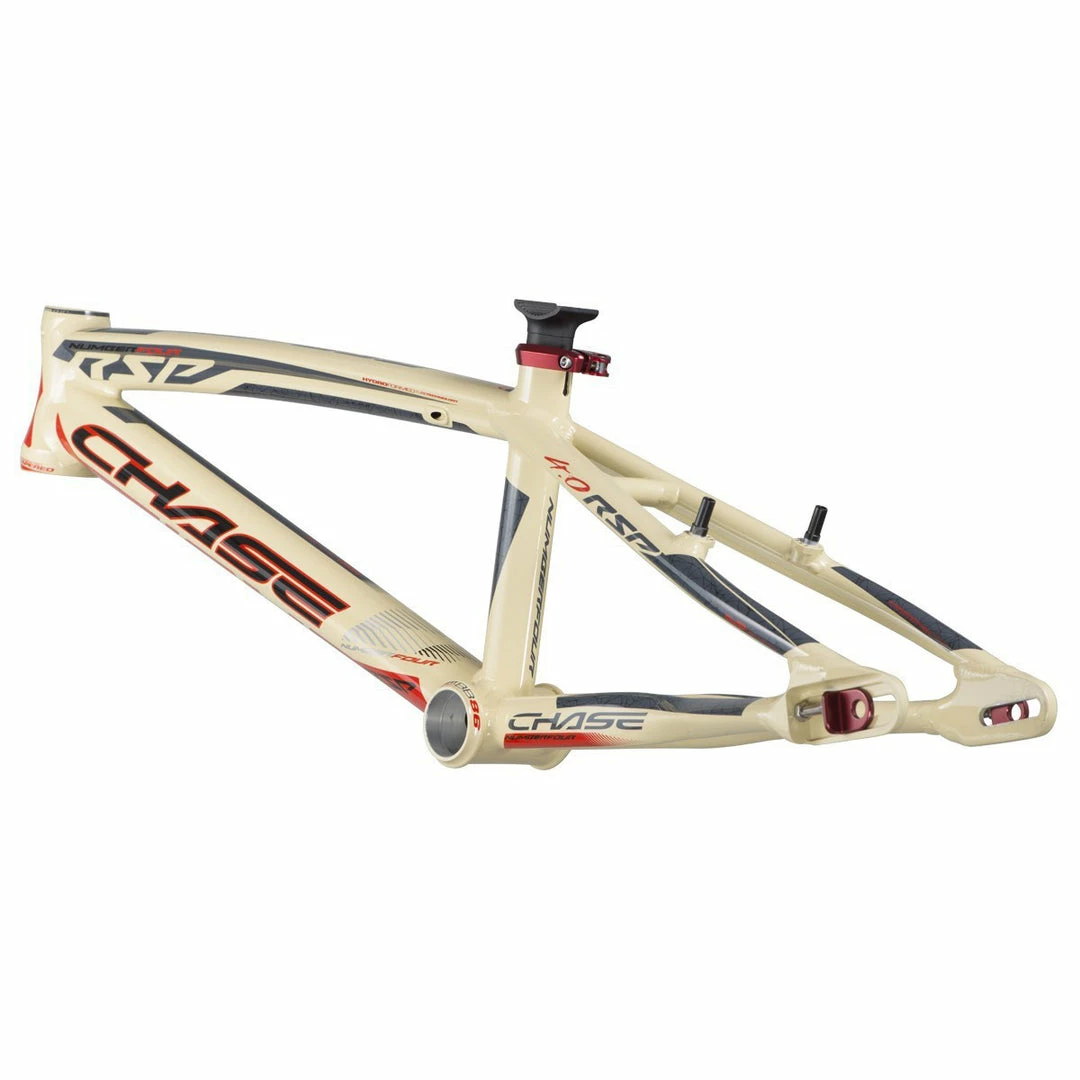

CHASE BICYCLES Chase RSP4.0 BMX Bike Frame-Sand/Red

The CHASE RSP 4.0 starts off with the Olympic and World Championship geometry that Chase Pro Riders Connor Fields and Joris Daudet have been winning on for years. The triple butted tubing keeps the weight down and the strength at an Elite level. The Aero Seat Post/Clamp system and the internal brake cable give the RSP 4.0 a clean, factory look, to match the all new graphics and colors!

But here is where the RSP 4.0 gets really exciting – with the addition of new technical advancements on the Expert XL and larger size frames. These include a new enclosed dropouts with integrated 10mm (3/8″) chain tensioner system*, a integrated 1-1/8″-1.5″ tapered head tube, a press Fit BB86 Bottom Bracket, and the RSP 4.0 has been specifically designed to work with 120mm Disc brakes or traditional V brakes, with the optional ELEVN Disc Brake adaptor and 120mm Disc. For the RSP 4.0, we are excited to offer 2 new frames sizes – XXXL and Expert Cruiser. Also, the RSP 4.0 Frames are delivered to you with the 27.2 Aero Seat Post and Seat Post clamp and no additional cost!

The Mini, Junior, and Expert sized frames are 200 grams lighter than the RSP 3.0 and also include the 25.4 Aero Seat Post and Seat Clamp. These frames also feature a traditional Euro BB, Open Drop out design, and a standard 1-1/8″ intergrated headtube.

Put this all together and you get the best Alloy BMX frame ever created.

* For Chase RSP 4.0 frames sizes Expert XL and above, please not the Enclosed drop out on the frame will only work with hubs where the 3/8″ (10mm) axle bolts remove from the hub.

SIZES

• 11 OPTIONS IN 20″ FRAMES: Mini, Junior, Expert, Expert XL, Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+, and Pro XXXL
• 3 OPTIONS IN 24″ FRAMES: Expert Cruiser and Pro or Pro+ Cruiser

WHAT’S INCLUDED

• MINI, JUNIOR, EXPERT FRAMES: Aero 25.4 Seat clamp and seat post
• EXPERT XL AND ABOVE FRAMES: Aero 27.2 Seat clamp and seat post, Chain tensioner system

FEATURES

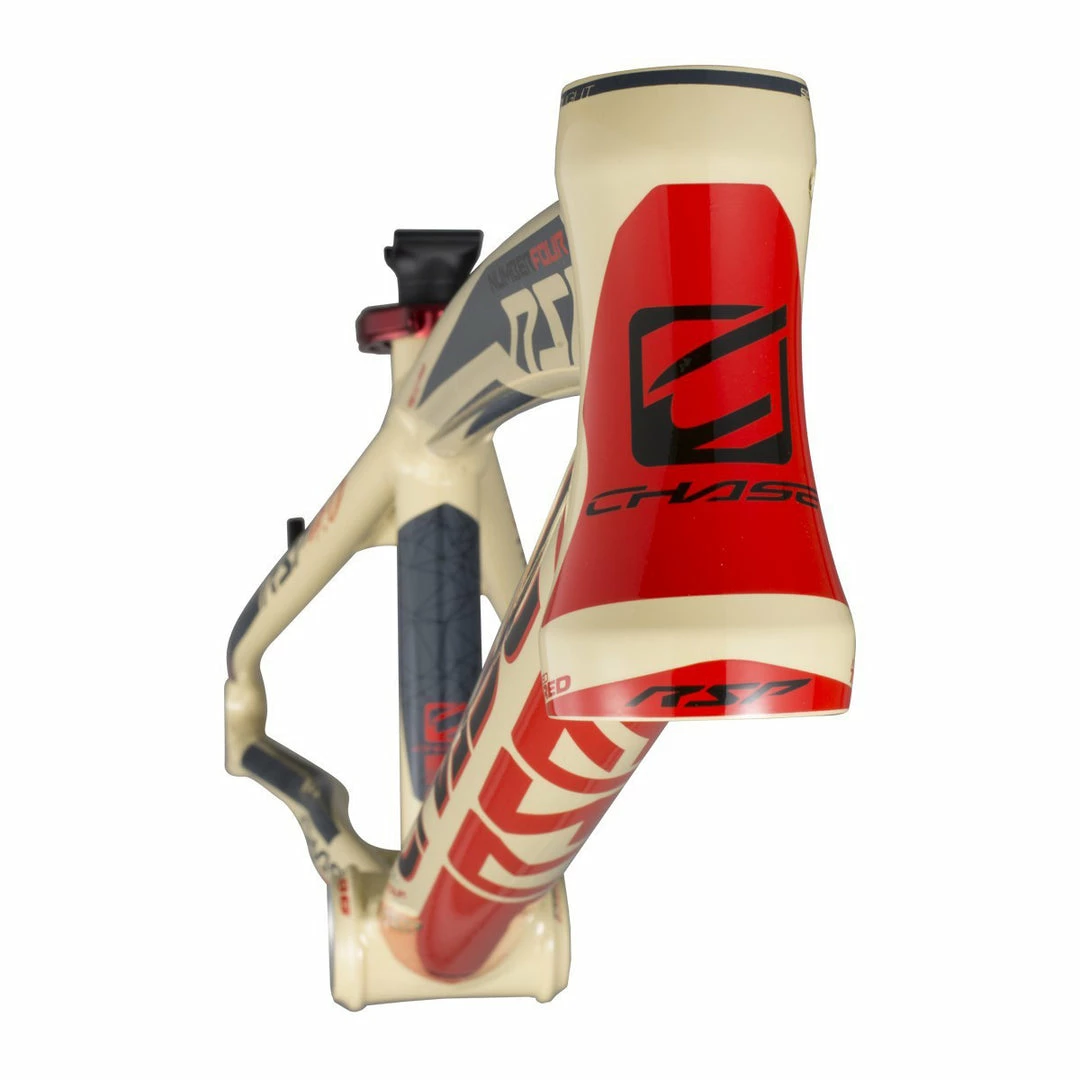

• Integrated Tapered Head Tube 1-1/8” top to 1.5” bottom
• Integrated Cable Routing Brake cable is routed through top tube
• Semi Integrated Brakes Studs Lower position make for a cleaner look when using disc brakes
• Optimized Aero System Chase Aero system seat post and clamp NOW INCLUDED
• Press Fit Integrated BB86 Bottom Bracket
• Extra Length Reinforced Enclosed Dropout with built-in tensioner for 10mm (3/8″) axle

TECHNOLOGIES

• Chase Bicycles utilizes the Aero seat post tube, seat post, and seat post clamp into BMX racing with our RSP 4.0 frames. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help.
• Chase Bicycles utilizes the triple butting on our line of RSP 4.0 frames. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the RSP 4.0 frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the RSP 4.0 frame and against the completion.
• Chase Bicycles utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the entire line of RSP 4.0 frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our frames. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.
• Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.
• Born from some of the best alloys for building BMX race bikes, our special 7005-T6 SpeedLite alloy is the perfect blend for our Hydroforming process, giving the RSP frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.
• Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.
• The Chase RSP 4.0 & ACT 1.0 Frames both use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.
• The Chase RSP 4.0 & ACT 1.0 Frames both use a Integrated Headtube. Tapered head tubes offer a combination for the bearing sizes. Our tapered head tubes have a 1 1/8” upper diameter to 1.5” lower diameter. this allows you to run a tapered steer tube fork, or use a full 1 1/8” fork steer tube, with the offered 1.5” lower bearing, when the headset has an optional 1 1/8” to 1.5” fork race option.

SIZING

Chase RSP 4.0 BMX Bike Frame Geometry

Size	TT	CS Min	LR	AF	SA	HT	SPL	SP	BBH	Weight	Rider Area
Size: Mini	TT: 18″ 457.2 mm	CS Min: 12.75″ 324 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 70°	HT: 4.5″ 115 mm	SPL: 8.3″ 210.8 mm	SP: aero 25.4 mm	BBH: 10.6″ 269.2 mm	Weight: 1136 g 2 lbs 8.07 oz	Rider Area: 18.32″ 465.33 mm
Size: Junior	TT: 19″ 482.6 mm	CS Min: 13″ 330.2 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 70°	HT: 4.5″ 115 mm	SPL: 8.8″ 223.5 mm	SP: aero 25.4 mm	BBH: 10.6″ 269.2 mm	Weight: 1169 g 2 lb 9.24 oz	Rider Area: 18.32″ 465.33 mm
Size: Expert	TT: 19.50″ 495.3 mm	CS Min: 13″ 330.2 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 70°	HT: 4.7″ 120 mm	SPL: 8.8″ 223.5 mm	SP: aero 25.4 mm	BBH: 11″ 279.4 mm	Weight: 1179 g 2 lb 9.59 oz	Rider Area: 19.69″ 500.10 mm
Size: Expert XL	TT: 20″ 508 mm	CS Min: 13.5″ 342.9 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 70°	HT: 4.7″ 120 mm	SPL: 8.8″ 223.5 mm	SP: aero 27.2 mm	BBH: 11″ 279.4 mm	Weight: 1530 g 3 lb 5.97 oz	Rider Area: 20.31″ 516.02 mm
Size: Pro	TT: 20.50″ 520.70 mm	CS Min: 14.25″ 362.0 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1572 g 3 lb 7.45 oz	Rider Area: 20.76″ 527.51 mm
Size: Pro +	TT: 20.75″ 527.05 mm	CS Min: 14.25″ 362.0 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1577 g 3 lb 7.63 oz	Rider Area: 21.05″ 534.77 mm
Size: Pro XL	TT: 21″ 533.4 mm	CS Min: 14.3″ 363.3 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1590 g 3 lb 8.09 oz	Rider Area: 21.28″ 540.63 mm
Size: Pro XL+	TT: 21.25″ 539.75 mm	CS Min: 14.5″ 368.3 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1610 g 3 lb 8.79 oz	Rider Area: 21.51″ 546.50 mm
Size: Pro XXL	TT: 21.50″ 546.1 mm	CS Min: 14.5″ 368.3 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1614 g 3 lb 8.93 oz	Rider Area: 221.74″ 552.37 mm
Size: Pro XXL+	TT: 21.75″ 552.45 mm	CS Min: 14.75″ 374.65 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1618 g 3 lb 9.07 oz	Rider Area: 21.97″ 558.27 mm
Size: Pro XXXL	TT: 22″ 558.8 mm	CS Min: 14.75″ 374.65 mm	LR: 1.5″ 38.1 mm	AF: 74°	SA: 72.5°	HT: 4.7″ 120 mm	SPL: 9.3″ 236.2 mm	SP: aero 27.2 mm	BBH: 11.5″ 292.1 mm	Weight: 1634 g 3 lb 9.64 oz	Rider Area: 22,19″ 563.58 mm
Size: Expert Cruiser	TT: 20.50″ 520.70 mm	CS Min: 14.5″ 368.3 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 70°	HT: 4.5″ 115 mm	SPL: 10″ 254 mm	SP: aero 25.4 mm	BBH: 12″ 304.8 mm	Weight: 1225 g 2 lb 11.2 oz	Rider Area: 21,06″ 535.46 mm
Size: Pro Cruiser	TT: 21.25″ 539.75 mm	CS Min: 15.25″ 387.4 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 69.5°	HT: 4.7″ 120 mm	SPL: 10.6″ 269.2 mm	SP: aero 27.2 mm	BBH: 12″ 304.8 mm	Weight: 1634 g 3 lb 9.64 oz	Rider Area: 22.00″ 558.93 mm
Size: Pro+ Cruiser	TT: 21.75″ 552.45 mm	CS Min: 15.25″ 387.4 mm	LR: 1.5″ 38.1 mm	AF: 73°	SA: 69.5°	HT: 4.7″ 120 mm	SPL: 10.6″ 269.2 mm	SP: aero 27.2 mm	BBH: 12″ 304.8 mm	Weight: 1652 g 3 lb 10.27 oz	Rider Area: 22.44″ 569.95 mm
