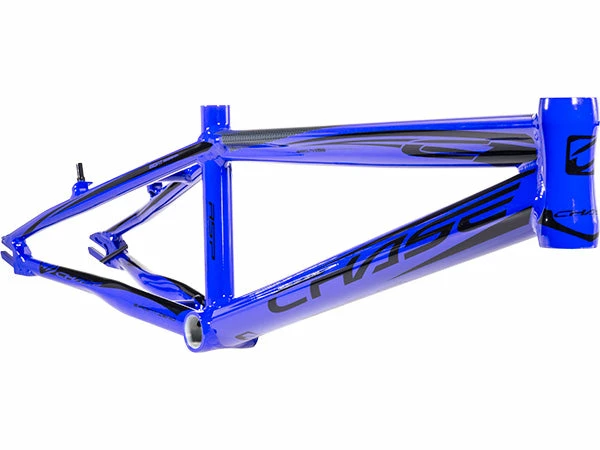

CHASE BICYCLES Chase RSP 2.0 BMX Race Frame-Ltd Ed Blue

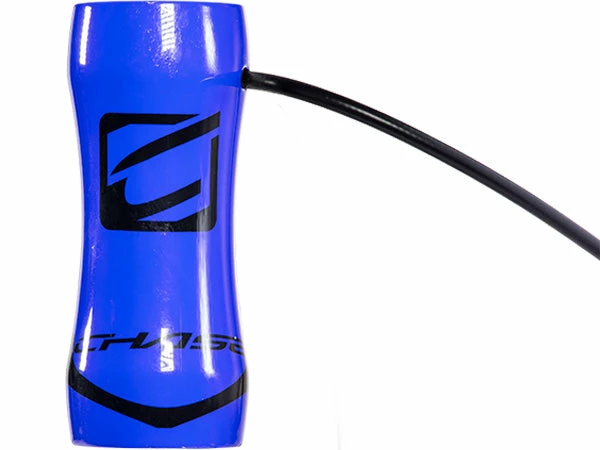

The Chase BMX RSP 2.0 aluminum BMX race frame features refined integrated head tube shape that directs the brake cable routing through it. The Brake cable runs through the head tube, alongside the steer tube, into the top tube and the cable exits in the rear of the top-tube. This gives the frame an ultra-smooth look while hiding the cable (cable housing included and threaded into the frame). The RSP 2.0 also features a refined bottom bracket shell to offer a stiffer design and reduce flex. Chase has also changed the seat stay brace into a unique curve to increase stiffness there as well.

FRAME SPECS (Expert):

• SEAT CLAMP: 1″
• SEAT POST: 22.2mm
• HEADSET: Integrated (requires a “step-down type” integrated headset for use with 1″ forks. All frames (even minis) come with 1-18″ headtube. ACS, ELEVN, and SINZ make a step-down headset with 1-18″ bearings and 1″ sleeve to fit 1″ forks)

FRAME SPECS (Expert XL and Larger):

• SEAT CLAMP: 1 1/4″
• SEAT POST: 27.2mm
• HEADSET: Integrated for all frames (1 1/8″)

GEOMETRY

Chase RSP 2.0 BMX Race Frame-Ltd Ed Blue Geometry Chart

SIZE	TT	CS	HA	SA	BB	WEIGHT
SIZE: EXPERT	TT: 19.5″	CS: 13″	HA: 73°	SA: 70°	BB: 11″	WEIGHT: 2lbs 13oz
SIZE: EXPERT XL	TT: 20″	CS: 13.5″	HA: 73°	SA: 70°	BB: 11″	WEIGHT: 3lbs 3oz
SIZE: PRO XL	TT: 21″	CS: 14.3″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5.5oz
SIZE: PRO XL PLUS	TT: 21.25″	CS: 14.5″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5.7oz
SIZE: PRO XXL	TT: 21.5″	CS: 14.5″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5.9oz
