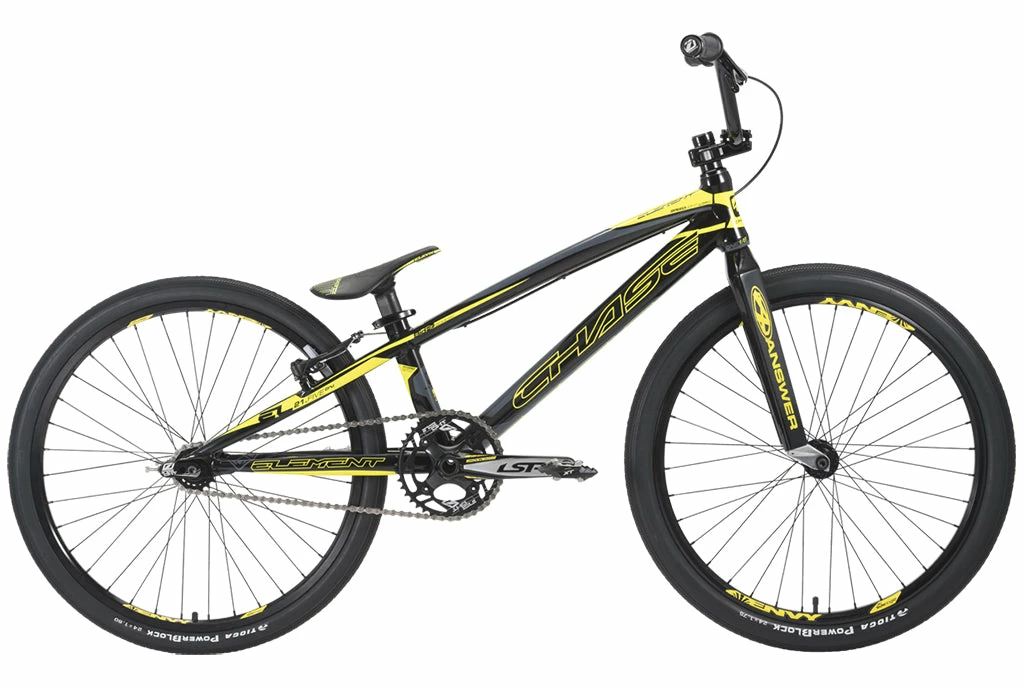

CHASE BICYCLES Chase Element Pro 24″ Bike-Black/Yellow RACE BIKES

While function is more important that fashion, the first thing you will notice about the 2019 Chase Element bike is the new Flow Graphics on the Brilliant Black Element frame that features our exclusive Aero Pivotal seat post and Aero clamping system, Hydroformed Premium Speedlite Alloy, with the Chase BIO-FIT geometry. Custom Graphics also grace the Answer Dagger Carbon Fork and the Sun Ringlé Envy rims. The Matching Elevn PC seat, the Excess LSP Cranks, and The Chase Bars with Flow Graphics makes the bike look as factory as Joris and Connor too! Next we made the bike literally faster, by adding the Tioga FASTR X tires to the Element complete. We didn’t stop there on the wheels either, as we upgraded the Rear hub with our new Triple Precise Clutch System, that has less drag while offering fast engagements and 72 points of Engagement. Other standout features include a Shimano Brakes, Insight C.O.G.S. grips, 4 Bolt Chainring Chain tensioners, and a KMC Chain.

WEIGHT : 22.13 LBS / 10,04 KG WITHOUT PEDAL
RIDER SIZE : 5’7″ – 6’1″ / 1M70 – 1M85

KEY FEATURES

FRAME : Chase Element Cruiser 21.5″ 7005 T6 Alloy
FORK : Answer Dagger Carbon Pro Cruiser 10mm
HEADSET : FSA Impact Integrated
STEM : Insight 6061 T6 50mm
HANDLEBAR : Chase Element 5.75″ cruiser
CHAINRING : Insight 41 teeth 4 Bolts 104mm
CRANKSET : Excess LSP 2 Piece Crank 180mm
HUBS : Chase Element 10mm, Triple precise Rear Hub Clutch System,
3 pawls, 72 Points of Engagement, 18T cog
RIMS :  Sun Envy Rims 24×1.75″, 36H
TIRES : Tioga PowerBlock 24X1.75″ Front & 24X1.60″ Rear
BRAKES : Shimano Alivio
SEAT : Chase Aero seat post & clamp / Elevn PC Pivotal seat

GEOMETRY

TOP TUBE: 21.5″ (546.1mm)
REAR CHAINSTAY MINIMUM: 15.25″ (387.3mm)
DROPOUT LENGTH: 1.5″ (38.1mm)
SEAT TUBE ANGLE: 69.5°
HEAD TUBE ANGLE: 73°
BOTTOM BRACKET HEIGTH: 12″ (304.8mm)

FRAME	Chase Element Pro Cruiser 21.5″ Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8″, Water Decals
FORK	Answer Dagger Carbon Pro Cruiser, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap
HEADSET	FSA Impact Integrated Sealed Bearing
HANDLEBAR	Chase Element Bar 5.75″ Rise, 11° Back Sweep & 2.5° Up Sweep
GRIPS	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Insight 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB	Outboard BB Cups BC 1.37″x68/73mm Cartridge Bearings
CHAINRING	Insight 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16″
CHAIN	KMC Z610HX 1/2″x3/32″
COG	18 Tooth
FRONT HUB	Chase Element 3/8″ Axle Hub, 36H, Sealed Bearing
REAR HUB	Chase Element 10mm Cassette Hub 36H, Sealed Bearing, Steel Cassette Body, 3 Pawls, 72 Points Of Engagement
SPOKES	14 Gauge
NIPPLES	Alloy Nipples
FRONT RIM	Sun Rims Envy Front 36H 24×1.75″ Schrader valve
REAR RIM	Sun Rims Envy Front 36H 24×1.75″ Schrader valve
FRONT TIRE	Tioga PowerBlock 24×1.75″
REAR TIRE	Tioga PowerBlock 24×1.60″
TUBES	24×1.50″-1.75″ Schrader valve
BRAKE LEVER	Shimano Alivio
BRAKE CALIPER	Shimano Alivio
SADDLE	Elevn PC Pivotal
SEAT POST	Chase Aero Pivotal 27.2x260mm Polished Alloy
SEAT CLAMP	Chase Aero QR Alloy 31.8mm
CHAIN TENSIONNER	Insight Twin Hole Laser Etched Logo
