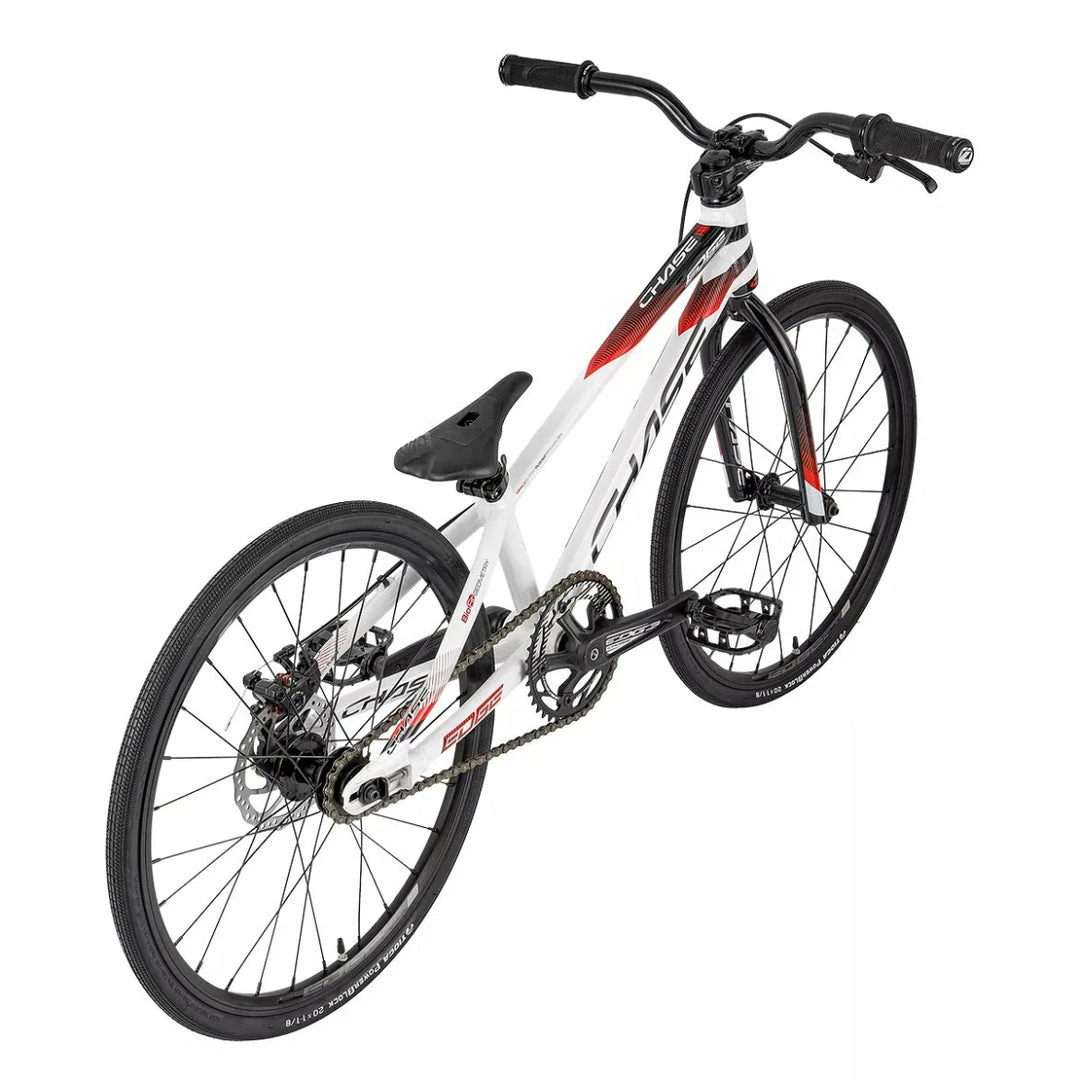

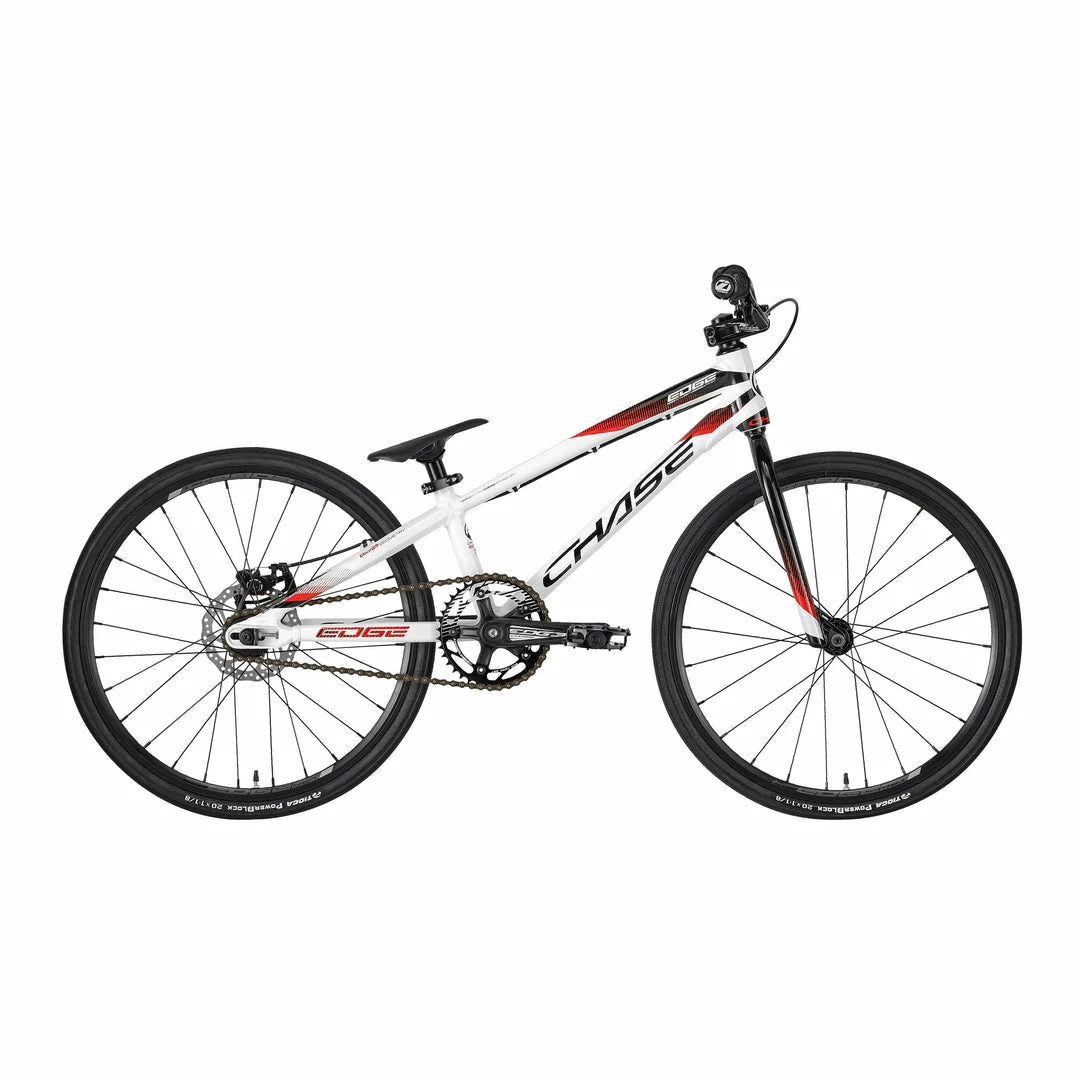

CHASE BICYCLES Chase Edge Junior BMX Race Bike-White/Red BIKES

The Chase 2022 Edge Junior BMX Race Bike-White/Red is designed and built for those riders looking to take a deeper, more serious step into racing. Chase brings all their BMX race bike design knowledge to bear in the creation of this excellently valued bike. Open the box and you’ll get a frame that is made of all hydroformed 6061 T6 alloy with integrated chain tensioners and enclosed dropouts. The fork is stiff and reliable chromoly. The bike is fitted with Chase hubs and rims with Tioga PowerBlock rubber to give you all the grip you need while ripping around the track. Rounding out the package is a next level mechanical disc brake system.

SPECIFICATION

• FRAME: CHASE Edge Junior 18.75″ Top Tube, 6061 T6 Alloy, Integrated 1″ Head Tube, Enclosed rear dropouts and Chain tensioner system
• FORK: CHASE Edge Junior Full Cr-mo, 1″ Steer Tube With Tapered Blades
• HEADSET: Integrated Sealed Bearing
• HANDLEBAR: CHASE Edge 22.2mm, 4.25″ Rise, 24″ Wide, 8° Back Sweep, 2° Up Sweep
• GRIPS: INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
• STEM: CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
• BB: 113mm Sealed Cartridge Squared BB
• CHAINRING: INSIGHT 40 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
• CRANK: CHASE Edge 3 Piece Crank 155mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
• PEDAL: Platform 9/16″
• CHAIN: KMC Z1 narrow 1/2″x3/32″
• COG: 16 Tooth
• FRONT HUB: CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing
• REAR HUB: CHASE Edge Mini ISO, 3/8″ Axle, M6 bolts, 28H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
• SPOKES: 14 Gauge
• NIPPLES: Brass 14Gx5/8″
• FRONT RIM: CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
• REAR RIM: CHASE Edge 118 Double Wall 28H 20″x1-1/8″ Presta Valve
• FRONT TIRE: TIOGA PowerBlock 20″x1-1/8″
• REAR TIRE: TIOGA PowerBlock 20″x1-1/8″
• TUBES: 20″x1-1/8″ Presta Valve
• BRAKES: Mechanical disc caliper, linear-pull lever, 140mm disc rotor
• SADDLE: INSIGHT Mini Pivotal
• SEAT POST: Pivotal 25.4x110mm Alloy
• SEAT CLAMP: CHASE Edge QR Alloy 28.6mm

GEOMETRY

Chase 2022 Edge Junior BMX Race Bike-White/Red Geometry

SIZE	TT	CS MIN	LR	AF	SA	HT	SPL	BBH	WHEELS
SIZE: Push	TT: 12.5″ (311.15 mm)	CS MIN: 8.5″ (207 mm)	LR: 1.8″ (46 mm)	AF: 70°	SA: 71°	HT: 3.35″ (85 mm)	SPL: 5.6″ (142 mm)	BBH: 6.6″ (167.6 mm)	WHEELS: 12×2.25″
SIZE: Micro	TT: 16.25″ (412.75 mm)	CS MIN: 10.85″ (275.6 mm)	LR: 1.8″ (46 mm)	AF: 71°	SA: 69°	HT: 4″ (100 mm)	SPL: 8″ (203.5 mm)	BBH: 10.25″ (254 mm)	WHEELS: 18×1″
SIZE: Mini	TT: 17.25″ (438.15 mm)	CS MIN: 12.25″ (312 mm)	LR: 1.8″ (46 mm)	AF: 72°	SA: 70°	HT: 4.33″ (110 mm)	SPL: 8.8″ (225 mm)	BBH: 10.6″ (269.2 mm)	WHEELS: 20×1-1/8″
SIZE: Junior	TT: 18.75″ (476.25 mm)	CS MIN: 12.5″ (317.5 mm)	LR: 1.8″ (46 mm)	AF: 73°	SA: 72°	HT: 4.33″ (110 mm)	SPL: 8.8″ (225 mm)	BBH: 10.6″ (269.2 mm)	WHEELS: 20×1-1/8″
SIZE: Expert	TT: 19.75″ (501.65 mm)	CS MIN: 13″ (330.2 mm)	LR: 1.8″ (46 mm)	AF: 73°	SA: 72°	HT: 4.33″ (110 mm)	SPL: 8.8″ (225 mm)	BBH: 11″ (279.4 mm)	WHEELS: 20×1-3/8″
SIZE: Expert XL	TT: 20″ (508 mm)	CS MIN: 13.5″ (353 mm)	LR: 1.8″ (46 mm)	AF: 73°	SA: 72°	HT: 4.7″ (120 mm)	SPL: 8.8″ (225 mm)	BBH: 11.5″ (292.1 mm)	WHEELS: 20×1.50″
SIZE: Pro	TT: 20.5″ (520.7 mm)	CS MIN: 14″ (355.6 mm)	LR: 1.8″ (46 mm)	AF: 74°	SA: 72°	HT: 4.7″ (120 mm)	SPL: 9.4″ (238 mm)	BBH: 11″ (279.4 mm)	WHEELS: 20×1.75″
SIZE: Pro XL	TT: 21″ (533.4 mm)	CS MIN: 14.15″ (359.4 mm)	LR: 1.8″ (46 mm)	AF: 74°	SA: 72°	HT: 4.7″ (120 mm)	SPL: 9.3″ (238 mm)	BBH: 11.5″ ()292.1 mm	WHEELS: 20×1.75″
SIZE: Pro XXL	TT: 21.5″ (546.1 mm)	CS MIN: 14.15″ (359.4 mm)	LR: 1.8″ (46 mm)	AF: 74°	SA: 72°	HT: 4.7″ (120 mm)	SPL: 9.3″ (238 mm)	BBH: 11.5″ (292.1 mm)	WHEELS: 20×1.75″
SIZE: Cruiser	TT: 21.5″ (546.1 mm)	CS MIN: 14.5″ (368.3 mm)	LR: 1.8″ (46 mm)	AF: 74°	SA: 71°	HT: 4.7″ (120 mm)	SPL: 10.6″ (270 mm)	BBH: 12″ (304.8 mm)	WHEELS: 24×1.75″
