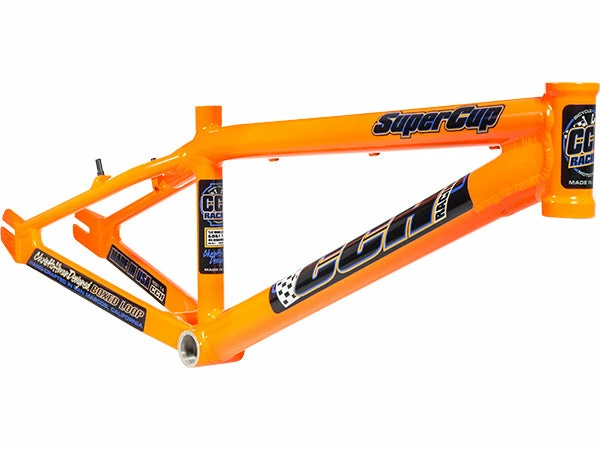

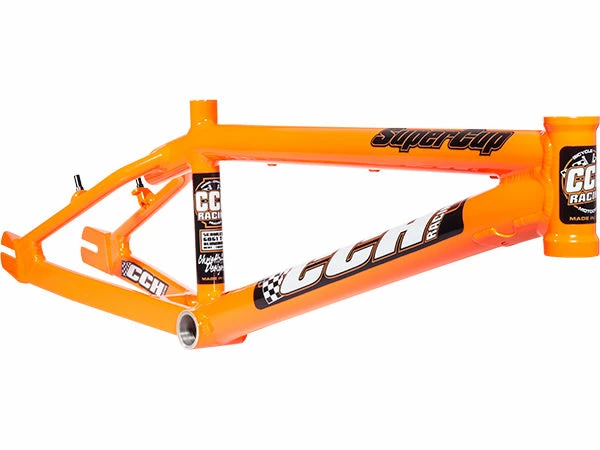

CCH Super Cup Aluminum BMX Race Frame-Fluorescent Orange

The CCH Racing Super Cup BMX race frames are U.S.A. Made from 6061 seamless aluminum tubing and heat-treated to T-6 hardness for improved strength and stiffness. The frames feature aggressive racing geometry, oversized tubing, unique CCH wishbone design, and their exclusive “closed-loop” boxed chainstay.

FEATURES

• Seamless 6061 T-6 heat-treated tubing
• U.S.A. Made
• CCH wishbone design

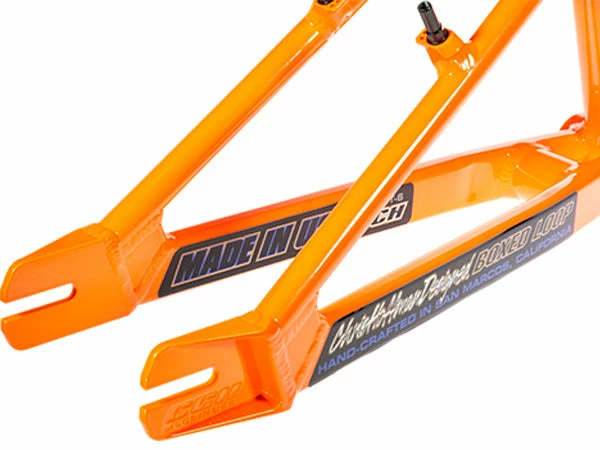

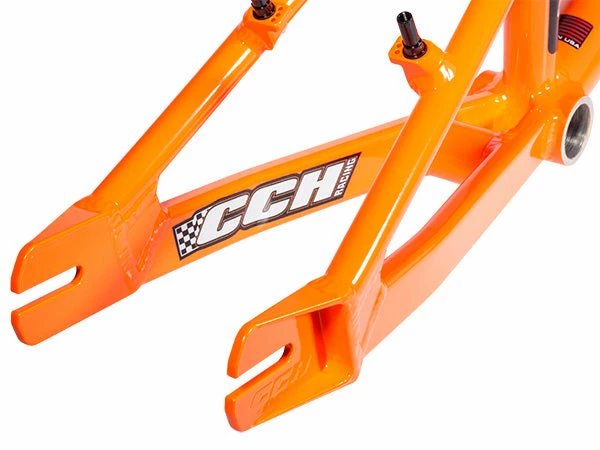

• Exclusive “closed-loop” boxed chainstay
• Aggressive race geometry

SPECIFICATIONS

• USE: Race
• MATERIAL: 6061 aluminum

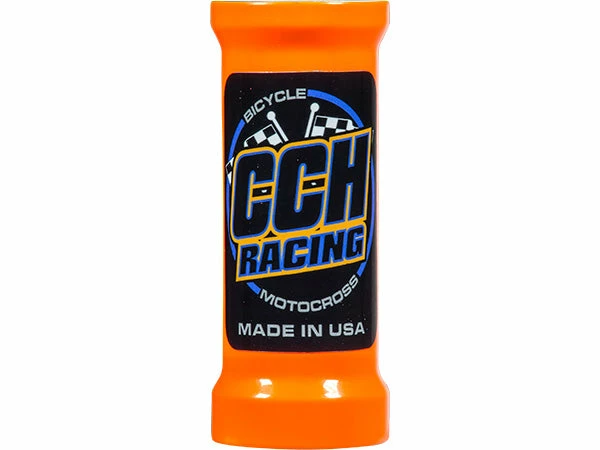

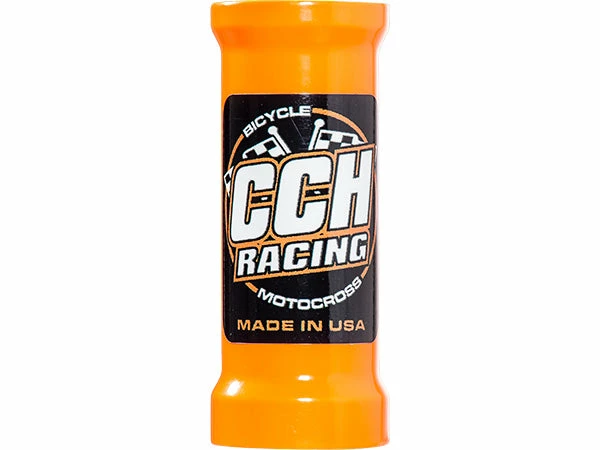

• HEADSET STYLE: 1″ standard on Junior, Integrated 1-1/8″ 45°/45° on Expert and Larger
• BRAKE MOUNTS: V-Brake
• BB SHELL: Euro

GEOMETRY

CCH Super Cup Aluminum BMX Race Frame-Fluorescent Orange Geometry Chart

SIZE	TT	CS	HS	HA	SA	SC	SP	WEIGHT
SIZE: JUNIOR	TT: 18.5″	CS: 13.75″	HS: 1″ (standard)	HA: 72.5°	SA: 70°	SC: 1″ (25.4mm)	SP: 22.2mm	WEIGHT: 2.65lbs/1.2kg
SIZE: EXPERT	TT: 19.5″	CS: 14″	HS: 1-1/8″ (integrated)	HA: 73°	SA: 71°	SC: 1″ (25.4mm)	SP: 22.2mm	WEIGHT: 3lbs/1.36kg
SIZE:EXPERT XL	TT: 20″	CS: 14″	HS: 1-1/8″ (integrated)	HA: 73°	SA: 71°	SC: 1″ (25.4mm)	SP: 22.2mm	WEIGHT: 3.1lbs/1.4kg
SIZE: PRO	TT: 21″	CS: 14.75″	HS: 1-1/8″ (integrated)	HA: 74.5°	SA: 71°	SC: 1-1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3.7lbs/1.68kg
SIZE: PRO XL	TT: 21.5″	CS: 14.75″	HS: 1-1/8″ (integrated)	HA: 74.5°	SA: 71°	SC: 1-1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3.8lbs/1.72kg
SIZE: PRO XXL	TT: 22″	CS: 14.75″	HS: 1-1/8″ (integrated)	HA: 74.5°	SA: 71°	SC: 1-1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 3.9lbs/1.77kg
SIZE: PRO XL 24″	TT: 21.5″	CS: 15.75″	HS: 1-1/8″ (integrated)	HA: 73.5°	SA: 71°	SC: 1-1/4″ (31.8mm)	SP: 27.2mm	WEIGHT: 4lbs/1.81kg
