BIKES Meybo Holeshot Expert BMX Race Bike-Black/White/Grey/Orange

Right out of the box the Meybo Holeshot Expert BMX Race Bike-Black/White/Grey/Orange is second to none in its price range. When Meybo, Box, and SD are the building blocks of your bike you just know good things will come. This awesomeness of a bike features a Box One XL carbon fork and more SD parts than I can count. There’s the SD Bengal hydraulic disc brake system, SD Ace Cassette rear disc hub, and a 5-hole, 160mm SD Pro Crankset. All of this rides on a pair of pack-leading Tioga Powerblock tires.

SPECIFICATIONS

• FRAME: Meybo Holeshot Expert
• FORK: BOX One XL carbon fork 1 1/8″ 10mm
• HEADSET: FSA Sealed Full Integrated 1 1/8″
• HANDLEBAR: SD Alloy Expert Handlebar
• STEM: SD Stem 11/8” 40mm
• GRIPS: SD 130 mm lock on grips
• BRAKE LEVER: SD Bengal Hydraulic Lever
• BRAKE: SD Bengal Hydraulic Caliper
• DISC: SD Wave Disc 120mm
• FRONT HUB: SD Ace Expert Hub 36H 8mm bolts
• REAR HUB: SD Ace Cassette Disc Hub 36H 6 Pawls 180 clicks 8mm bolts
• SPOKES: Spokes Black
• NIPPLES: Nipples Alloy Black
• FRONT RIM: SD 20x 1 3/8 Double Wall – Eyelets
• REAR RIM: SD 20x 1 3/8 Double Wall – Eyelets
• FRONT TIRE: Tioga Powerblock 20x 1 3/8 60TPI
• REAR TIRE: Tioga Powerblock 20x 1 3/8 60TPI
• SEAT: Box Two mini seat 25,4 black
• SEAT CLAMP: SD qr clamp 28,6 black
• CRANKSET: SD expert lite 5hole, outboard bearings 160mm
• BRACKET: SD hollow 24mm, outboard bearings
• PEDALS: Wellgo LU-204 platform
• FRONT SPROCKET: Chainring 5 Hole 39T Black
• REAR SPROCKET: Cog 16T Silver
• CHAINRING BOLTS: Black Steel
• CHAIN: KMC X1 3/32 Silver
• CHAINTENSIONERS: Meybo Integrated

GEOMETRY

• TOP TUBE RIDER AREA: 19.68″
• DOWN TUBE: 20.87″
• CHAINTSTAY: 13.58″
• HEAD TUBE ANGLE: 73.5°
• SEAT POST ANGLE: 71.0°
• HEAD TUBE SIZE FULL INTEGRATED: 1 1/8″
• SEAT POST SIZE: 25.4 mm
• DROPOUT: 10 mm
• BRACKET: EU
• WEIGHT: 7600 Gram

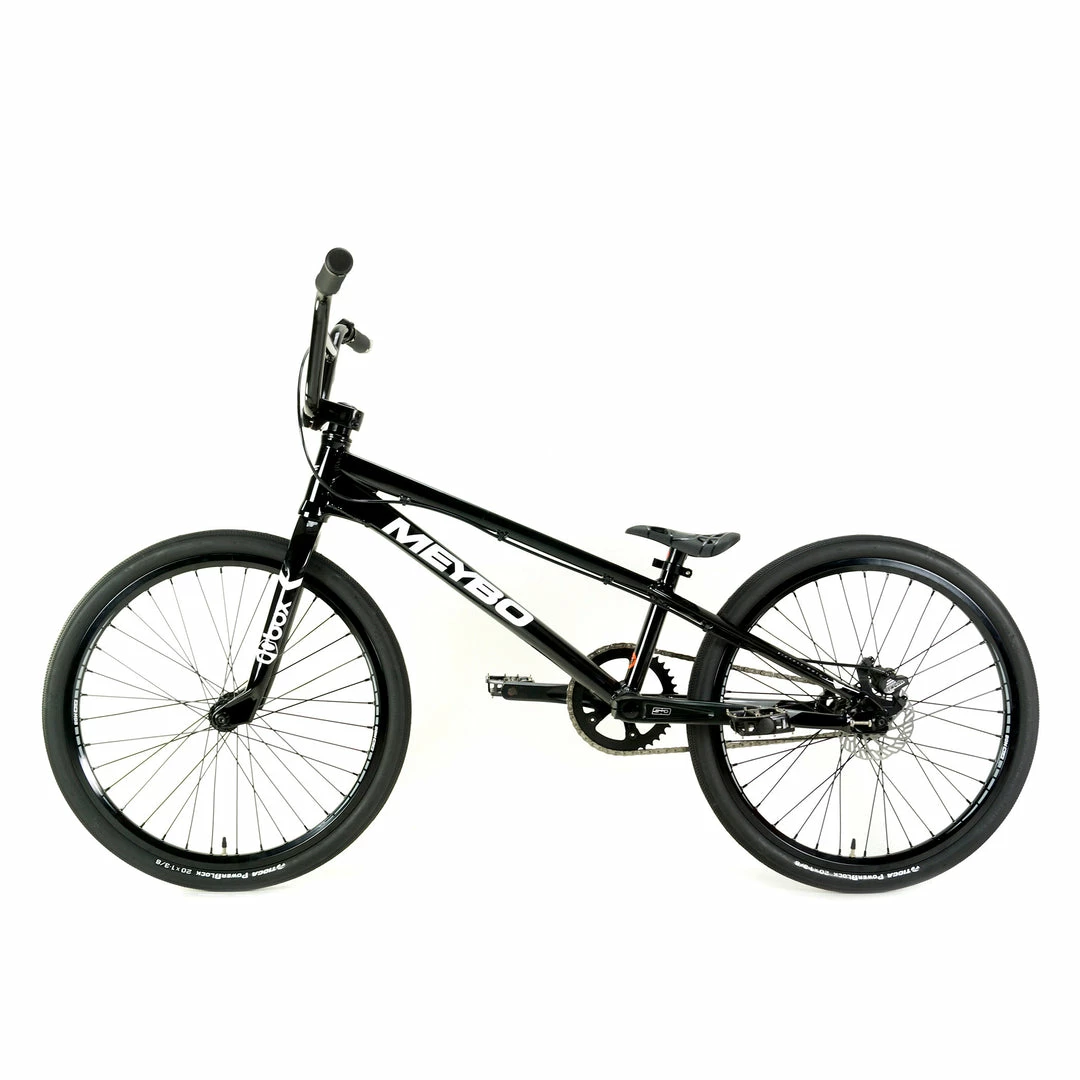

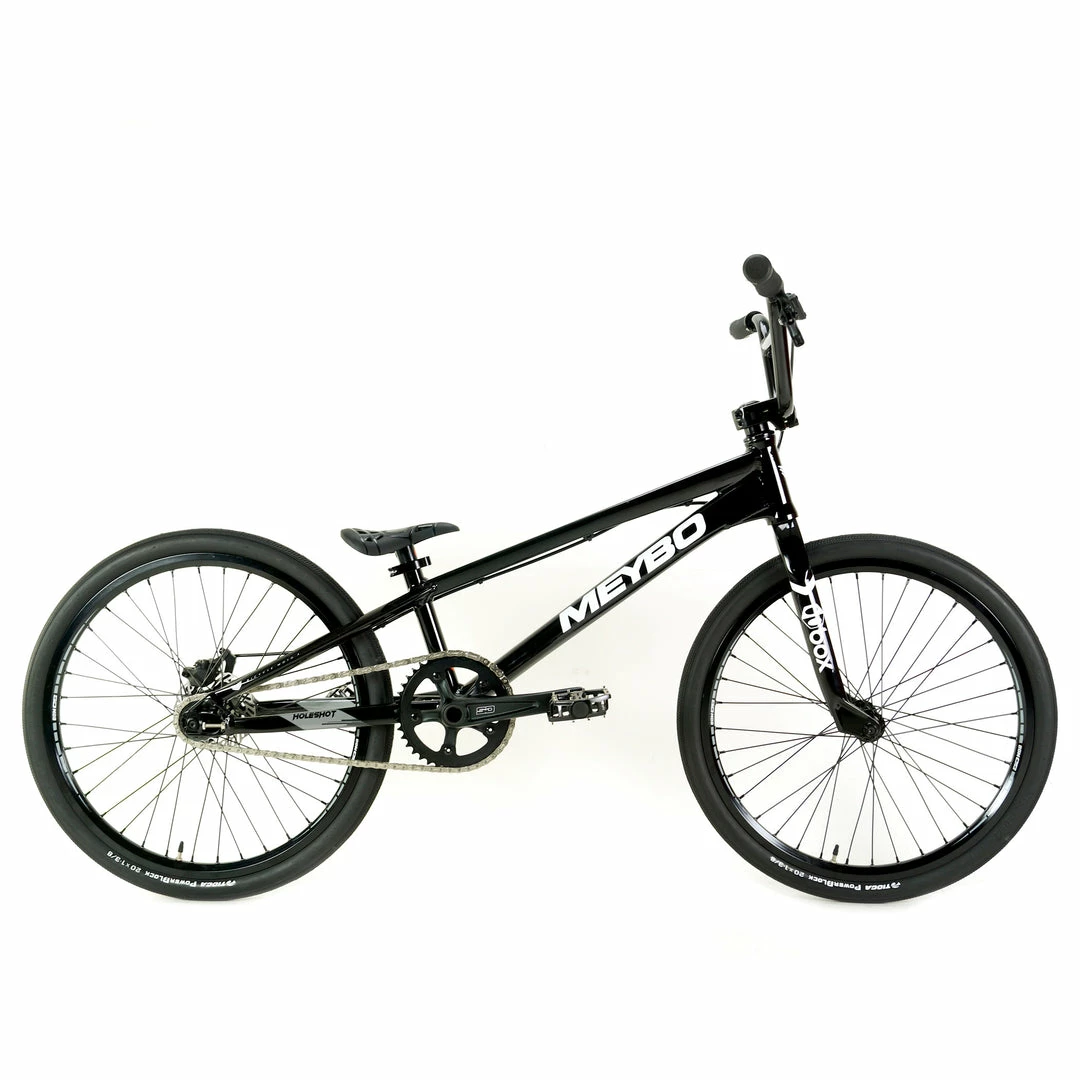

IMAGE NOTE: The image shown is the Expert XL size. You will be getting the Expert size when you purchase.
