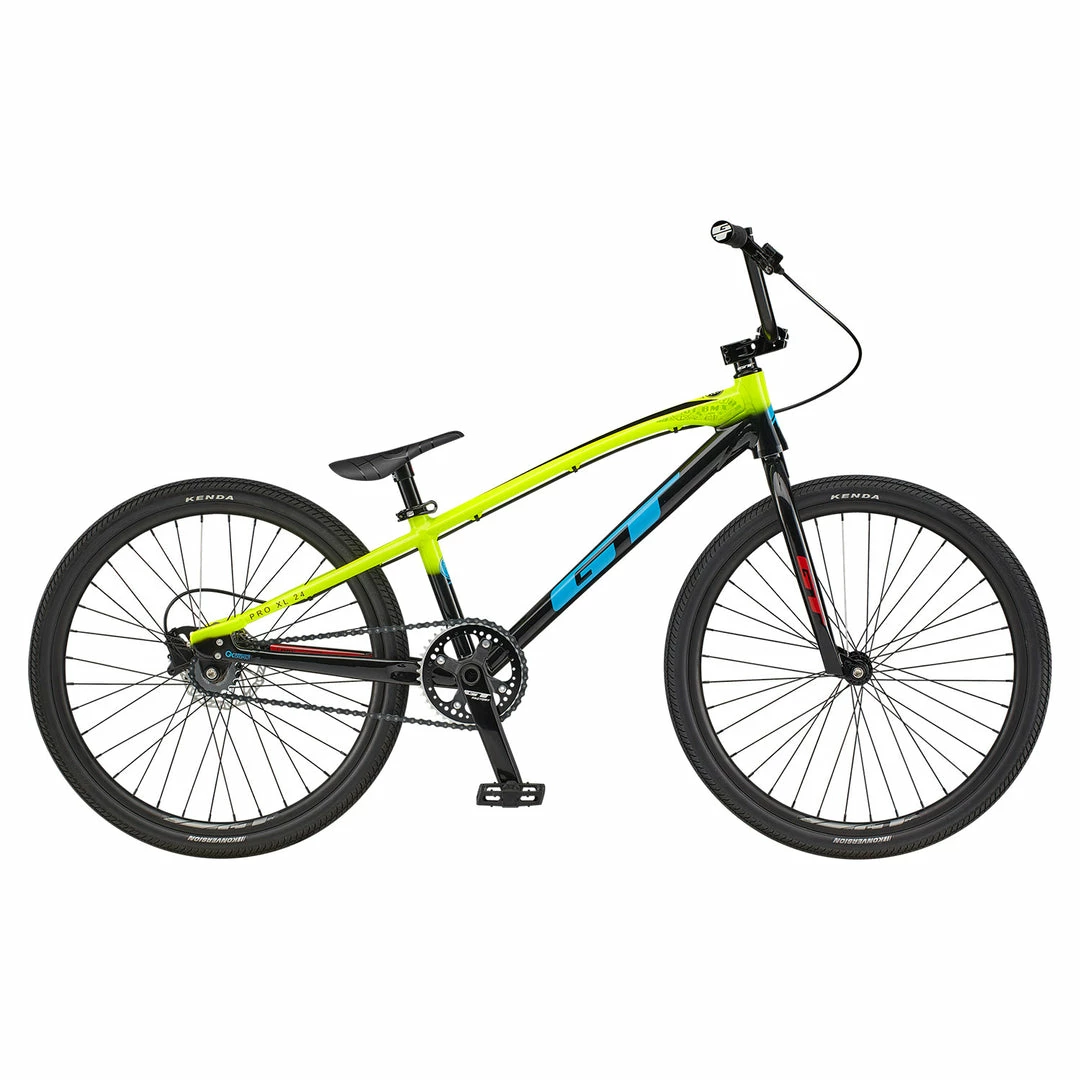

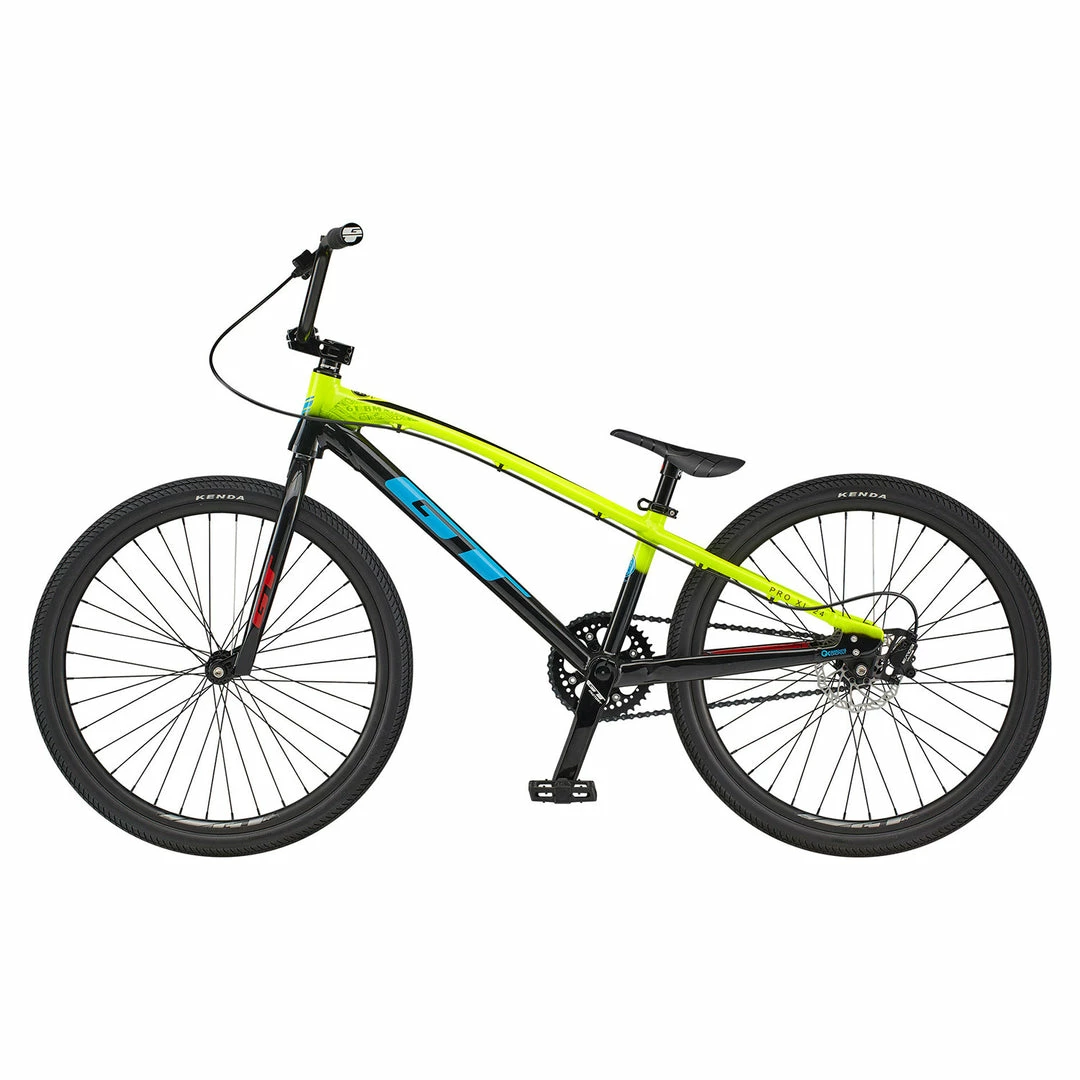

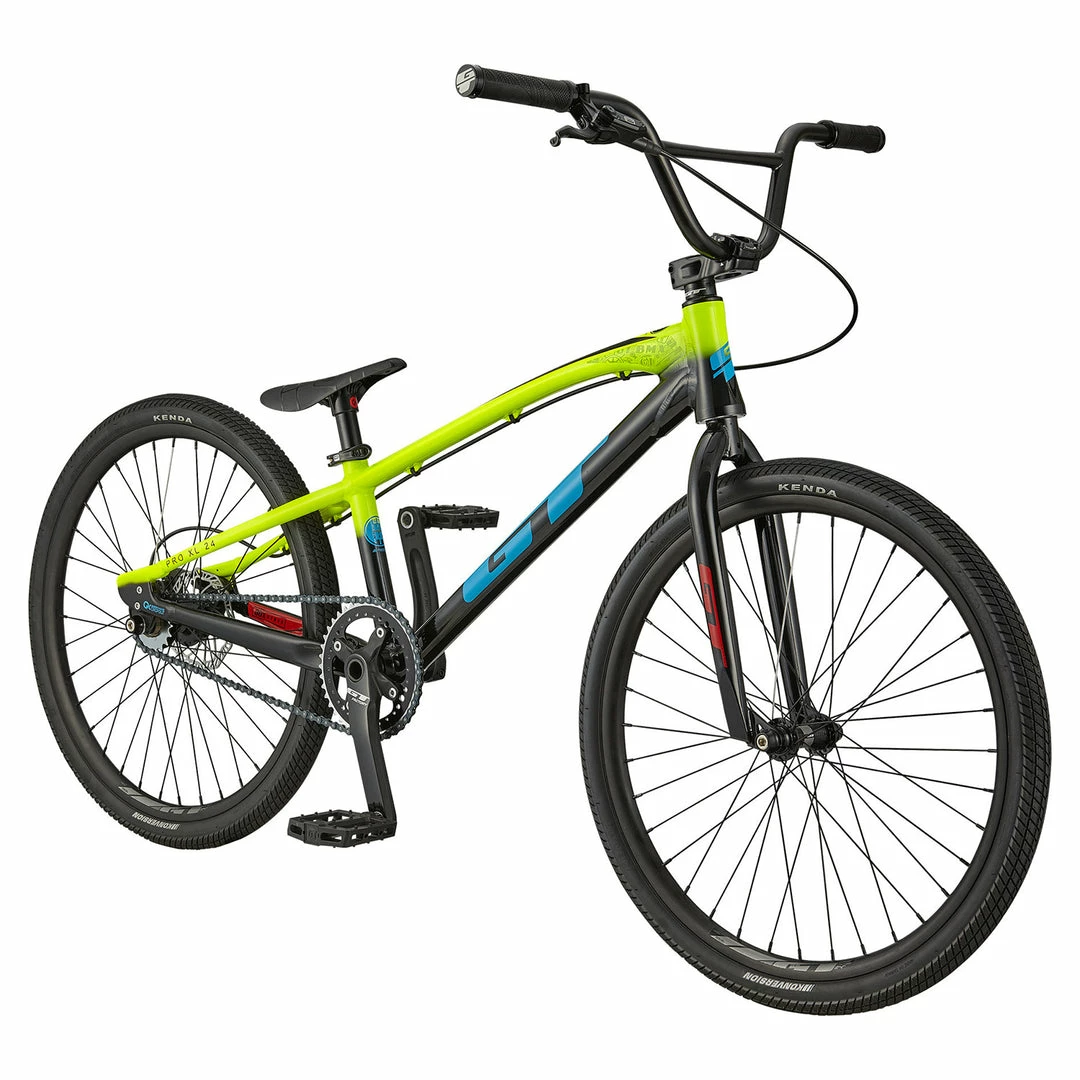

BIKES GT Speed Series Pro Cruiser 24″ BMX Race Bike-Nuclear Yellow

A lightweight, stiff frame to help you get the holeshot and take the win. The Speed Series 24″ is the cruiser in the lineup. Keeping all the high end, stiff and strong components and adding some 24″ wheels you’ll be ready for the cruiser class. Ideal for age 14 & up.

FEATURES

• GT Pro Race Cr-Mo Fork with 1-1/8” Steerer Tube 20mm Dropout
• GT SpeedSeries Elite Race Frame with Speed Metal Tubes
• BB86 Bottom Bracket

SPECIFICATIONS

• SIZES: PRO XL
• FRAME: GT Speed Series MK7 Elite Race Design, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, AL CNC/Forged Quick Change Disc Dropout SyStem, BB86, Taper 1-1/8″ to 1-1/2″ Integrated H/T
• FORK: GT BMX Pro Race, 100% Cr-Mo 1 1/8″ Steerer, Tapered Legs, 3/8″ Dropouts
• CHAIN: KMC Z1 Narrow, 3/32″
• CRANK: GT Forged Alloy 2pc., 180mm Arms, 24mm Hollow/ Cr-Mo Spindle, 41T AL CNC Chain Ring, Alloy Chain Ring Bolts
• BOTTOM BRACKET: Sealed BB86
• PEDALS: GT Low Profile FS Platform Design
• COG SET: 18T Cog
• RIMS: Alloy Double Wall, 36h
• TIRES: Kenda Konversion Pro Race, 24 x 1.75″
• FRONT HUB: GT Speed Series, Alloy CNC Body, Sealed Bearings, 28h, 3/8″ Female Allen Bolts
• REAR HUB: GT Speed Series Disc Cassette, Alloy CNC body, 4 Sealed Bearings, 6 Pawl 72point Alloy Shimano Cassette, 36h, 3/8″ Female Allen Bolts w/ Alloy Washers
• SPOKES: Stainless Steel, 14g
• BRAKES: Promax Hydro Disc Rear, 140mm Rotor (Rear Only)
• FRONT BRAKE: Promax Hydro Disc Rear, 140mm Rotor (Rear Only)
• REAR BRAKE: Promax Hydro Disc Rear, 140mm Rotor (Rear Only)
• BRAKE LEVERS: Alloy, 2 Finger
• HANDLEBAR: GT Speed Cr-Mo 8.375″H x 29″W, 8° Sweep, 4° Up, Taper Cross Bar
• STEM: Promax Impact Top Load, 53mm
• GRIPS: GT Statement Double Lock-on Grips
• HEADSET: 1-1/8″-1.5″ Taper Integrated Design, 45X45 Degree Sealed Bearings
• SADDLE: BOX Echelon
• SEAT POST: Integrated

GEOMETRY

• A. SEAT TUBE LENGTH: 10.6
• B. TOP TUBE ACTUAL: 21.75
• C. HEAD TUBE ANGLE: 73.0°
• D. SEAT TUBE ANGLE: 70°
• E. HEAD TUBE LENGTH: 5
• F. WHEELBASE: 39
• G. FRONT CENTER: 23.5
• H. CHAIN STAY LENGTH: 15.43
• I. BB DROP: 0
• J. BB HEIGHT: 12
• K. FORK RAKE: 1.3
• L. SEAT POST DIAMETER: 27.2mm
• M. AXLE TO CROWN: 14.3
