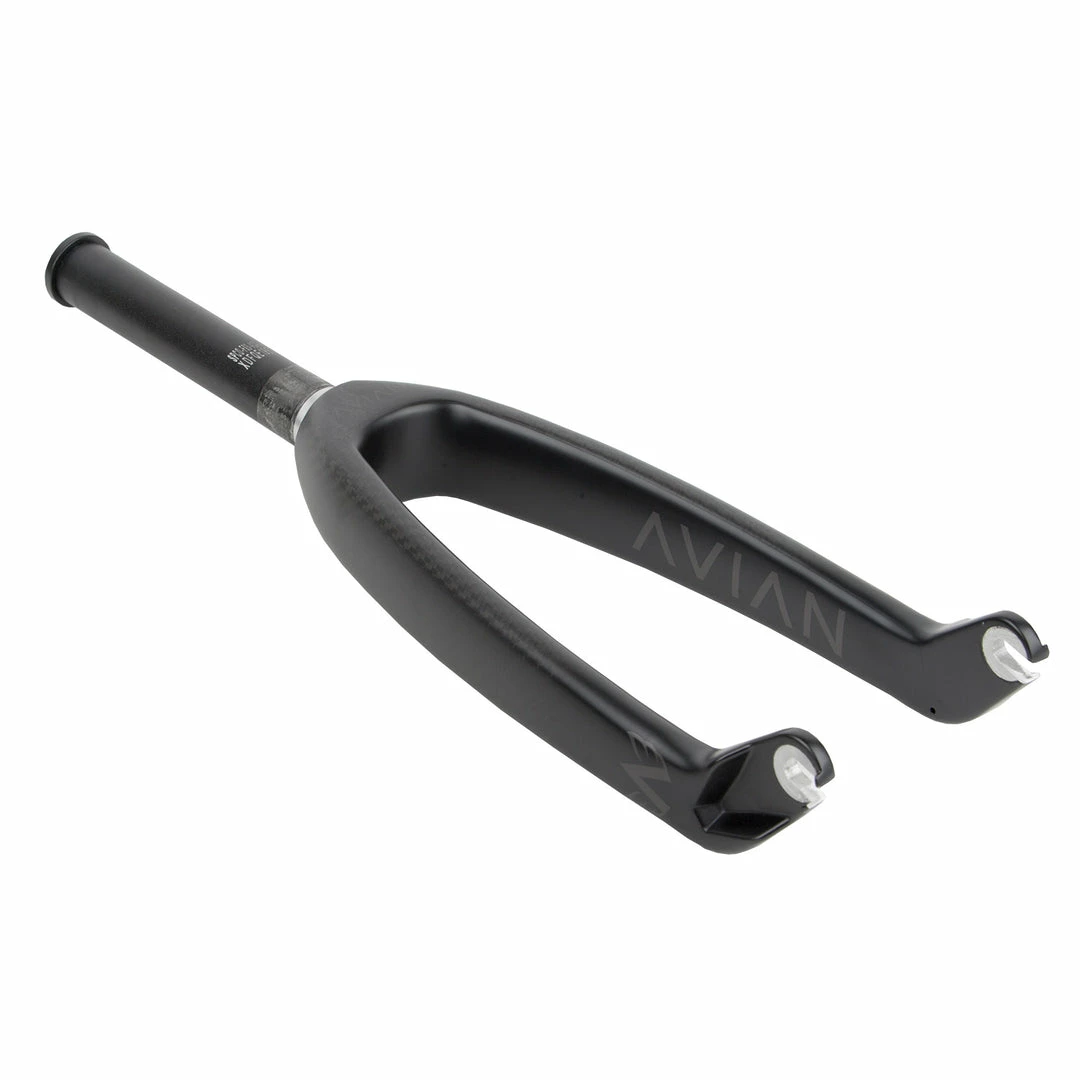

Avian Versus Pro Carbon Fork-20″x1 1/8″-10mm

The Versus steerer tube is made of 4mm thick 7005 aluminum and features an M10 thread internal locking system to eliminate expander plugs and star nuts that often compromise fork strength. The aero carbon fiber legs are made of highly durable Toray fiber, and the alloy drop-outs.

SPECIFICATIONS

• 4mm thick 7005 steerer tube
• Toray carbon fiber legs
• Internal locking system
• 170mm steerer tube length
• 303mm axle-to-crown (20″)
• 32mm drop-out offset
• 10mm
• Matte Black or Gloss Black options
• 18.45oz (with stem-lock and top cap)

The Versus Pro Carbon Fork is compatible with BMX racing frames that do not have a tapered head-tube. Although with the right bearing race, this fork is compatible with a tapered head tube, it is highly suggested that you would use our Versus Tapered fork model.

Important Torque Spec Info:

Please use a torque wrench when installing this fork onto the bike. The fork’s integrated locking system has an alloy bolt/head, so if it’s over-tightened then you will strip it. Tighten between 4-5Nm is fine, but do not exceed 5.5Nm.
